Specifications
Applicable Industries :
Manufacturing Plant, Construction works
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Motor
Condition :
New
Place of Origin :
Jiangsu, China
Brand Name :
WINCOO
Dimensions :
24*33*31 cm
Weight :
16
Use :
Pipe welding machine
Voltage :
220V
Warranty :
1 Year
Key Selling Points :
Long Service Life
Weight (KG) :
16 KG
Product name :
Orbital Welding Machine
Welding method :
Automation TIG Welding
Application :
Pipe construction
Shape of tube :
Round
After-sales Service :
Video technical support
Moving mode :
Four-wheel drive
Walking speed :
0-700mm/min
Swing motor :
DC24V 18RPM
Packaging Details :
carton
Supply Ability :
3000 Set/Sets per Month
Price :
$4,120.00/sets 1-99 sets
Description

WINCOO ENGINEERING CO.,LTD

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.

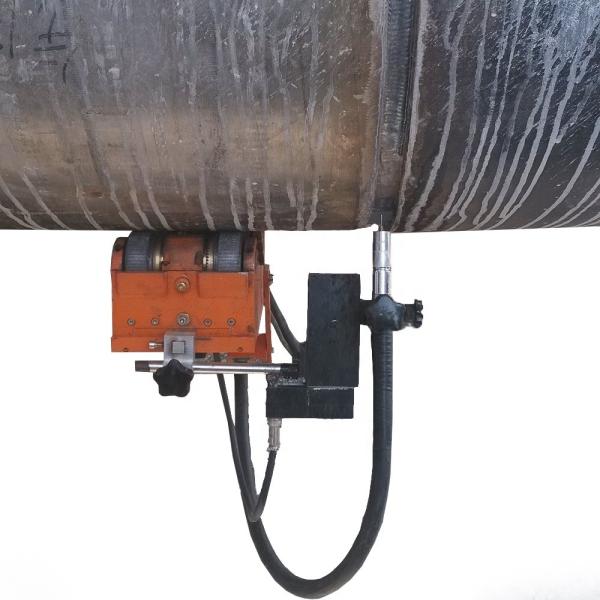

220V Magnetic Type Automatic Steel Pipe Welding Machine for Pipeline Construction

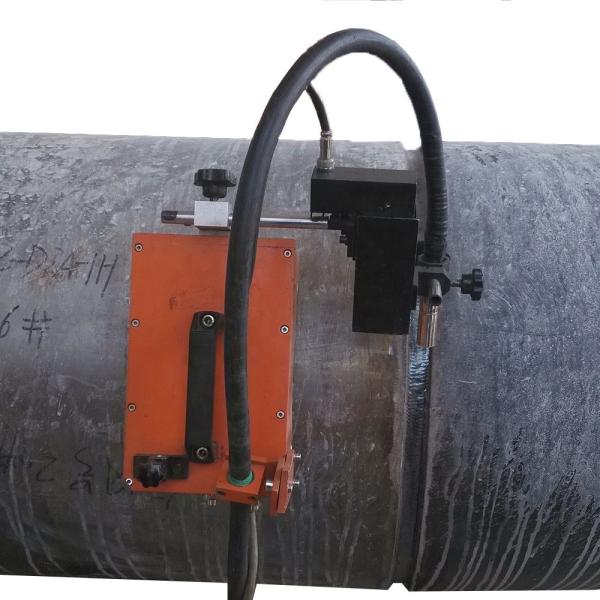

220V Magnetic Type Automatic Steel Pipe Welding Machine for Pipeline Construction

Electric type

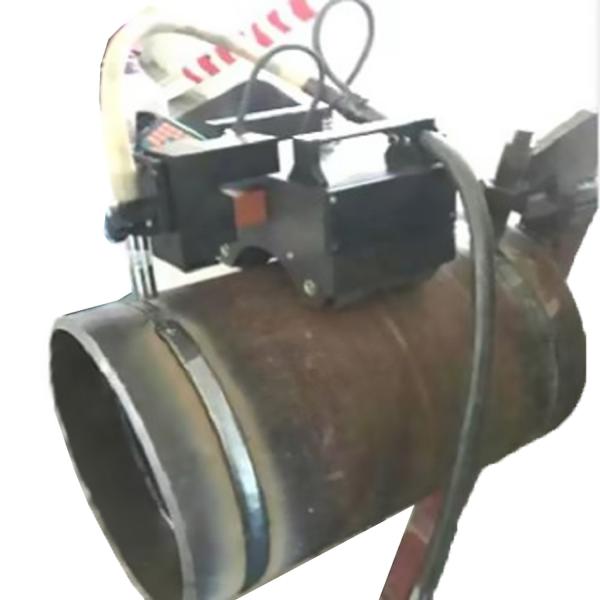

220V Magnetic Type Automatic Steel Pipe Welding Machine for Pipeline Construction

Manual type

Product Introduction

WQ-III is suitable for welding internal and external walls of pipelines. No rails are required and welding can be carried out along the arc surface of the workpiece.

CO2 automatic welding tractor is widely used in ships, bridges, locomotives, steel structure, petrochemical industry and other industries, suitable for a variety of welding structures, such as: reinforcement plate, rib plate, cross parts of the welding, box beam welding, etc.. Its main advantages are:
1, Reduce labor intensity and improve working environment;
2, To improve the working efficiency, it is 1.5 times of manual welding;
3, Avoid the poor quality of welding seam caused by human factors, the defect rate of manual welding is about 20%, and the automatic welding tractor will not produce welding defect rate because of artificial welding. Therefore, its comprehensive benefit is nearly 200% higher than that of manual welding;
4, High degree of automation to ensure the stability of welding quality;
5, Simple and convenient operation, do not need very skilled technical workers.

Product Features

1, WQ-III is swing automatic welding device, one welding can get a wider weld.
2, Swing speed, swing range, center position and left and right residence time can be adjusted, suitable for various specifications of the weld.
3, Small size, light weight, easy to install and move, unskilled workers can also carry out welding.
4, Permanent magnet is installed to avoid welding line disconnection during welding.

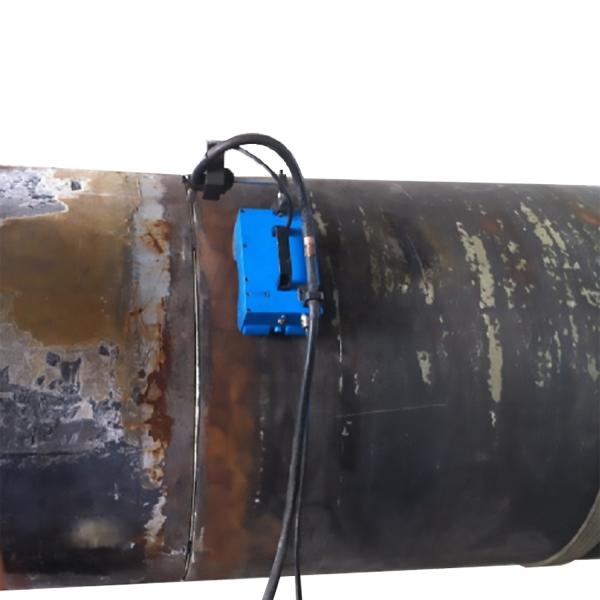

220V Magnetic Type Automatic Steel Pipe Welding Machine for Pipeline Construction
Application Environment
Suitable for pipe welding of various steel structures.

Major Components

Components: welding gun swing device, slider, welding gun handle, control box, control panel and other accessories:
1, Swing device: used to drive the welding gun for pendulum swing welding
2. Driving part: the driving device of the trolley is composed of four magnetic wheels, helical gears, chains and sprockets
3, Slider part: used to adjust the position of the welding gun, you can fine-tune the position before and after when welding.
4, welding gun fixture: welding gun clamping device, it can adjust the Angle of the welding gun.
5, control box: All movements of the tractor can be adjusted. For details, refer to the operation method of the control panel
220V Magnetic Type Automatic Steel Pipe Welding Machine for Pipeline Construction
Control Panel Introduction
1, Knob for adjusting current and voltage: Turn the knob clockwise to increase the value (The tractor has two power plugs of 3P and 8P, when using 3P plug, the current and voltage adjustment knob is invalid, and then the current and voltage of the wire feeder must be adjusted; Current and voltage control knob is effective when using 8P plug);
2, Selection knob for welding/non-welding: the knob must be in the welding position to weld;
3, Point feed: manual wire feed device;
4, Walking switch: control the car walking and stopping, if the "welding/non-welding" switch is placed in the "non-welding" position, open the walking switch, the tractor only walking without welding;
5, Walking speed adjustment: the adjusting knob of tractor walking speed. It is recommended to adjust the tractor walking speed after turning on the walking switch;
6, Choice of walking direction: choose to walk left or right;
7, Power switch and indicator light: the indicator light is on after the power is energized;
8, Swing control part: it can adjust swing speed, swing range, left and right stay time, center position and swing mode;
Product Parameters
Items
Parameter
Note
Tractor
Power supply
AC 220V
Size
240×330×310 mm
W×L×H
Weight
16 Kg
Including swinger
Moving mode
Four-wheel drive
Magnet-wheel
Walking speed
0∼700mm/min
Control
Swing motor
DC24V 18RPM
Adjustable range of welding gun
Up and down
Before and after
85mm
Operating Angle adjustment range
360°
Carry out Angle adjustment range
0°
Operating function
Swing mode
Swing speed
0-10RPM(Show with scale)
Swing scope
0-±10°(Show with scale)
Left and right residence time adjustment
0-2S(Show with scale)
Central range of movement
0-±8°
Inching wire feeding
Walking starts/stops
Welding current/voltage control
Choice of walking direction
Walking speed regulation
0∼1000mm/min(Show with scale)
Welding/non-welding options
Installation and Packing List

A. Preparation for welding

1, The necessary tools for welding are welding machines and wire feeding devices;
2, Special control cables (AC 220V) are required. Different welding power supplies require different cables;
3, CO2 tanks for welding are required;
4, CO2 automatic welding torch;
5, Other necessary tools;

B. Tractor connection method

1, Install the tractor and place the tractor on the working surface;
2, Install the wire on the wire feed tray and pull the wire to the end of the torch;
3, The end of the torch is connected to the wire feeder;
4, The control power supply is connected to the 8P port of the control panel of the tractor;
5, Control power cable is connected to AC 220;
6, The special control cable has four joints, one is connected to 220V power supply, the other is connected to welding car, and the other two are respectively welding machine and wire transfer machine.
C. Packing List
Parts name
Qty
Unit
Note
Walking welding tractor
1
Set
Swinging nose
1
Set
Power line
1
Pcs
About 10-15 m
Welding torch signal cable
1
Pcs
About 0.5 m
Swing signal line
1
Pcs
About 0.5 m
Specification
1
Pcs
Inner hexagon tool
1
Set
Product Photos
220V Magnetic Type Automatic Steel Pipe Welding Machine for Pipeline Construction
220V Magnetic Type Automatic Steel Pipe Welding Machine for Pipeline Construction
220V Magnetic Type Automatic Steel Pipe Welding Machine for Pipeline Construction
220V Magnetic Type Automatic Steel Pipe Welding Machine for Pipeline Construction
220V Magnetic Type Automatic Steel Pipe Welding Machine for Pipeline Construction
220V Magnetic Type Automatic Steel Pipe Welding Machine for Pipeline Construction
220V Magnetic Type Automatic Steel Pipe Welding Machine for Pipeline Construction
220V Magnetic Type Automatic Steel Pipe Welding Machine for Pipeline Construction
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.

Our Services & Strength
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.

Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.

To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
