Specifications
Model NO. :
LYT
Max Height :
0-4600mm
Certification :
CE, ISO 9001:2000
Condition :
New
Keywords :
Tank Jacking System
Rated Lifting Capacity :
300 Kn
Chain Stroke :
2700 mm
Rated Pressure :
25 MPa
Transport Package :
Container
Specification :
Steel
Trademark :
WINCOO
Origin :
China
HS Code :
8425421000
Supply Ability :
5000
After-sales Service :
Remote Instruction
Warranty :
90 Days
Type :
Hydraulic Jack
Structure :
Hydraulic Jack
Capacity (Load) :
12-120t
Power Source :
Hydraulic
Customization :
Available | Customized Request
Description
Max Height 0-4600mm Tank Jacking System for Automatic Hydraulic Jacking Equipment 2 Meter

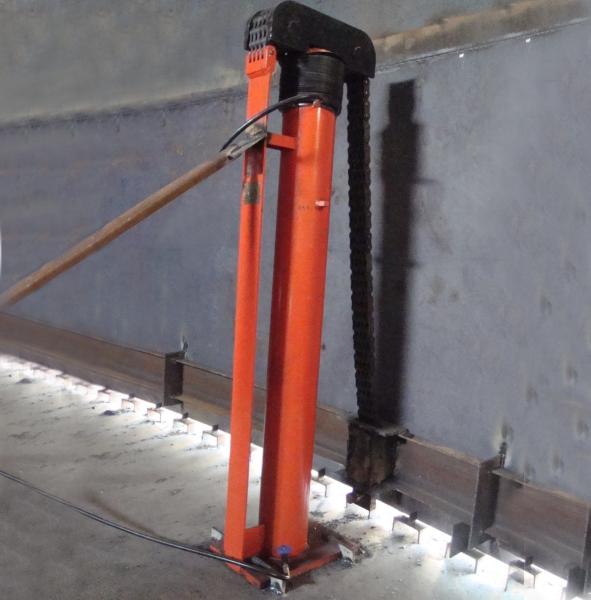

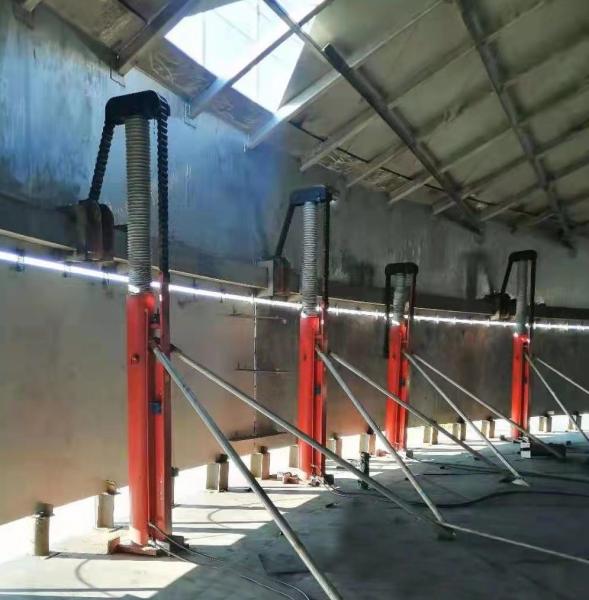

LYT-type hydraulic jacks is composed of one-stage double-acting hydraulic cylinder, pulley block, load-bearing chain and oil way etc. Moveable pulley is used to enlarge chain stroke, i.e. traveling distance of the cylinder is 1/2 of lifting distance of the chain. It applies to inverted installation and construction of various large storage tanks (steel) and various storage tanks.

LYT-type chain-type hydraulic hoist includes the following models: LYT-120-2700, LYT-200-2700, and LYT-300-2700 etc. (those with special stroke need to be customized).Max Height 0-4600mm Tank Jacking System for Automatic Hydraulic Jacking Equipment 2 MeterTechnical Parameter

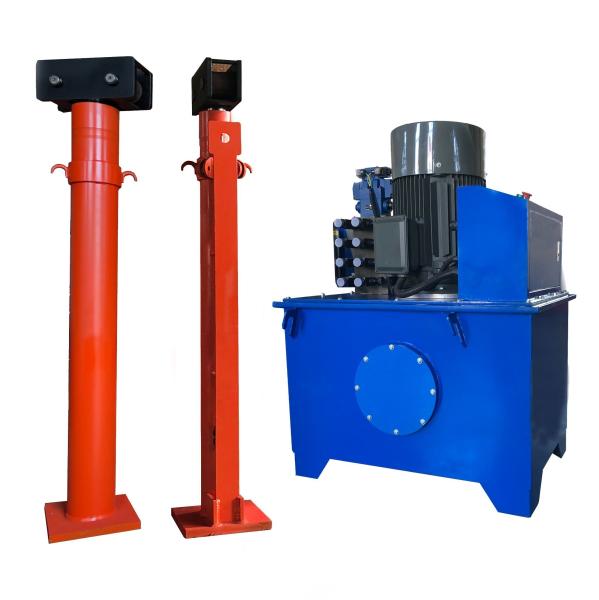

1.Technical performance parameters of hydraulic pump station

Model Tank volume Rated pressure Rated flow Power Control voltage of solenoid valve Motor drive rate
YB-7.2 220L(700*550*580) 25Mpa 7.2L/min Three-phase Four-wire (380V) 220V 5.5kw
YB-14.5 340L(750*650*650) 25Mpa 14.5L/min 220V 7.5kw

2.Technical performance parameters of the hoist

Model Rated lifting capacity (KN) Hydraulic area (mm) Rated oil pressure (MPa) Piston stroke (mm) Chain stroke (mm) Cylinder safety equipment Reinforcement measures
LYT-120-2700 120 11304 25 1500 2700 Double-direction oil-way hydraulic lock 2 adjustable pull rods
LYT-200-2700 200 18859.6 25 1500 2700
LYT-300-2700 300 25434 25 1500 2700

Max Height 0-4600mm Tank Jacking System for Automatic Hydraulic Jacking Equipment 2 Meter1. Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.
2. We can provide all technical documents and advices to support you for construction procedure clearifications
3. We can calculate the most suitable number of hydraulic jack according to the weight of the tank
4. We can provide your suitable hydraulic jack accessories with much more competetive price from our long time business partner if you need.
5. We can provide site people training service, and operation service or manpower service or as a subcontractor.
Max Height 0-4600mm Tank Jacking System for Automatic Hydraulic Jacking Equipment 2 MeterMax Height 0-4600mm Tank Jacking System for Automatic Hydraulic Jacking Equipment 2 Meter
