PM6100 handheld bluetooth portable 7 inch multiparameter patient monitor
PM6100 handheld bluetooth portable 7 inch multiparameter patient monitor
PM6100 handheld bluetooth portable 7 inch multiparameter patient monitor
PM6100 handheld bluetooth portable 7 inch multiparameter patient monitor
PM6100 handheld bluetooth portable 7 inch multiparameter patient monitor
PM6100 handheld bluetooth portable 7 inch multiparameter patient monitor
PM6100 handheld bluetooth portable 7 inch multiparameter patient monitor
PM6100 handheld bluetooth portable 7 inch multiparameter patient monitor
Specifications
Brand Name :
huge
Model Number :
PM6100
Certification :
CE
Place of Origin :
Guangdong
MOQ :
1
Price :
220-250USD
Payment Terms :
Paypal,T/T, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
1-3 days after payment confirmed
Packaging Details :
Standard color box
Product name :
bluetooth patient monitor
size :
mini
style :
portable
feature :
bluetooth function
Color :
black
Description

PM6100 handheld bluetooth portable 7 inch multiparameter patient monitor

Quick Details

Model Number:PM6100

Color:White and black

Certificate:ISO13485, CE in Progress

Function:Detecting Body Health

Parameters:SpO2, PR, NIBP, ECG, TEMP, RESP

Display:TFT LCD display

Weight:1kg

Size:23cm*16cm*10cm

User:Adult/Children/Infants

PM6100 handheld bluetooth portable 7 inch multiparameter patient monitor

PM6100 handheld bluetooth portable 7 inch multiparameter patient monitor

PM6100 handheld bluetooth portable 7 inch multiparameter patient monitor

PM6100 handheld bluetooth portable 7 inch multiparameter patient monitor

Feature

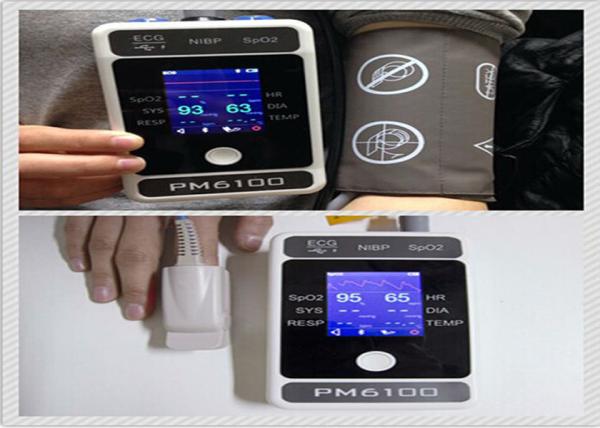

This monitor integrates the functions of parameter measurement,waveform monitoring, etc.Its color TFT liquid crystal display is able to show patient parameters and waveform clearly. The monitor also features compact size,lightweight,easy-to-carry handle and built-in battery,which make it portable in clinic,ward,even at home.

This monitor is capable of monitoring parameters: ECG(Eletrocardiograph), HR(heart rate), NIBP(noninvasive blood pressure), Spo2, PR(Pulse rate), TEMP(body temperature).

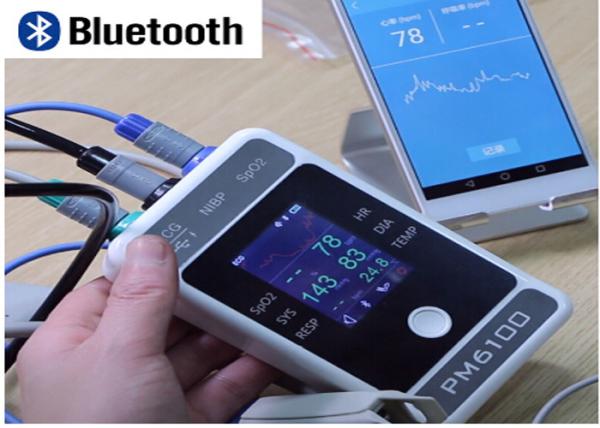

The One-Button-Design make the monitor to be a easy-to-use system,so you can perform the operations conveniently.Besides,this monitor can be connected with the other smart terminals such as PC,iphone and Android phones.

SPECIFICATION

Operation system Android
ECG

Waveform: Lead I

Band width 0.05Hz-100Hz(3dB) diagnose mode

1-40Hz monitor mode

0.1-25Hz operation mode
Resp

Chest impedance method

Scope: 0 bpm to 100bpm

Accuracy: ±1bmp
Temp

Type: Vascular/surface temperature

Scope: 20℃-50℃

Accuracy: ±0.2℃
NIBP

Detection scope:

Systolic blood pressure: 4kPa-34kPa(30-255mmHg)

Diastolic pressure: 2kPa-29.3kPa(15-220mmHg)

Mean pressure: 2.7kPa-31.3kPa(20-235mmHg)

Detection accuracy: Static pressure:±4mmHg
SpO2

Detection scope: 35%-100%

Accuracy: ±2% 80%-100%

±3% 70%-79%
Heart rate

Scope: 15bpm to 300bpm

Accuracy: ±1bpm
AC adapter

Input:AC100-240v-200mA

Output:DC 5V 1A
Bluetooth Support both Bluetooth 3.0 and BLE 4.0
Built-in-Battery 3.7V,1800mAh lithium battery
Service life Over 10000 times
Size 145mm*85mm*37mm
Weight 240g
Display 2.4 inch color TFT LCD
Key Power on and perform functions
Delivery time Samples: about 2 days
Mass production: about 15 days (2000pieces)
OEM: about 25 days
