Product Description:

Woven wire screen is the most common type of screening media used in aggregate processing and mining applications due to its features of high open area, high weave precision and high cost-performance ratio. It is offered with the most precision mesh aperture within the global industry, with an aperture deviation of only ±3%. This is far superior to international standards of DIN47833 (Europe) and ASTM 2016-15 (North America).

There are four different weave styles to perfectly suit your filtration and separation applications and guarantee achieving high efficiency and sustained performance screening.

• Plain weave: simplicity and high weave precision. This type of weave is used where the opening is relatively small.
• Lock crimp weave: weft and warp wires pass each other and get locked together at the point of intersection. The crimping is done to lock the wires to prevent from abrasion caused by wire movements.
• Flat top weave: this provides a smooth surface for easier material flow with a long abrasion resistance lifetime.
• Intercrimp weave: extra crimps in warp and weft wires between the intersections are present. It offers larger aperture size with a stable wire diameter, stability, greater rigidity and a large open area.

The high quality materials of woven wire mesh can yield a higher profit for manufacturers, thus leading to high-precision screening and guaranteeing the percentage of material qualification.

Applications:

Aggregate screens are commonly used in the rock and quarry industry for crushing and filtering of rocks. Mamba’s wire mesh aggregate screens have various applications, such as screening and separating stones, coal, mining gravel, sand and other materials. Woven aggregate screen mesh is used for vibrating screen crushers, and is made by bending or welding hooks.

High open areas of aggregate screens allow them to operate at top capacity. Different weaving and hook types fit different aggregate screens and materials, which provides efficient installation. Mamba’s wire mesh aggregate screens are cost effective, and are known for their unbeatable satisfaction.

Customization:

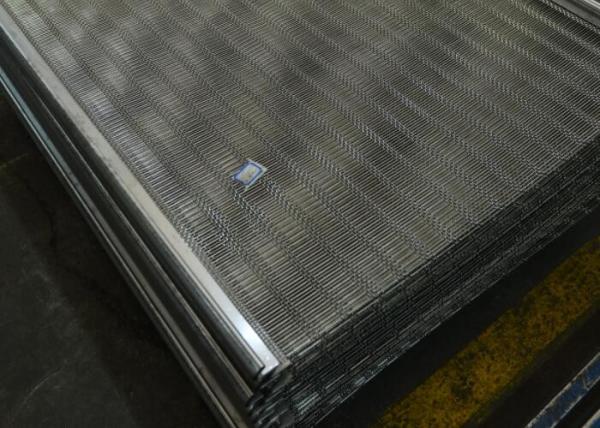

Our Mamba Screen Quarry Screen Mesh is a heavy duty wire screen mesh made for high impact and abrasion resistance. It is perfect for any quarry or mining application. Our quarry screen mesh is available in a variety of models and sizes, including square, rectangle and slotted. It comes with wire diameters from 0.8mm to 19.05mm and hooked or no hooked edges. This quarry screen mesh also provides a high tensile strength of 1000-1800Mpa and an aperture tolerance of less than 3%.

Support and Services:

We provide technical support and service for Quarry Screen Mesh products. Our experienced professionals are available to answer any questions you may have and provide necessary assistance.

We provide both on-site and online technical support and service. Our on-site technicians can visit your site and provide solutions to any problems you may have. Our online support and service are available through our website, email, chat, and phone.

We also offer preventive maintenance services to help you keep your Quarry Screen Mesh in optimal condition. We can inspect and tune-up your screen mesh to ensure that it is working properly and efficiently.

If you have any questions or need assistance, please don’t hesitate to contact us.

Packing and Shipping:

Packaging and shipping for Quarry Screen Mesh is done with the utmost care. The mesh is secured on a pallet or skid for easy transportation. Each pallet is shrink-wrapped for extra protection. Heavy-duty cardboard or wooden boxes are used to help protect the mesh from damage during shipping. All shipments are tracked and insured.
