On Off Winery IP68 60S 50Nm Explosion Proof Electric Actuator
On Off Winery IP68 60S 50Nm Explosion Proof Electric Actuator
On Off Winery IP68 60S 50Nm Explosion Proof Electric Actuator
On Off Winery IP68 60S 50Nm Explosion Proof Electric Actuator
Specifications
Brand Name :
DCL
Model Number :
DCL-Ex05B/Ex10B
Certification :
CE/ROHS/CSA/IP67/ATEX/IECEx/UL
Place of Origin :
WUHAN,CHINA
MOQ :
1pc
Packaging Details :
carton/pallet
Delivery Time :
7 working days
Payment Terms :
D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000PCS/month
Standard Torque :
50Nm to 100Nm
Standard Time :
20s to 30s
Power Supply :
24VAC/24VDC/110VAV/220VAC
Motor Power :
6W to 25W
Protection Grade :
IP68 NEMA 4X
Total Weight :
3kg to 5kg
Ambient Temperature :
-25℃~+55℃ / -13°F~+131°F
Installation Angle :
360°
Description

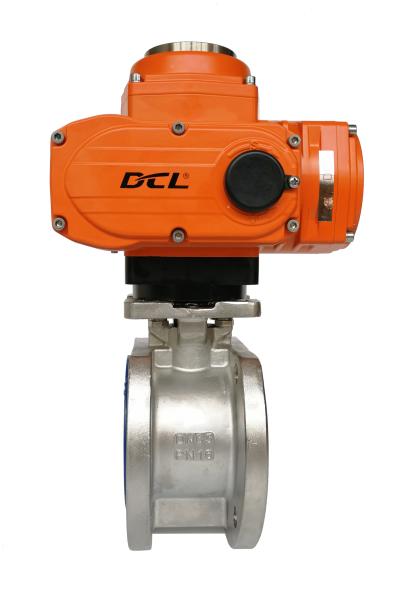

Winery used explosion proof electric actuator / coupling with super short ball valves

Features

  • On-off type quarter turn operation with mechanical limits
  • ExdIICT4 grade for ATEX and Class 1 Zone 1, Group C, D T4 grade for Class 1 Division 1
  • Watertight and whether proof IP68 and NEMA 4X for outdoor use
  • Stainless steel visual valve position indicator with 10mm hard tempered glass
  • Dehumidify heater optional to protect against condensation
  • Over torque limit switches optional
  • Heavy duty full enclosed motor with thermal overload protection
  • Manual override for emergency issue
  • CSA certification per UL and CSA standard/ATEX certified

Description

DCL explosion proof electric actuators are widely used in liquor factories to drive ball valves. The alcohol content of liquor such as Whiskey and Vodka is very high and easily volatilized and burned. That is why plants those produce liquor must use explosion proof automation devices. Unlike oil & gas or power plant, pipes in winery are commonly in a medium size that is less than DN65(1 1/4”), which can be perfectly matched with DCL actuator’s torque range when coupled with ball valves. The main gas emissions in winery is Ethanol(alcohol), so the explosion proof grade is good enough for winery uses.

Considering the compact size and patent integral design, DCL explosion proof electric actuators must be the most costing saving choice for liquor factories.

Specification:

Performance Parameters
Type DCL-Ex05
Power DC24V AC24V AC110V AC380V AC220V
Motor Power 13W 10W 10W 6W 10W
Rated Current 1.82A 1.50A 0.24A 0.07A 0.15A
Standard Time/Torque 20S/50Nm
Optional Time/Torque 4S/20Nm 10S/30Nm 4S/20Nm 10S/30Nm 60S/50Nm
Turning Angle 0～3600 Adjustable
Available Control Circuit Type of A,B,C,D,E,F,G,H,
Total Weight 3kg
Insulating Resistance 100MΩ/250VDC 100MΩ/500VDC
Withstand Voltage Class DC24V/AC24V: 500VAC 1 minute,AC110V/AC220V: 1500VAC 1 minute,AC380V: 1800VAC 1 minute
Protection Class IP67
Expiosive-proof grade ExⅡCT4Gb
Installation Angle 360 degree at any angle
Electric Interface

2-M20×1.5explosion-proof plug,clients should install corresponding explosion-proof cable

connector when using according to the cable selected.
Ambient Temperature -20～+60℃
Optional Function Heater for eliminating moisture

Performance Parameters
type DCL-Ex10
DC24V AC24V AC110V AC380V AC220V
Motor Power 25W 25W 25W 15W 25W
Rated Current 2.20A 2.12A 0.57A 0.10A 0.30A
Standard Time/Torque 30S/100Nm
Optional Time/Torque 15S/50Nm 15S/50Nm 60S/100Nm
Turning Angle 0～900 Adjustable
Available Control Circuit Type of A,B,C,D,E,F,G,H,
Total Weight 5kg
Insulating Resistance 100MΩ/250VDC 100MΩ/500VDC
Withstand Voltage Class DC24V/AC24V: 500VAC 1 minute,AC110V/AC220V: 1500VAC 1 minute,AC380V: 1800VAC 1 minute
Protection Class IP67
Expiosive-proof grade ExⅡCT4Gb
Installation Angle 360 degree at any angle
Electric Interface

2-M20×1.5explosion-proof plug,clients should install corresponding explosion-proof cable connector

when using according to the cable selected.
Ambient Temperature -20～+60℃
Optional Function Over-torque Protector/Heater
