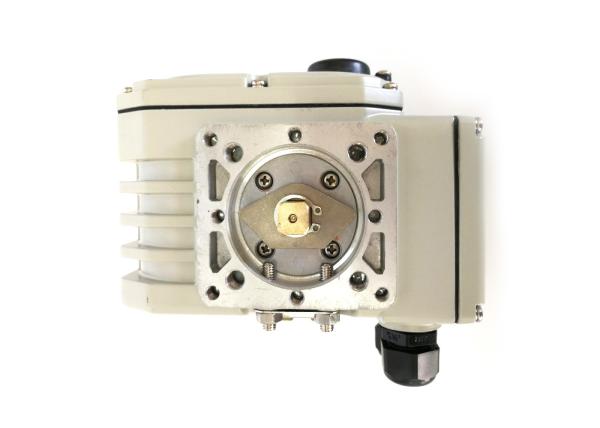

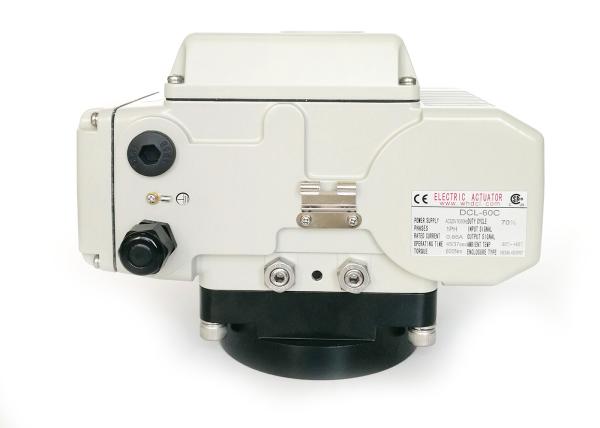

Swinging Arm IP67 Waterproof DCL Compact Actuator
Swinging Arm IP67 Waterproof DCL Compact Actuator
Swinging Arm IP67 Waterproof DCL Compact Actuator
Swinging Arm IP67 Waterproof DCL Compact Actuator
Specifications
Brand Name :
DCL
Model Number :
DCL all electric actuator
Certification :
CE/ROHS/CSA/IP67
Place of Origin :
WUHAN,CHINA
MOQ :
1pc
Packaging Details :
carton/pallet
Delivery Time :
7 working days
Payment Terms :
D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000PCS/month
Power Supply :
24VAC/110VAV/220VAC/380VAC/24VDC
Installation Angle :
360°
Standard Torque :
18Nm to 2500Nm/160in.lbs to 22125in.lbs
Standard Time :
15S to 75S
Total Weight :
1.2KG to 20KG
Motor Power :
6W to 140W
Ambient Temperature :
-25℃~+55℃ / -13°F~+131°F
Protection Grade :
IP67 NEMA4/4X
Description

Compact electric actuator with swinging arm for damper control

Features

  • Less than 95° operation with adjustable angle and mechanical limits
  • Water proof IP67 and NEMA 4X aluminum alloy enclosure with C3 level corrosion resistance
  • Heavy duty motor with thermal overload protection
  • Over 10000 times full range life cycle with rated load
  • All metal gear trains with self-locking bronze alloy worm gear
  • On-off type and modulating type with 4-20mA/2-10V input control signal available
  • Very compact size for 360° installation, with water proof connector and cable optional
  • Visual position indicator, flat or convex optional
  • Manual override with Allen wrench
  • CSA certificated per UL and CSA standard/CE marked/RoHS 3 tested

Description

DCL compact electric actuators are widely used for damper control, such as farm ventilator,factory ventilator, boiler ventilator etc. We can also provide customized swinging arm production and waterproof cable connection. The compact and light weight design can be easily installed to any frame or supporter. Permanent lubricated worm gear do not need any field maintenance after installation. Self-locking function can keep damper at any position by shut off power.

Actuators comply to UL/CSA/CE standard, so they can be accepted by most countries in North America, South America and Europe. If the ventilators will be sold to above areas, our products are the best choice.

Specification

Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm 10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-160 48S/1600Nm 19.5Kg
DCL-250 75S/2500Nm 20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm 3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg
