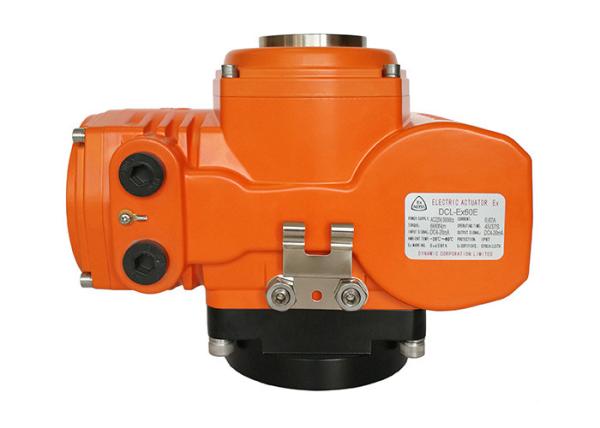

Auto Power Off Self Diagnosis 4-20mA 45S Smart Valve Actuator
Auto Power Off Self Diagnosis 4-20mA 45S Smart Valve Actuator
Specifications
Brand Name :
DCL
Model Number :
DCL E model
Certification :
CE/ROHS/CSA/IP67
Place of Origin :
WUHAN,CHINA
MOQ :
1pc
Packaging Details :
carton/pallet
Delivery Time :
7 working days
Payment Terms :
D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000PCS/month
Input Signal :
4-20mADC/1-5VDC/2-10VDC
Output Signal :
4-20mADC
Standard Torque :
50Nm to 2500Nm/442in.lbs to 22125in.lbs
Standard Time :
20S to 75S
Power Supply :
24VAC/110VAV/220VAC/380VAC
Motor Power :
6W to 140W
Protection Grade :
IP67 NEMA4/4X
Total Weight :
1.2KG to 20KG
Ambient Temperature :
-25℃~+55℃ / -13°F~+131°F
Installation Angle :
360°
Description

Self diagnosis smart electric actuator with automatically power off function

DCL-05E~250E parameters.pdf

Features

  • Unique integral motor/control pack/ housing design with very small size and beautiful appearance
  • Valve position indicator/flat indicator or convex indicator available
  • Over torque protection by torque test function of smart full potted controller
  • Weather proof aluminum alloy enclosure with thermally bonded polyester coating
  • Heavy duty motor with thermal overload protection
  • Self-calibrating and problem self-checking function
  • Standard ISO5211 multi-flange valve mounting
  • Manual override with wrench or handwheel
  • High performance EMC with EFT, ESD and high voltage surge tested for control pack
  • CSA Certification per UL and CSA standard/CE marked/RoHS 3.0 passed

Description

DCL modulating type electric has lots of self-diagnosis function such as malfunction of power, position inspection circuit and potentiometer broken, actuator stalled etc. Once malfunction happens, the LED lights on the control pack will flash with different colors, and motor power will be cut off automatically to keep whole system safe.

Actuators are rigorous tested and certified by CSA per UL and CSA standard. It can suffer 1200 times starts per hour and over total 200000 times starts for whole life cycle with rated torque.

Specification

Type DCL-05E DCL-10E DCL-20E DCL-40E DCL-60E DCL-100E DCL-160E DCL-250E
Power AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC110/220 AC110/220 AC110/220
Output Torque 50Nm 100Nm 200Nm 400Nm 600Nm 1000Nm 1600Nm 2500Nm
Acting Time 20S 30S 30S 30S 45S 30S 48S 75S
Turning Angle 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90°
Motor Power 10W 25W 40W 90W 90W 120W 140W 140W
Rated Current 1.50/0.24/ 0.16A 2.12/0.57/ 0.35A 3.65/0.65/ 0.37A 6.80/1.12/ 0.57A 6.80/1.18/ 0.60A 1.93/0.94A 1.75/0.96A 1.75/0.98A
Total Weight 2.5kg 4.5kg 9kg 9.5kg 10kg 19kg 19.5kg 20kg
Input Signal 4-20mADC,1-5VDC,2-10VDC
Output Singal 4-20mADC
Basic Error not more than ±1%
Reciprocating Error not more than 1%
Dead Space 0.5%-5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator ≤1%
Insulating Resistance AC24V:100MΩ/250VDC AC110/220V:100MΩ/500VDC
Withstand Voltage Class AC24V:500VAC 1minute AC110/220V:1500VAC 1minute
Protection Class IP67
Installation Angle 360°at any angle
Electric Interface Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line
Ambient Temperature -20℃~+55℃
Optional Function Over-torque protector/Dehumidify Heater/Passive contact switch/Dome indicator/Handle
Remark Any other input or output signal needed, please specified in purchase order.
