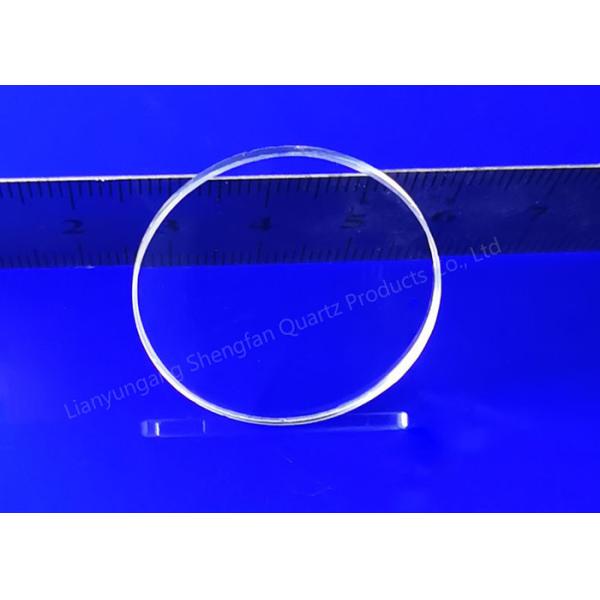

Morse 6.5 Optical Glass Thin Round Fused Silica Plate
Morse 6.5 Optical Glass Thin Round Fused Silica Plate
Morse 6.5 Optical Glass Thin Round Fused Silica Plate
Morse 6.5 Optical Glass Thin Round Fused Silica Plate
Specifications
Brand Name :
Shengfan quartz
Model Number :
P-1
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD$0.5-100
Payment Terms :
L/C, T/T
Supply Ability :
100000 pieces/month
Delivery Time :
3-10 days
Packaging Details :
plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet
Name :
quartz glass insulator
Material :
SIO2>99.999%
Light transmittance :
>92%
Hardness :
morse 6.5
Working temperature :
1100℃
Melt point :
1750-1850℃
Dielectric Properties :
20°C and 1 MHz
Description

High purity silica quartsight glass for optical window and laser machine

Product description:

Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window.

Application of quartz plate:

Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, fire hole industries such as high temperature and other industries, electric light source equipment, Labortory instrument, chemical apparatus.

Advantage:

1. High purity.
2. High temperature resistance.
3. Corrosion resistance.
4. Good light transmission.
5. Excellent electrical insulator.
6. No bubble, no air line.

Product Details
1.SiO2> 99.99% ,high purity quartz tube.
2.Operating Temperature: 1250℃ SoftenTemperature: 1730℃.
3.Excellent visual and chemical performance .
4.Without surface coating and infectant.
5.Health care and environmental protection.
6.Any dimension can be made.
7.CE.RoHs SGS approved.

Shengfan Quartz plate characteristic
SIO2 99.9%
Density 2.2(g/cm³)
Degree of hardness moh’ scale 6.6
Melting point 1732℃
Working temperature 1100℃
Max temperature can reach in a short time 1450℃
Visible light transmittance Above 93%
UV spectral region transmittance 80%
Annealing point 1180℃
Softening point 1630℃
Strain point 1100℃

JGS1(ZS-1) JGS2(ZS-2) JGS3(HS)
Spectral characteristics 180-2500nm 200-2500nm 260-3500nm
The average transmittance 90% 85% 85%
Bubble class 0 2 2
Birefringence 1-2 1-2 1-2
Grain structure 1 2 2
Fringe 1-2 2 2
Uniformity 1-2 2 2
Fluorescence 1 2 2
Radiation Performance Does not change clolor Sight discoloration Change color

Morse 6.5 Optical Glass Thin Round Fused Silica PlateMorse 6.5 Optical Glass Thin Round Fused Silica Plate

Morse 6.5 Optical Glass Thin Round Fused Silica Plate
