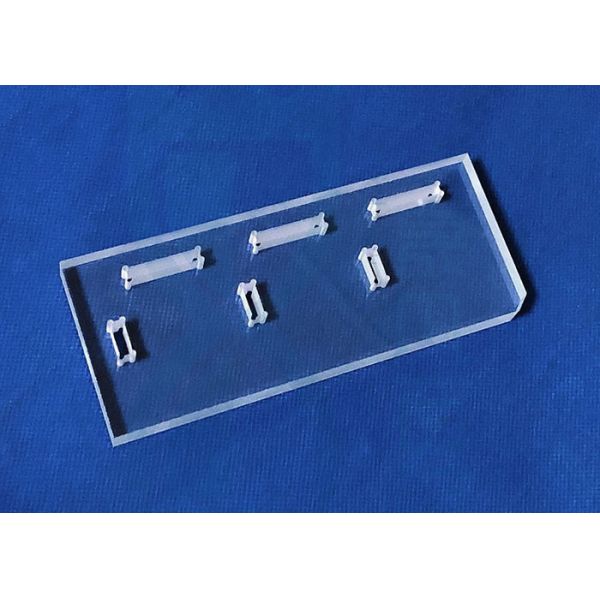

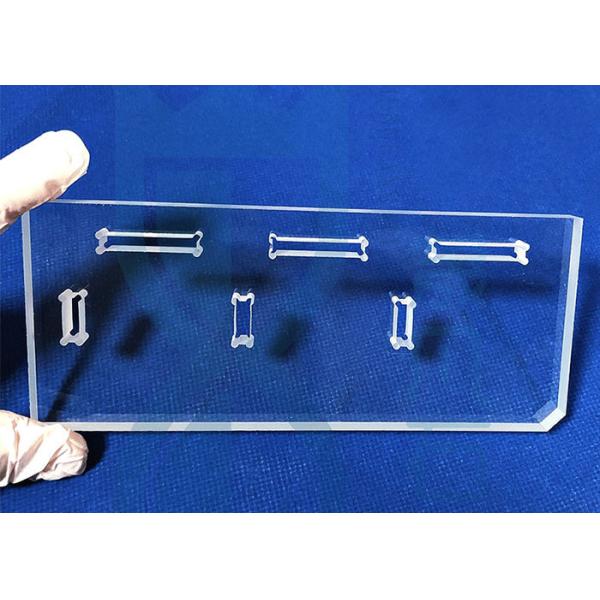

ISO9001 99.99 Purity Uv Clear Fused Silica Plate With Hole
ISO9001 99.99 Purity Uv Clear Fused Silica Plate With Hole
ISO9001 99.99 Purity Uv Clear Fused Silica Plate With Hole
ISO9001 99.99 Purity Uv Clear Fused Silica Plate With Hole
Specifications
Brand Name :
shengfan
Model Number :
QP-1
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pieces
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pieces/month
Delivery Time :
5-15 work days
Packaging Details :
plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet
Product Name :
Quartz Glass Plate
Material :
SIO2
Hardness :
morse 6.5
Working temperature :
1100℃
Surface quality :
20/40 or 40/60
Dieletric strength :
250～400Kv/cm
Light Transmittance :
>92%
Description

Product Details
1.SiO2> 99.99% ,high purity quartz tube.
2.Operating Temperature: 1250℃ SoftenTemperature: 1730℃.
3.Excellent visual and chemical performance .
4.Without surface coating and infectant.
5.Health care and environmental protection.
6.Any dimension can be made.
7.CE.RoHs SGS approved.

Quartz Plate:
1.Translucence Quartz Glass thickness 0.3-30mm, OD: 1-500mm
2.Thickness Tolerance: +/-0.1mm
3.Raw Material: Quartz , SiO2: >=99.99%
4.Color : Clear , Translucence.
5.Surface quality :40/20 60/40
6.Transmittance >90%
7.Sharpe: Square , Circle, Can make the size and shape according to customer's require.

Application of quartz plate:

Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, fire hole industries such as high temperature and other industries, electric light source equipment, Labortory instrument, chemical apparatus.

Accept customized drawings and samples:
Factory support to figure to sample custom, Ultraviolet sterilizing lamp, ultraviolet sterilization tube, ozone sterilization lamp shade, etc
product is mainly used in electric light source, electrical appliances (electric), semiconductor, optical communications,
military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other fields

Density 2.2x103 kg/m3 Hardness 5.5 - 6.5 Mohs' Scale 570 KHN 100
Design Tensile Strength 4.8x107 Pa (N/m2) (7000 psi) Design Compressive Strength Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730
Bulk Modulus 3.7x1010 Pa (5.3x106 psi) Rigidity Modulus 3.1x1010 Pa (4.5x106 psi)
Softening Point 1730°C Annealing Point
1215°C

ISO9001 99.99 Purity Uv Clear Fused Silica Plate With HoleISO9001 99.99 Purity Uv Clear Fused Silica Plate With Hole

Company Introduction:

Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the delivery time?
A:Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive.
Airline and sea shipping are also available.
