Specifications
Brand Name :
QUEENDM
Place of Origin :
Made in CHINA
MOQ :
100
Payment Terms :
T/T
Supply Ability :
10KK+PCS
Delivery Time :
7-15
SIZE :
5mm
Certification :
SGS ROHS CE
Description

product name产品名称 Part No. Emitted Color Power λd (nm)/CCT(K) 发光强度 顺向电压 反向电流 Viewing Angle 2Ө 1/2 Lens Type
Iv(lm)ranks @IF=20mA VF(V) IF(µA)
Ø5白发红 B5R302C Red 0.06W 620 630 3500 7500 1.8 2.2 ≤10 25±3° Clear
Ø5白发橙 B5O302C Orange 0.06W 600 610 3000 6000 1.8 2.2 ≤10 25±3° Clear
Ø5白发黄 B5Y302C Yellow 0.06W 585 595 3000 6000 1.8 2.2 ≤10 25±3° Clear
Ø5白发绿 B5G302C Green 0.06W 510 530 5000 13000 3.2 3.6 ≤10 25±3° Clear
Ø5白发蓝 B5B302C Blue 0.06W 460 470 3000 5800 3.2 3.6 ≤10 25±3° Clear
Ø5白发白 B5W302C Warm White 0.06W 2500 4000 8000 15000 3.2 3.6 ≤10 25±3° Clear
Ø5白发白 B5W302C Positive white 0.06W 5000 8000 8000 15000 3.2 3.6 ≤10 25±3° Clear
Ø5白发白 B5W302C Cool white 0.06W 9000 20000 8000 15000 3.2 3.6 ≤10 25±3° Clear

Product introduction:

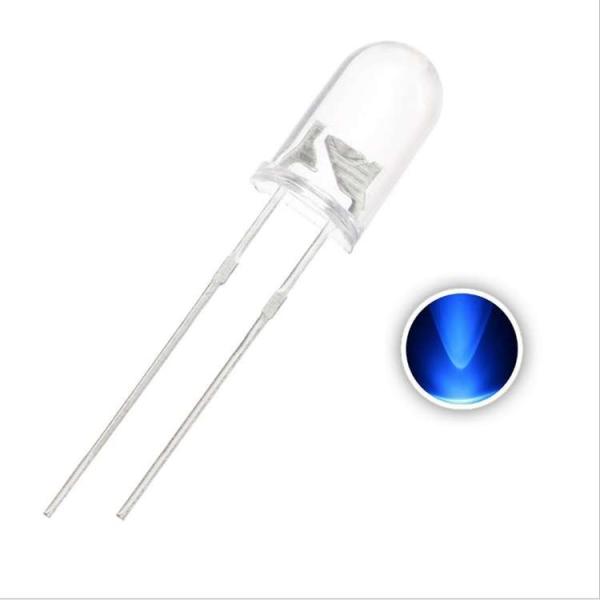

Model: 5MM round head straight plug LED
Size: φ5mm
Features: low light attenuation, high luminous brightness, high efficiency and power saving, stable performance, long life, simple use and many other advantages. The product has undergone strict reliability experiments and has high reliability. RoHS, REACH certification
Application areas: household appliances, 3C digital products, lighting, gifts, toys, traffic lights, communications products, etc.

Adopt Taiwan chip packaging, high temperature resistant glue, 99.99% pure gold wire welding; good product consistency, low light decay, high brightness

Colloid color: white mist (can be customized as required: colored mist, colorless mist, colored transparent, colorless and transparent)

Luminous color: white (can be customized according to requirements: white, red, orange, yellow, ordinary green, emerald green, blue, two-color)

Light angle: 25±5° (angle can be adjusted according to customer requirements)

Product foot length: long feet (26.5mm) or short feet (16.5mm) can be bent and cut according to requirements

Lead-free standard: in line with EU ROHS standard SGS certificate

Packing: Anti-static bag packaging 1000pcs / bag

5mm in-line lamp beads | The full range of specifications includes 5MM round head lamp beads, 5MM flat head lamp beads, 5MM straw hat lamp beads, and more production of various types of plug-in leds, with luminous colors red, yellow, blue, green, white, purple, Pink, full range of wavelengths from 380-780NM; models such as F3/3MM, F5/5MM, F8/8MM, F10/10MM and other specifications, please contact online customer service.
