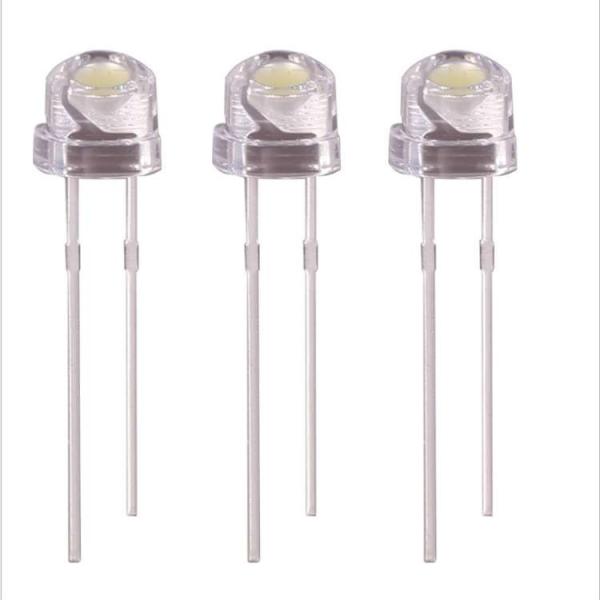

LED lamp beads F5 straw hat lamp beads|4.8mm plug-in|LED steel helmet|LED
LED lamp beads F5 straw hat lamp beads|4.8mm plug-in|LED steel helmet|LED
Specifications
Brand Name :
QUEENDM
Certification :
SGS ROHS CE
Place of Origin :
Made in CHINA
MOQ :
100
Price :
0.015
Payment Terms :
T/T
Supply Ability :
10KK+PCS
Delivery Time :
7-15
SIZE :
5mm
Description
product name产品名称 Part No. Emitted Color Power λd (nm)/CCT(K) 发光强度 顺向电压

反向电流

 Viewing Angle 2Ө 1/2 Lens Type
Iv(lm)ranks @IF=150mA VF(V) IF(µA)
Ø5白发红 J5R302C Red 0.06W 620 630 300 1200 1.8 2.2 ≤10 120±5° Clear
Ø5白发橙 J5O302C Orange 0.06W 600 610 300 1200 1.8 2.2 ≤10 120±5° Clear
Ø5白发黄 J5Y302C Yellow 0.06W 585 595 300 1200 1.8 2.2 ≤10 120±5° Clear
Ø5白发绿 J5G302C Green 0.06W 510 530 900 1600 3.2 3.6 ≤10 120±5° Clear
Ø5白发蓝 J5B302C Blue 0.06W 460 470 400 1200 3.2 3.6 ≤10 120±5° Clear
Ø5白发白 J5W302C Warm White 0.06W 1200 2300 1100 2500 3.2 3.6 ≤10 120±5° Clear
Ø5白发白 J5W302C Positive white 0.06W 1300 2500 1200 2300 3.2 3.6 ≤10 120±5° Clear

Ø5白发白

 J5W302C Cool white 0.06W 1200 2300 1200 2300 3.2 3.6 ≤10 120±5° Clear

Features:

Adopt Taiwan chip packaging, high temperature resistant glue, 99.99% pure gold wire welding; good product consistency, low light decay, high brightness

Colloid color: white mist (can be customized as required: colored mist, colorless mist, colored transparent, colorless and transparent)

Luminous color: white (can be customized according to requirements: white, red, orange, yellow, ordinary green, emerald green, blue, two-color)

Light angle: 120±5° (angle can be adjusted according to customer requirements)

Product foot length: long feet (26.5mm) or short feet (16.5mm) can be bent and cut according to requirements

Lead-free standard: in line with EU ROHS standard SGS certificate

Packing: Anti-static bag packaging 1000pcs / bag

5mm in-line lamp beads | The full range of specifications are 5MM round head lamp beads, 5MM flat head lamp beads, 5MM straw hat lamp beads. .

For more specifications, please contact online customer service. and more production of various types of plug-in leds. The luminous colors are red,

yellow, blue, green, white, Purple, pink, full range of wavelengths from 380-780NM; models such as F3/3MM, F5/5MM, F8/8MM, F10/10MM and other specifications, please contact online customer service.
