Micro Jewelry Laser Welding Machine
Micro Jewelry Laser Welding Machine
Micro Jewelry Laser Welding Machine
Micro Jewelry Laser Welding Machine
Specifications
Brand Name :
Questt
Model Number :
Robot200J
Certification :
CE,ISO,BACL
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, Western Union,, L/C
Supply Ability :
2890 sets / year
Delivery Time :
9 days
Packaging Details :
Plywood cases
Laser Power :
200W
welding wire :
0.1-2 mm
Energe :
60 - 100 J
Service :
Oversea service available
pulse width :
0.1 - 2 mm
Laser type :
NG:YAG
Description

Laser micro spot welding machine YAG laser source Imported lens mirror microscope

Laser welder Introduction

QUESTT Robot200J micro spot welding machine is a special type laser soldering machine for jewellery.

There is no special block needed during the processing. The pieces to be processed can be hold by hand, and to be welded under the microscope conveniently.

The observing system is equipped with special-purpose microscope observing system with cross, so yo can see very clearly the welding points and laser beam from the microscope.

It has high speed electron flitting device to protect the operator's eyes from being hurt.

It is more reliable, more durable, more convenient and effective. Besides, laser spot welding can be used to group weld tiny components, for example, weld motor electrode and optical components in greenhouse or special condition.

Features

1 life of condensation cavity are 8-10 years

2 life of xenon light is more than 8000 thousands

3 high efficiency, small heat-affected zone

4 Humanized design, non-pollution

5 high welding quality, perfect laser beam

6 Imported lens mirrors and diamond rod


Specification data sheet

type Robot200J
Output laser power 200W
Energe 100 J
Wave length 1064nm
Laser power supply 4KW
Laser welding minimum melt pool 0.1mm
Laser pulse frequency ≤50Hz
Laser pules width ≤20ms
Port adjusting scope 0.1～3.0mm
Port size 0.2～3.0mm
Protective gas N2
Power demand 220V one-phase/50Hz/20A
Figure size of system Laser welder 1160X640X1410mm
Water chiller 740X600X1090mm

Applications

Titanium, Nickel, Aluminum, Stainless steel, Gold, Argentine, Copper, Platinum.

Jewelry Samples

Micro Jewelry Laser Welding Machine

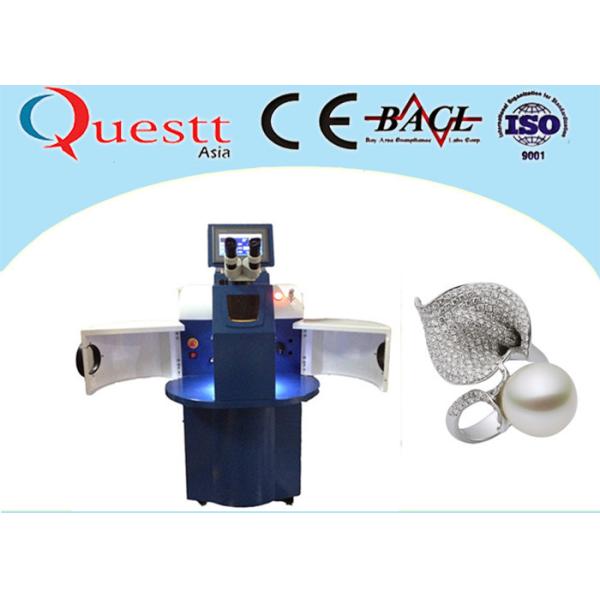

Machine outlook

Micro Jewelry Laser Welding Machine

FAQ

1 Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

2 Q: What is the payment term?

A: T/T, L/C, Westen Union, PayPal etc.

3 Q: What is the service

A: Engineer offer oversea service .

4 Q: How about the quality?

A: High quality best price.
