Flying Fiber Laser Marking Machine With Conveyor For Production Line Expiry Date Coding Cable Printing
Flying Fiber Laser Marking Machine With Conveyor For Production Line Expiry Date Coding Cable Printing
Flying Fiber Laser Marking Machine With Conveyor For Production Line Expiry Date Coding Cable Printing
Flying Fiber Laser Marking Machine With Conveyor For Production Line Expiry Date Coding Cable Printing
Specifications
Brand Name :
Questt
Model Number :
Quantum - FL20F
Certification :
CE ISO BACL
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union,, L/C
Supply Ability :
3640 sets / Year
Delivery Time :
10 working days
Packaging Details :
Anti-water Plywood cases
Laser Power :
20Watts
Service :
Oversea service is OK
Power supply :
110/220V , 50 / 60 HZ
Wave length :
1064nm
Certificate :
CE ISO certificate
Marking speed :
7000mm/s
Description

Laser Marking Medical Devices 20W , Online Production Fly Laser Marking Machine

Introduction

Quantum - FL20F Online Production Fly Laser Marking Machine is specially design for automatic production lines, marking on all kinds of products, like bottal cover, paper box, glass etc.

It can automatically perform the engraving of characters, signs, graphs, images, bar codes, two-dimensional codes, and automatically increasing serial numbers to a wide range of materials.

The laser etching machine can support file formats like PLT, PCX, DXP, BMPand so on.

It can work 24-hour without stop, makes it meet the demand of massive on-line and off-line industrialized production.

The laser printer is a fly laser marking machine, also with four wheels on the ground, so the machine can move freely to match up the auto producing lines.

Technical data

Product Specifications
Product Quantum-FL20F Laser marking medical devices
Purpose Marking printing engraving
Laser
Laser Wavelength 1000-1100nm
Laser Type Fiber laser source
Laser Output Power 20W
typical Laser Life Span 100,000hrs
Modulation frequency 20-100kHz
Max. Working Speed 7000mm/s
Galvanometer Yes
Lens F-Theta Lens
Working Area
Beam Diameter/Quality M2<1.2
Working Area 70x70mm, 110x110mm (standard), 160x160mm, 250x250mm
Repeatability 0.01mm
Positioning accuracy 0.01mm
Min Line Width 0.01mm
Marking/Cutting Depth 0.01-0.2mm (depending on material)
Control
Cooling Air cooled
No. Axis Z Axis (Manual)
Rotation Optional(Automatic only)
Power supply AC220V, 50/60Hz, 1kVA (110-120V Optional)
Controller Computer with marking software
USB 2.0 Compatible YES
File Types PLT, DXF, AI, DST, BMP, JPG, TIF
Max. Operating Time 24hrs (recommend 1hr cool-down period)
Physical Characteristics
Dimensions 680x650x1100mm
Weight (kg) 100kg
Guarantee:
General Guarantee 12 Months from date of arrival at destination
Laser Source 2000hrs/3 months - LAMP PUMPED (Except Smart Series)
20,000hrs/18 months - Smart Series
10,000hrs/12 months - Diode Pumped
100,000hrs/2 years - Fiber LASER

Applications

Automatic production lines.

The spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools

It can mark all kinds of metal materials and some non-metallic materials,industrial plastic,electroplates,metal-coated materials, rubbers, ceramics,mobile button,plastic transparent button. Electronic parts,IC,tools,communication products.

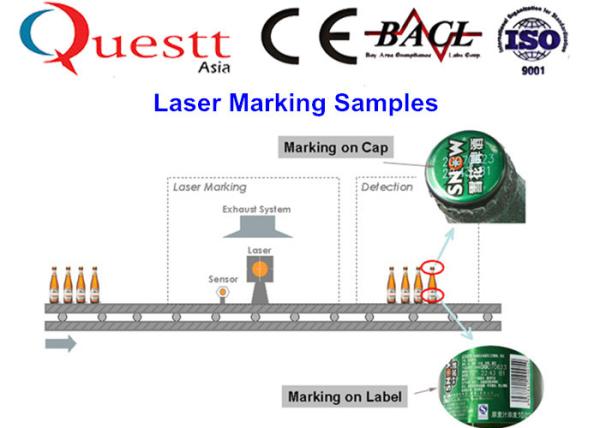

Samples

Flying Fiber Laser Marking Machine With Conveyor For Production Line Expiry Date Coding Cable Printing

FAQ

1 Q: What is the warranty of the machine?

A: The warranty is 1 year

2 Q: What is the payment term?

A: T/T, L/C, Westen Union, PayPal etc.

3 Q: What is the service ?

A: oversea service and whole life after sale service.

4 Q: How about the quality?

A: Germany high technoloy with best quality spare parts.

5 Q: Can we customize as special needs?

A: Yes, you can.

Different angle of the machine

Flying Fiber Laser Marking Machine With Conveyor For Production Line Expiry Date Coding Cable Printing
