Specifications
Brand Name :
QUESTT
Model Number :
ROBOT-FL1000V
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1
Price :
3800-6800
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 SETS/MONTH
Delivery Time :
15 DAYS
Packaging Details :
WOODEN CASE, CARTON
Warranty :
2 years
Certificate :
CE ISO
After-sales Service Provided :
Engineers available to service machinery overseas
Keywords :
laser welding machine
Laser type :
Fiber Laser Source
Laser power :
500-2000W
Cooling System :
Water Cooling
Laser wavelength :
1060nm
Application material :
Metal Materials
Feature :
Fast
Description
Products Description
ROBOT-FL1000V Laser Welding Machine
Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder
Product Introduction
The fiber continuous welding machine adopts continuous fiber laser, and through digital control of aser pulse width, energy, repetition frequency and other parameters, the workpiece is melted to form a specific molten pool, so as to realize the laser welding of the processed workpiece. It is widely used in mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry,medical equipment, thermal cups, wine pots, kitchens and other industries.
Features
Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder

1.Latest generation of fiber laser, self-developed wobble/common welding gun with safety sensing function and adjustable weld seam width;
2.Easy welding of large objects over long distances, and hard-to-reach places;
3.High strength and fine weld seam, no need for polishing, no consumables, no deformation;

4.3-10 times the speed of conventional argon arc welding plasma welding;
5.Power consumption is 10-20% less than traditional process, save 2-3 labor costs;
6.Easy operation, long service life.
Configuration Detail
Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder
Laser welding head
Integrated blowing and welding, CCD monitoring, with lighting, better observation of welding process( the length of the welding nozzle can be selected)
Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder
Multi-axis linkage module

Taiwan screw slider, high positioning accuracy and sensitive response ( can be customized according to
demand)

Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder
Workbench
The overall 15mm thick aluminum plate (steel plate) design compact structure, simple interface, flexible adjustment of the processing direction.
Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder
HD solder joint monitor
High-definition solder joint display, to better observe the welding process.
Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder
Water chiller
Cooling power: 2700W. It can ensure that the welding machine has stable power, efficient and fast operation.
Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder

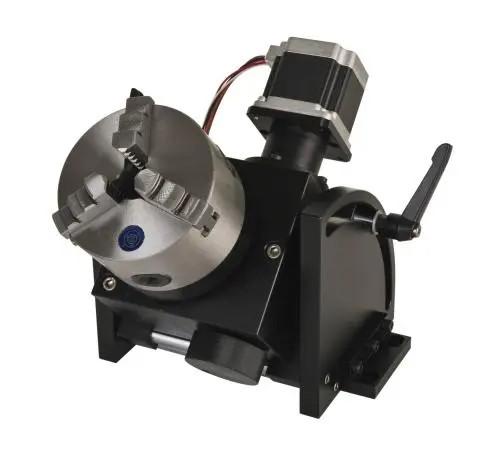

Rotary Fixture
It can weld round tubes, square tubes and other different shapes. (Optional device)
Product Paramenters
Model
ROBOT-FL1000V
Output Power
1000W
Laser Wavelength
1064nm
Laser welding Depth
≤5mm depending materials
Focus Spot
0.1-3.0mm
Red Light Spot
0.2-3.0mm
Power Max
10KW
Laser Power Supply
380V/3 phase/50Hz/40A
Max Weight load
≤200Kg
Worktable Running distance
200*200mm to 1200*1200mm
Repeat Precision
±0.01mm
Position Precision
±0.02mm
Position System
Red light, CCD and Optional Rotary
Laser Cooler
Water Cooling
Dimension
1600*800*1800mm
Machine Weight
300kg
Product Advantages

1. Precise positioning
Optical fiber laser welding machine is equipped with CCD camera monitoring system, which is convenient to observe, and can precisely locate by spot in micro-welding.

2. Uniform weld spot
The spot energy distribution of optical fiber laser welding machine is uniform, and it has the best spot needed for welding characteristics.
3. Suitable for all kinds of weld screams
Fiber laser welding machine adapts to all kinds of complex welds, spot welding of various devices, and welding seams of thin plates within 1mm. It has fast welding speed, large depth and small deformation.
4. Batch & Mass Production
Optical fiber laser welding machine can customize special automatic fixture to realize mass production of products.
5. Wobble welding In the welding process
Wobble welding can be realized, the spot size can be adjusted, and the automatic wire feeding device can be added according to the needs of customers
