1/8 -1/2 Inch Pneumatic Quick Disconnect Couplings , LSQ-AA Pneumatic Connectors
1/8 -1/2 Inch Pneumatic Quick Disconnect Couplings , LSQ-AA Pneumatic Connectors
Specifications
Brand Name :
SONGQIAO
Model Number :
LSQ-AA
Place of Origin :
Ningbo, China(Mainland)
Supply Ability :
50,000pcs/day, according the capacity of the assembly workshop
Delivery Time :
within 30 days or as per customers' requirement
Packaging Details :
standard exporting package or as per customers' requests
MOQ :
negotiable
Price :
negotiable
Standard :
Compatible with NITTO HI-CUPLA series, CEJN 315 series
Material :
Carbon Steel
Size :
1/8"-1/2"
WP :
Working pressure to145 psi (10 bar)
Description

LSQ-AA Nitto Hi-Cupla, Semi-Automatic Type, Pneumatic Couplings in Carbon Steel, Chrome Three

Descripton:
LSQ-AA single handed and semi-autcmatic type quick coupling(steel)
→ Features: Single hand operation.
→ Advantages: single hand operation, light weight, high flow valve, various of connections.
→ Application: pneumatic tools, automotive, compressed air, machinery equipment and compressor.
→ Interchangeability: Nitto HI-CUPLA series, CEJN 315 Series. Rectus 13KA series.
→ Working Pressure:1.0MPa.
→ Working Temperature: -20℃ to +120℃.
1/8 -1/2 Inch Pneumatic Quick Disconnect Couplings , LSQ-AA Pneumatic Connectors

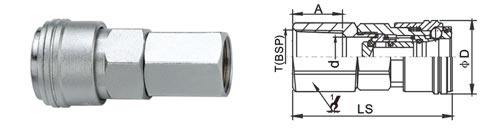

PARTNO.LS￠DHEX1A￠Td
LSQ-AA-01SH64.526.5192074
LSQ-AA-02SH69.526.5192595
LSQ-AA-03SH69.526.51925117


1/8 -1/2 Inch Pneumatic Quick Disconnect Couplings , LSQ-AA Pneumatic Connectors

PARTNO.LS￠DHEX1AT(BSP)d
LSQ-AA-02SF52.526.51913BSP1/4"19P10
LSQ-AA-03SF52.526.51913BSP3/8"19P10
LSQ-AA-04SF53.526.52414BSP1/2"14P10


1/8 -1/2 Inch Pneumatic Quick Disconnect Couplings , LSQ-AA Pneumatic Connectors

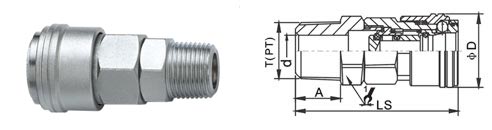

PARTNO.LS￠DHEX1AT(BSP)d
LSQ-AA-02SM5026.51913PT1/4"19P7
LSQ-AA-03SM5026.51913PT3/8"19P10
LSQ-AA-04SM53.526.52216PT1/2"14P11.5


1/8 -1/2 Inch Pneumatic Quick Disconnect Couplings , LSQ-AA Pneumatic Connectors

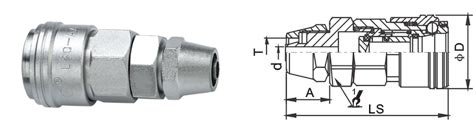

PARTNO.LS￠DHEX1AT(BSP)d
LSQ-AA-01SP50.526.519146*42.8
LSQ-AA-02SP5226.519158*54
LSQ-AA-03SP5426.5191710*6.55
LSQ-AA-04SP55.526.5191912*86.5


1/8 -1/2 Inch Pneumatic Quick Disconnect Couplings , LSQ-AA Pneumatic Connectors

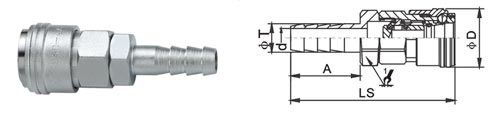

PARTNO.LSCCPA￠Td
LSQ-AA-01PH47.520.5￠162077.5
LSQ-AA-02PH52.520.5￠162597.5
LSQ-AA-03PH52.520.5￠1625117.5


1/8 -1/2 Inch Pneumatic Quick Disconnect Couplings , LSQ-AA Pneumatic Connectors

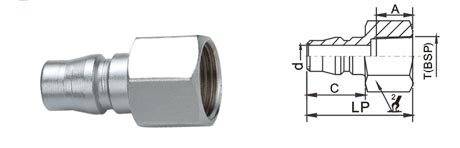

PARTNO.LPCHEX2AT(BSP)d
LSQ-AA-02PF36.520.51713BSP1/4"19P7.5
LSQ-AA-03PF36.520.51915BSP3/8"19P7.5
LSQ-AA-04PF41.520.52416BSP1/2"14P7.5


1/8 -1/2 Inch Pneumatic Quick Disconnect Couplings , LSQ-AA Pneumatic Connectors

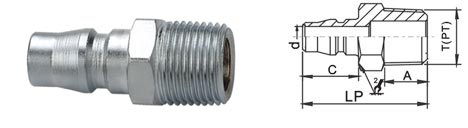

PARTNO.LPCHEX2AT(PT)d
LSQ-AA-02PM36.520.5149.5PT1/4"19P7.5
LSQ-AA-03PM39.520.51713PT3/8"19P7.5
LSQ-AA-04PM42.520.52215PT1/2"14P7.5


1/8 -1/2 Inch Pneumatic Quick Disconnect Couplings , LSQ-AA Pneumatic Connectors

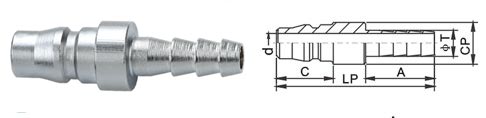

PARTNO.LPCHEX2ATd
LSQ-AA-01PP4020.514146*47.5
LSQ-AA-02PP4120.514158*57.5
LSQ-AA-03PP4320.5171710*6.57.5
LSQ-AA-04PP45.520.5191912*87.5
