Medium Pressure Hydraulic Quick Disconnect Couplings LSQ-RD General Application
Medium Pressure Hydraulic Quick Disconnect Couplings LSQ-RD General Application
Specifications
Brand Name :
SONGQIAO
Model Number :
LSQ-RD
Place of Origin :
Ningbo, China(Mainland)
Supply Ability :
50,000 pcs/day, according the capacity of the assembly workshop
Delivery Time :
within 30 days or as per customers' requirement
Packaging Details :
standard exporting package or as per customers' requests
MOQ :
negotiable
Price :
negotiable
Standard :
Compatible with NITTO TSP Series
WP :
Working pressure to 1000 psi (69 bar)
Material :
Brass or SS304
Size :
1/8"-1/2"
Thread :
BSPP, BSPT, NPT, NPTF, SAE
Connection :
Locking balls
Description

LSQ-RD, For Medium Pressure General Application, Hydraulic Couplings in Brass or SS304

Descripton:
LSQ-RD Japanese type hydraulic quick coupling

Applications:
High-pressure water and steamwashers
Carpet cleaners
Mold coolant lines
Many other non-valved applications.

Specifications:

Body Size(in)1/81/43/81/2
Rate Pressure(PSI)
Brass Cplr/Npl1000100010001000
SS Cplr/Npl2000200015001500
Rated Flow(GPM)361212
Temperature Range(std seals)-20℃ to +120℃


LSQ-RD Features:
1. The smooth, open bore with no valving in either half offers minimal pressure drop and allows easy clesning in applications where the same lines are used for more than one media.
2. LSQ-RD couplers and nipples are machined from solid bar stock providing the quality coupling that is durable.
3. LSQ-RD nipples are available in brass and 304 stainless steel as standard product materials.
4. LSQ-RD nipples are available in 304 stainless steel, brass.
5. The LSQ-RD is an “interchange” coupling because the dimensionally and functionally can interchange with similar couplings made by other manufactures.
6. Compatible with NITTO TSP Series.

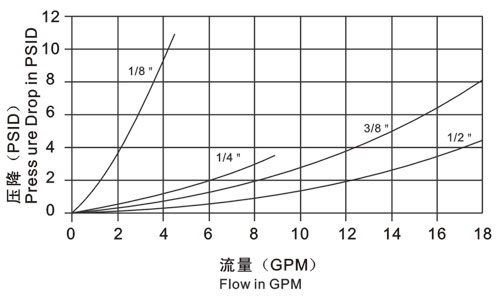

Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa
Medium Pressure Hydraulic Quick Disconnect Couplings LSQ-RD General Application
LSQ-RD series (1/8",1/4",3/8",1/2") Socket
Medium Pressure Hydraulic Quick Disconnect Couplings LSQ-RD General Application

PART NO.LS￠DHEX1AT
LSQ-RD-01SF2717.5149ZG1/8
LSQ-RD-02SF32241913ZG1/4
LSQ-RD-03SF35.828.32313ZG3/8
LSQ-RD-04SF42.6352917ZG1/2
LSQ-RD-06SF49.5413618ZG3/4
LSQ-RD-08SF59.357.85022ZG1


Medium Pressure Hydraulic Quick Disconnect Couplings LSQ-RD General Application

PART NO.LS￠DHEX1AT
LSQ-RD-01SM3017.5149ZG1/8
LSQ-RD-02SM42241913ZG1/4
LSQ-RD-03SM46.328.32313ZG3/8
LSQ-RD-04SM56.1352917ZG1/2
LSQ-RD-06SM61413618ZG3/4
LSQ-RD-08SM67.357.85022ZG1

Plug
Medium Pressure Hydraulic Quick Disconnect Couplings LSQ-RD General Application

PART NO.LPCHEX2AT
LSQ-RD-01PF2615.5149ZG1/8
LSQ-RD-02PF35181713ZG1/4
LSQ-RD-03PF3821.22113ZG3/8
LSQ-RD-04PF4524.52917ZG1/2
LSQ-RD-06PF50283218ZG3/4
LSQ-RD-08PF61364122ZG1


Medium Pressure Hydraulic Quick Disconnect Couplings LSQ-RD General Application

PART NO.LPCHEX1AT
LSQ-RD-01PM3215.5129ZG1/8
LSQ-RD-02PM38181713ZG1/4
LSQ-RD-03PM4321.21913ZG3/8
LSQ-RD-04PM5224.52317ZG1/2
LSQ-RD-06PM56282918ZG3/4
LSQ-RD-08PM73364122ZG1
