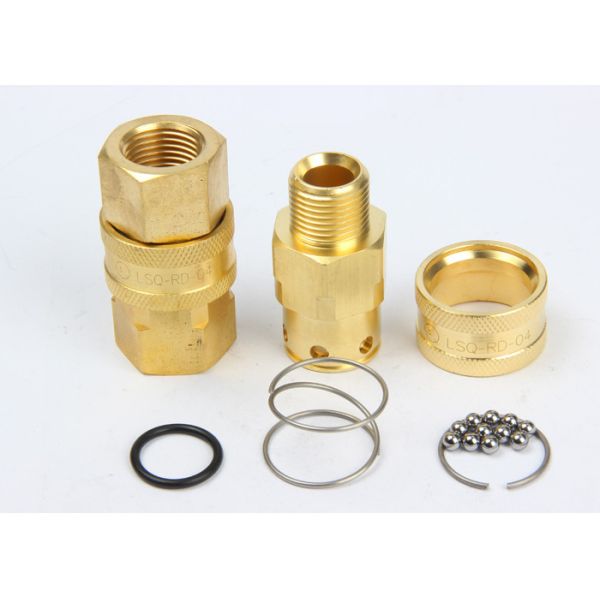

Valveless Structure High Flow Coupler Brass / SS304 LSQ-RD Interchange With NITTO TSP
Valveless Structure High Flow Coupler Brass / SS304 LSQ-RD Interchange With NITTO TSP
Specifications
Brand Name :
SONGQIAO
Model Number :
LSQ-RD
Place of Origin :
Ningbo, China(Mainland)
Supply Ability :
50,000 pcs/day, according the capacity of the assembly workshop
Delivery Time :
within 30 days or as per customers' requirement
Packaging Details :
standard exporting package or as per customers' requests
MOQ :
negotiable
Price :
negotiable
Standard :
Compatible with NITTO TSP Series
WP :
Working pressure to 1000 psi (69 bar)
Material :
Brass or SS304
Size :
1/8"-1/2"
Thread :
BSPP, BSPT, NPT, NPTF, SAE
Connection :
Locking balls
Description

LSQ-RD, High Flow, Valveless Structure, Interchange with NITTO TSP, Hydraulic Couplings in Brass or SS304

Descripton:


Specifications:

Body Size(in) 1/8 1/4 3/8 1/2
Rate Pressure(PSI)
Brass Cplr/Npl 1000 1000 1000 1000
SS Cplr/Npl 2000 2000 1500 1500
Rated Flow(GPM) 3 6 12 12
Temperature Range(std seals) -20℃ to +120℃

LSQ-RD Features:
1. The smooth, open bore with no valving in either half offers minimal pressure drop and allows easy clesning in applications where the same lines are used for more than one media.
2. LSQ-RD couplers and nipples are machined from solid bar stock providing the quality coupling that is durable.
3. LSQ-RD nipples are available in brass and 304 stainless steel as standard product materials.
4. LSQ-RD nipples are available in 304 stainless steel, brass.
5. The LSQ-RD is an “interchange” coupling because the dimensionally and functionally can interchange with similar couplings made by other manufactures.
6. Compatible with NITTO TSP Series.

Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa
Valveless Structure High Flow Coupler Brass / SS304 LSQ-RD Interchange With NITTO TSP
LSQ-RD series (1/8",1/4",3/8",1/2") Socket
Valveless Structure High Flow Coupler Brass / SS304 LSQ-RD Interchange With NITTO TSP

PART NO. LS ￠D HEX1 A T
LSQ-RD-01SF 27 17.5 14 9 ZG1/8
LSQ-RD-02SF 32 24 19 13 ZG1/4
LSQ-RD-03SF 35.8 28.3 23 13 ZG3/8
LSQ-RD-04SF 42.6 35 29 17 ZG1/2
LSQ-RD-06SF 49.5 41 36 18 ZG3/4
LSQ-RD-08SF 59.3 57.8 50 22 ZG1


Valveless Structure High Flow Coupler Brass / SS304 LSQ-RD Interchange With NITTO TSP

PART NO. LS ￠D HEX1 A T
LSQ-RD-01SM 30 17.5 14 9 ZG1/8
LSQ-RD-02SM 42 24 19 13 ZG1/4
LSQ-RD-03SM 46.3 28.3 23 13 ZG3/8
LSQ-RD-04SM 56.1 35 29 17 ZG1/2
LSQ-RD-06SM 61 41 36 18 ZG3/4
LSQ-RD-08SM 67.3 57.8 50 22 ZG1

Plug
Valveless Structure High Flow Coupler Brass / SS304 LSQ-RD Interchange With NITTO TSP

PART NO. LP C HEX2 A T
LSQ-RD-01PF 26 15.5 14 9 ZG1/8
LSQ-RD-02PF 35 18 17 13 ZG1/4
LSQ-RD-03PF 38 21.2 21 13 ZG3/8
LSQ-RD-04PF 45 24.5 29 17 ZG1/2
LSQ-RD-06PF 50 28 32 18 ZG3/4
LSQ-RD-08PF 61 36 41 22 ZG1


Valveless Structure High Flow Coupler Brass / SS304 LSQ-RD Interchange With NITTO TSP

PART NO. LP C HEX1 A T
LSQ-RD-01PM 32 15.5 12 9 ZG1/8
LSQ-RD-02PM 38 18 17 13 ZG1/4
LSQ-RD-03PM 43 21.2 19 13 ZG3/8
LSQ-RD-04PM 52 24.5 23 17 ZG1/2
LSQ-RD-06PM 56 28 29 18 ZG3/4
LSQ-RD-08PM 73 36 41 22 ZG1
