European Type Parker Quick Disconnect Couplings Pneumatic In Brass LSQ-DG
European Type Parker Quick Disconnect Couplings Pneumatic In Brass LSQ-DG
Specifications
Brand Name :
SONGQIAO
Model Number :
LSQ-DG
Place of Origin :
Ningbo,China(Mainland)
Payment Terms :
L/C, T/T
Supply Ability :
50,000pcs/day, according the capacity of the assembly workshop
Delivery Time :
within 30 days or as per customers' requirement.
Packaging Details :
standard exporting package or as per customers' requests.
MOQ :
negotiable
Price :
negotiable
Standard :
Compatible with CEJN 320 Series, Rectus 25KA and 26KA series.
Material :
Brand
WP :
Working pressures to 1MPA
WT :
-20℃ to +120℃.
Description

LSQ-DG European Type, Pneumatic couplings in Brass

Descripton:

LAO SINGLE HANDED AND SEMIAUTOMATIC TYPE QUICK COUPLING(STEEL)
→ Features:Single operation, it is widely used in switzerland Market.
→ Advantages: Single operation, steel valve locking system.
→ Application: pneumatic tools, producing and assembly lines, machinery equipments.
→ Interchangeability: Parker 50 series, Rectus 22KA series CEJN 300 Series.
→ Working Pressure: 1.0Mpa.
→ Working Temperature: -20℃ to +120℃.

European Type Parker Quick Disconnect Couplings Pneumatic In Brass LSQ-DG

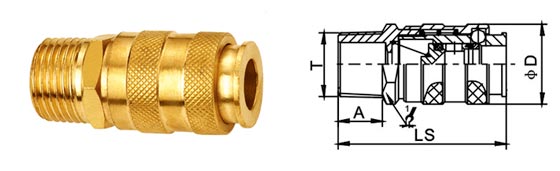

PARTNO. LS ￠D HEX1 A T
LSQ-DG-02SM 52.5 25 22 13 1/4
LSQ-DG-03SM 52.5 25 22 13 3/8
LSQ-DG-04SM 54.4 25 22 14 1/2

European Type Parker Quick Disconnect Couplings Pneumatic In Brass LSQ-DG

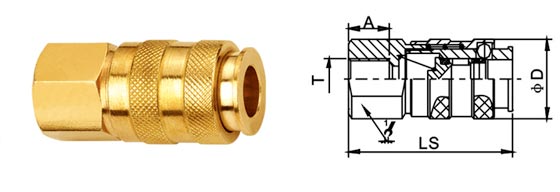

PARTNO. LS ￠D HEX1 A T
LSQ-DG-02SF 52.5 25 22 13 1/4
LSQ-DG-03SF 52.5 25 22 13 3/8
LSQ-DG-04SF 53.5 25 24 14 1/2

European Type Parker Quick Disconnect Couplings Pneumatic In Brass LSQ-DG

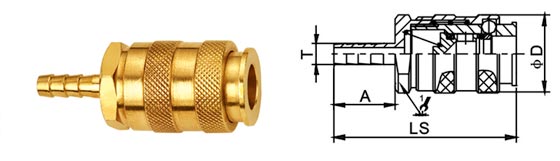

PARTNO. LS ￠D HEX1 A T
LSQ-DG-02SH 64.5 25 22 25 9
LSQ-DG-03SH 69.5 25 22 30 10.5
LSQ-DG-04SH 69.5 25 22 30 13

European Type Parker Quick Disconnect Couplings Pneumatic In Brass LSQ-DG

PARTNO. LP C HEX2 A T
LSQ-DG-02PM 40 21 14 13 1/4
LSQ-DG-03PM 40 21 17 13 3/8
LSQ-DG-04PM 42 21 22 14 1/2

European Type Parker Quick Disconnect Couplings Pneumatic In Brass LSQ-DG

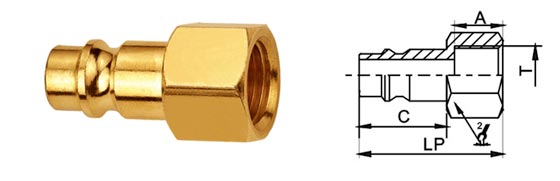

PARTNO. LP ￠D HEX2 A T
LSQ-DG-02PF 37 21 17 13 1/4
LSQ-DG-03PF 38 21 19 13 3/8
LSQ-DG-04PF 38 21 24 14 1/2

,European Type Parker Quick Disconnect Couplings Pneumatic In Brass LSQ-DG

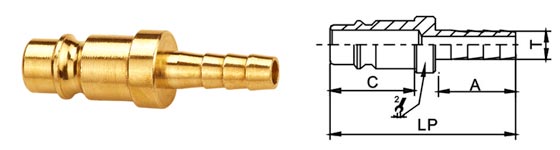

PARTNO. LP C HEX2 A T
LSQ-DG-02PH 51 21 ￠14 25 9
LSQ-DG-03PH 56 21 ￠14 30 10.5
LSQ-DG-04PH 56 21 ￠14 30 13
