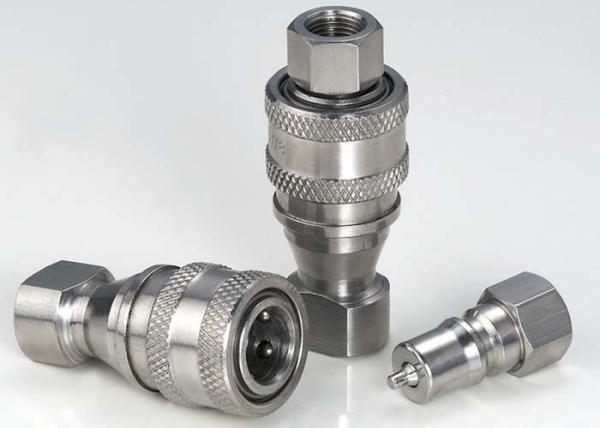

Stainless Steel Hydraulic Quick Connect Couplings Female Thread KZF ISO7241-B
Stainless Steel Hydraulic Quick Connect Couplings Female Thread KZF ISO7241-B
Specifications
Brand Name :
SONGQIAO
Model Number :
KZF
Place of Origin :
Ningbo,China(Mainland)
Supply Ability :
50,000pcs/day, according the capacity of the assembly workshop
Delivery Time :
within 30 days or as per customers' requirement.
Packaging Details :
standard exporting package or as per customers' requests.
MOQ :
negotiable
Price :
negotiable
Standard :
ISO 7241-1 series “B”, poppet valve
WP :
Working pressures to 1,000 psi (69 bar)
Material :
Stainless steel
Size :
1/8' - 2'
Thread :
BSPP, BSPT, NPT, NPTF, SAE
Connection :
Locking balls
Description

KZF, ISO7241-B Hydraulic Couplings in FeMale Thread, Stainless Steel SS304

Descripton:
KZF Close Type Hydraulic Quick Coupling (stainless steel 304)
KZF couplings, are used across the spectrum of hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable. Primarily used with hydraulic fluid. KZF couplings are also used with chemicals, water, steam, and some gases.

Specifications

Body Size(in)1/81/43/81/23/411(1/4)1(1/2)2
Rated Pressure(PSI)200020001500150015001000100010001000
Rated Flow(GPM)13612285075100150
Temperature Range(std seals)-20℃ to +120℃
Standard seal materialVITON


KZF Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Dependable ball-locking mechanism holds the mating halves together.
4. Socket and plug are precision machined from solid bar stock.
5. KZF series conforms to the standard of ISO 7241-B
6. Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.
Stainless Steel Hydraulic Quick Connect Couplings Female Thread KZF ISO7241-B
KZF (1/8",1/4",3/8",1/2") KZF (3/4",1",11/4",12/2",2")

Socket

Stainless Steel Hydraulic Quick Connect Couplings Female Thread KZF ISO7241-B

ISOPARTNO.LS￠DHEX1AT
5KZF-01SF4824148G1/8
6.3KZF-02SF58271912.5ZG1/4
10KZF-03SF65352213ZG3/8
12.5KZF-04SF72.5452914ZG1/2
20KZF-06SF88543617ZG3/4
25KZF-08SF10264.54123ZG1
31.5KZF-10SF115695427ZG1-1/4
40KZF-12SF124796027ZG1-1/2
50KZF-16SF1321027730ZG2
Note: Only size 01 to 08 conform to the standard of ISO 7241-B


Plug
Stainless Steel Hydraulic Quick Connect Couplings Female Thread KZF ISO7241-B

ISOPARTNO.LPdCHEX2AT
5KZF-01PF2910.819148G1/8
6.3KZF-02PF3614.222.51712.5ZG1/4
10KZF-03PF4019252213ZG3/8
12.5KZF-04PF4423.5282714ZG1/2
20KZF-06PF5231.4363617ZG3/4
25KZF-08PF6237.8404123ZG1
31.5KZF-10PF7045455227ZG1-1/4
40KZF-12PF7550496027ZG1-1/2
50KZF-16PF8070527730ZG2
Note: Only size 01 to 08 conform to the standard of ISO 7241-B


Coupling Fitting
Stainless Steel Hydraulic Quick Connect Couplings Female Thread KZF ISO7241-B

ISOPART NO.L￠DHEX1HEX2T
5KZF-0158.5241414G1/8
6.3KZF-0272.5281917ZG1/4
10KZF-0380.5352222ZG3/8
12.5KZF-0489452927ZG1/2
20KZF-06105543636ZG3/4
25KZF-08124.564.54141ZG1
31.5KZF-10140.5695452ZG1-1/4
40KZF-12150.5796060ZG1-1/2
50KZF-16160.51027777ZG2
Note: Only size 01 to 08 conform to the standard of ISO 7241-B
