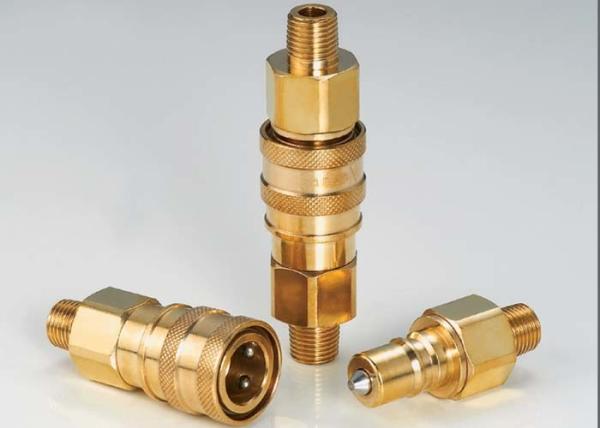

Thread Brass Hydraulic Quick Connect Couplings , Poppet Valve Male Hydraulic Coupler ISO7241-B
Thread Brass Hydraulic Quick Connect Couplings , Poppet Valve Male Hydraulic Coupler ISO7241-B
Specifications
Brand Name :
SONGQIAO
Model Number :
LSQ-S8
Place of Origin :
Ningbo,China(Mainland)
Supply Ability :
50,000pcs/day, according the capacity of the assembly workshop
Delivery Time :
within 30 days or as per customers' requirement.
Packaging Details :
standard exporting package or as per customers' requests.
MOQ :
negotiable
Price :
negotiable
Standard :
ISO 7241-1 series “B”, poppet valve
WP :
Working pressures to 1,000 psi (69 bar)
Material :
Brass
Size :
1/4' - 1'
Thread :
BSPP, BSPT, NPT, NPTF, SAE
Connection :
Locking balls
Description

LSQ-S8, ISO7241-B Hydraulic Couplings in Male Thread, Brass

Descripton:

LSQ-S8 medium-pressure high performance pneumatic and hydraulic quick coupling(BRASS)
Applications:LSQ-S8 couplings,are used across the spectrum of hydraulic applications,These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment,and a loss of fluid is undesirable.LSQ-S8 are used on construction Equipment,forestry equipment,agricultural Machinery,oil tools,steel mill machinery,and other demanding hydraulic applications.

Specifications

Body Size(in) 1/4 3/8 1/2 3/4 1
Rated Pressure(PSI) 1000 1000 1000 1000 1000

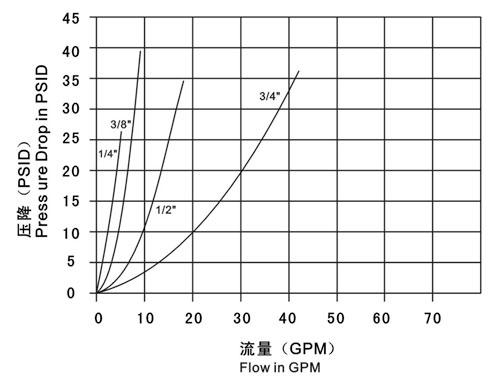

Rated Flow(GPM) 3 6 12 28 50
Temperature Range -20℃ to +120℃
Stander seal material NBR

LSQ-S8 Series Couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Dependable ball-locking mechanism holds the mating halves together.
4. Socket and plug are precision machined from solid bar stock.
5. LSQ-S8 series conforms to the standard of ISO 7241-B.
6. Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series

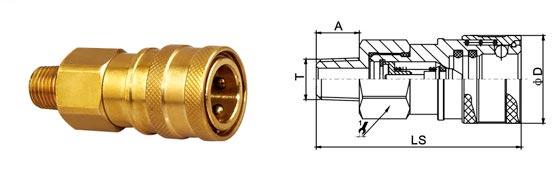

Thread Brass Hydraulic Quick Connect Couplings , Poppet Valve Male Hydraulic Coupler ISO7241-B

Thread Brass Hydraulic Quick Connect Couplings , Poppet Valve Male Hydraulic Coupler ISO7241-B

ISO PARTNO. LS ￠D HEX1 A T
6.3 LSQ-S8-02SM 62.5 27 22 13 ZG1/4 NPT1/4
10 LSQ-S8-03SM 68.5 35 27 13 ZG3/8 NPT3/8
12.5 LSQ-S8-04SM 77.5 45 30 16 ZG1/2 NPT1/2
20 LSQ-S8-06SM 93.5 54 36 18 ZG3/4 NPT3/4
25 LSQ-S8-08SM 98 64.5 41 20

ZG1 NPT1

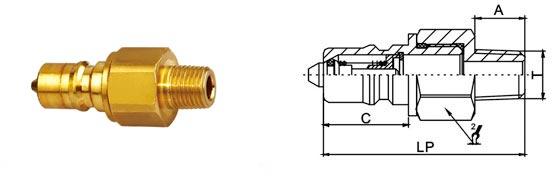

Thread Brass Hydraulic Quick Connect Couplings , Poppet Valve Male Hydraulic Coupler ISO7241-B

ISO PARTNO. LP d C HEX2 A T
6.3 LSQ-S8-02PM 53 14.2 22.5 22 13 ZG1/4 NPT1/4
10 LSQ-S8-03PM 55.5 19 25 27 13 ZG3/8 NPT3/8
12.5 LSQ-S8-04PM 64.5 23.5 28 30 16 ZG1/2 NPT1/2
20 LSQ-S8-06PM 74.5 31.4 36 36 18 ZG3/4 NPT3/4
25 LSQ-S8-08SM 78 37.8 40 41 20 ZG1 NPT1

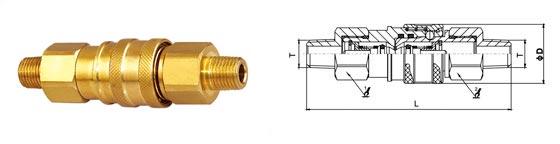

Thread Brass Hydraulic Quick Connect Couplings , Poppet Valve Male Hydraulic Coupler ISO7241-B

ISO PARTNO. L ￠D HEX1 HEX2 T
6.3 LSQ-S8-02 94 27 22 22 ZG1/4 NPT1/4
10 LSQ-S8-03 99 35 27 27 ZG3/8 NPT3/8
12.5 LSQ-S8-04 115.5 45 30 30 ZG1/2 NPT1/2
20 LSQ-S8-06 133 54 36 36 ZG3/4 NPT3/4
25 LSQ-S8-08 136.5 64.5 41 41 ZG1 NPT1
