Semi - Automatic Hydraulic Quick Release Coupling Press Button LSQ-AN In SS304
Semi - Automatic Hydraulic Quick Release Coupling Press Button LSQ-AN In SS304
Specifications
Brand Name :
SONGQIAO
Model Number :
LSQ-AN
Place of Origin :
Ningbo, China(Mainland)
Supply Ability :
50,000 pcs/day, according the capacity of the assembly workshop
Delivery Time :
within 30 days or as per customers' requirement
Packaging Details :
standard exporting package or as per customers' requests
MOQ :
negotiable
Price :
negotiable
Standard :
Compatible with Chinese standard
WP :
Working pressure to 870 psi (60 bar)
Material :
SS304
Size :
1/4
Thread :
BSPP, BSPT, NPT, NPTF, SAE
Connection :
Locking balls
Description

LSQ-AN, Press Button, Semi-Automatic Type, Hydraulic Quick Relaese Couplings in SS304

Descripton:

LSQ-AN press button semi-automatic type quick coupling(stainless steel)
→ Features: Single handed operation press botton type.
→ Advantages: Single handed insert directly into coupling. Press button to disconnect, it suitable used in restricted space.
→ Application: Oil, Chemical line.
→ Working pressure:6Mpa.
→ Working temperature: -20℃ to +120℃

Semi - Automatic Hydraulic Quick Release Coupling Press Button LSQ-AN In SS304

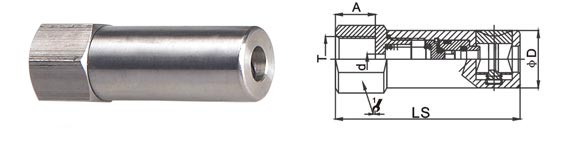

PARTNO. LS ￠D HEX1 A T d
LSQ-AN-02SF 53.5 16.6 17 11.5 G1/4 ￠3


Semi - Automatic Hydraulic Quick Release Coupling Press Button LSQ-AN In SS304

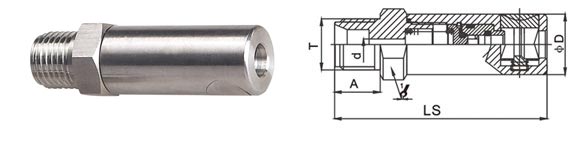

PARTNO. LS ￠D HEX1 A T d
LSQ-AN-02SM 58.3 16.6 17 12.5 M14*1.5 ￠3


Semi - Automatic Hydraulic Quick Release Coupling Press Button LSQ-AN In SS304

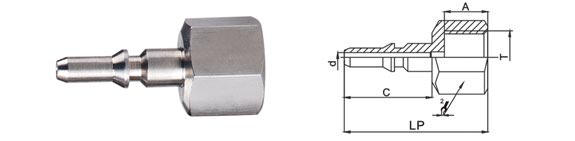

PARTNO. LP C HEX2 A T d
LSQ-AN-02PF 38 23.2 17 11.5 G1/4 ￠2.5
