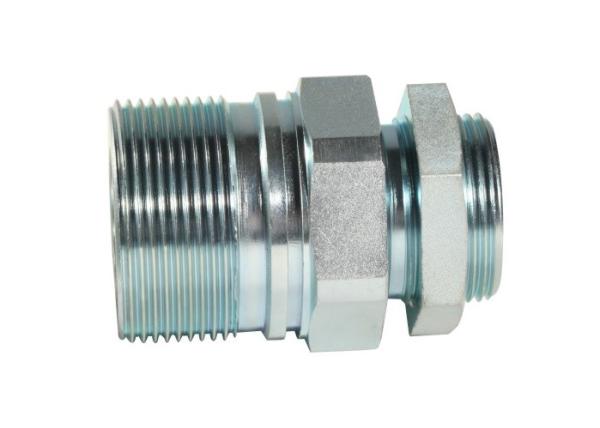

Steel Hydraulic Under Pressure Screw Coupling Compatible With FASTER CVE Series
Steel Hydraulic Under Pressure Screw Coupling Compatible With FASTER CVE Series
Steel Hydraulic Under Pressure Screw Coupling Compatible With FASTER CVE Series
Steel Hydraulic Under Pressure Screw Coupling Compatible With FASTER CVE Series
Steel Hydraulic Under Pressure Screw Coupling Compatible With FASTER CVE Series
Steel Hydraulic Under Pressure Screw Coupling Compatible With FASTER CVE Series
Specifications
Brand Name :
QPE
Model Number :
KSG-SF
Certification :
ISO9000
Place of Origin :
CHINA
MOQ :
300
Price :
Negotiable
Supply Ability :
90,000pcs/week, according the capacity of the assembly workshop
Delivery Time :
Within 30 days or as per customers' requirement.
Packaging Details :
Standard exporting package or as per customers' requests.
Material : :
Carbon steel
Size : :
3/4' - 1"
Thread : :
BSP OR NPT
Connection : :
Thread lock
Standard : :
Compatible with faster standards
WP : :
Working pressures to 5000 psi
Description


KSG Series Steel Hydraulic Under Pressure Screw Coupler Compatible with FASTER CVE series​

Feature:

1. Connexion by screwing together the two parts

2. Disconnexion by unscrewing the two parts

3. Shut off by poppet valve

4. Connectable under residual pressure

5. Disconnexion under residual pressure

6. Interchangeability with FASTER CVE series, HOLMBURY VCR series.

Technical Specification:

1. High grade carbon steel with heat treated wear parts

2. NBR Backup ring in PTFE

3. Temperature Range (-25°C to +125°C)

4. Pressure connected tested According t ISO 7241-2 specifications

Fields of application:

KSG Series Steel Hydraulic Under Pressure Screw Coupling is mainly applied for Agriculture, Industry, hydraulic tools, Earth moving, Building & Construction.

Part No. ISO Thread

Size

(inch)

Working Pressure

(PSI)

Rated Flow

(L/min)

Temperature Range

(-25°C to +125°C)
KSG -06 DN20 BSPT 3/4 BSPP 3/4 NPT3/4 3/4 5000 130
KSG -08 DN25 BSPT 1 BSPP 1 NPT1 1 4350 130

Female:

Steel Hydraulic Under Pressure Screw Coupling Compatible With FASTER CVE Series

PART NO. Thread E F G
(mm.) (mm.) (mm.)
KSG-06SF G3/4 78 46 52
KSG-08SF G1 83 55 63
