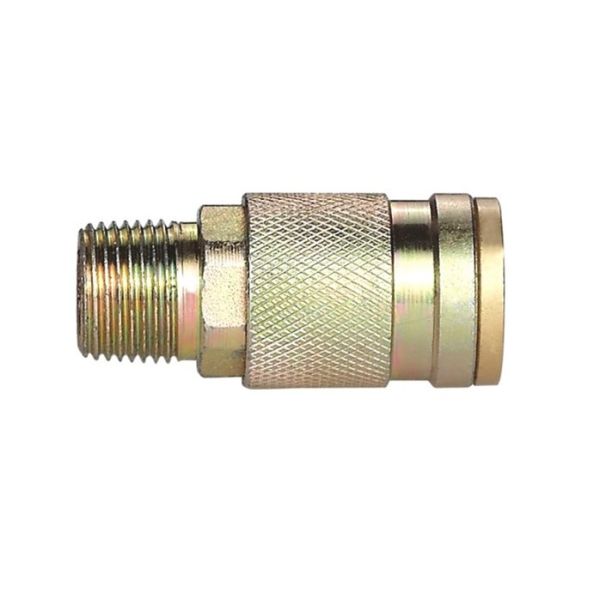

CAM 250PSI Quick Release Pneumatic Connector , S Quick Release Pipe Coupling
CAM 250PSI Quick Release Pneumatic Connector , S Quick Release Pipe Coupling
CAM 250PSI Quick Release Pneumatic Connector , S Quick Release Pipe Coupling
CAM 250PSI Quick Release Pneumatic Connector , S Quick Release Pipe Coupling
CAM 250PSI Quick Release Pneumatic Connector , S Quick Release Pipe Coupling
CAM 250PSI Quick Release Pneumatic Connector , S Quick Release Pipe Coupling
CAM 250PSI Quick Release Pneumatic Connector , S Quick Release Pipe Coupling
CAM 250PSI Quick Release Pneumatic Connector , S Quick Release Pipe Coupling
CAM 250PSI Quick Release Pneumatic Connector , S Quick Release Pipe Coupling
CAM 250PSI Quick Release Pneumatic Connector , S Quick Release Pipe Coupling
Specifications
Brand Name :
QPE
Model Number :
S SERIES
Certification :
ISO9000
Place of Origin :
CHINA
MOQ :
300
Price :
Negotiable
Supply Ability :
90,000 pcs/week, according the capacity of the assembly workshop
Delivery Time :
Within 30 days or as per customers' requirement
Packaging Details :
Standard exporting package or as per customers' requests
Material : :
Carbon steel
Size : :
1/4"
Thread : :
BSPP, BSPT, NPT, NPTF, SAE
Locking Device: :
CAM
WP : :
Working pressure to 250psi
WT: :
-10℃ to +165℃
Standard : :
Schrader Interchange
Product Name :
Quick Release Pneumatic Connector
Description

250PSI Pneumatic Quick Release Coupling, "S" Quick connect Couplings​

Feature:

* Engineered for speedy coupling and uncoupling. To lock-push in; to unlock-give the coupler sleeve a 1/8 tur Designed to protect against accidental uncoupling.


* A variety of port configurations are available to meet specific needs.


* Standard Twist-Lock couplings are ideal for low to medium air flows, such as air tools.


* Standard Seals are Buna-N(Nitrile).


* Constructed of Zinc bodies and Zinc plated steel sleeves and nipples.


* Interchanges with Schrader Twist-Lock style couplings.

Specification:

Body size 1/4
Rated Pressure (PSI) 250
Temperature Range (Nitrile seals): -10° to +165°F
Locking Devices CAM

CAM 250PSI Quick Release Pneumatic Connector , S Quick Release Pipe Coupling

Body Size(In.) Part No. Steel Thread Size NPT Dimensions(in.)
Overall Length		 Dimensions(in.)
Hex Size		 Dimensions(in.)
Largest Diameter
A B C
1/4 SSF2-N02 1/4-18 1.875 0.69 1.12
1/4 SSF2-N03 3/8-18 1.875 0.69 1.12

CAM 250PSI Quick Release Pneumatic Connector , S Quick Release Pipe Coupling
Body Size(In.) Part No. Steel Thread Size NPT Dimensions(in.)
Overall Length		 Dimensions(in.)
Hex Size		 Dimensions(in.)
Largest Diameter
A B C
1/4 SSM2-N02 1/4-18 2.125 0.69 1.12
1/4 SSM2-N03 3/8-18 2.125 0.69 1.12

CAM 250PSI Quick Release Pneumatic Connector , S Quick Release Pipe Coupling

Body Size(In.) Part No. Steel Thread Size NPT Dimensions(in.)
Overall Length		 Dimensions(in.)
Hex Size		 Dimensions(in.)
Largest Diameter
A B C
1/4 SPF2-N01 1/8-27 1.53 0.56 0.65
1/4 SPF2-N02 1/4-18 1.81 0.69 0.79
CAM 250PSI Quick Release Pneumatic Connector , S Quick Release Pipe Coupling
