Specifications
Brand Name :
QPE
Model Number :
T Series / Parker intherchange
Certification :
ISO9000
Place of Origin :
CHINA
MOQ :
300
Price :
Negotiable
Supply Ability :
90,000pcs/week, according the capacity of the assbemly workshop
Delivery Time :
Within 30 days or as per customers' requirement.
Packaging Details :
Standard exporting package or as per customers' requests.
Material : :
Steel
Size: :
1/4"-1/2"
WT : :
-40C to +250C
WP : :
300psi
Standard : :
Parker intherchange
Locking :
6 balls
Description


Pneumatic Quick Couplings, Tru-Flate Design, Manual sleeve, single shut off

Specification:
Body Size: 1/4 3/8 1/2
Rated Pressure (psi): 300
Temperature Range (STD seals): -40º to +250º F
Locking Device: 6 balls / Locking Pin
Disconnected (coupler only): not recommended

Features:
*"T" Series Pneumatic Quick Couplings are the original Tru-Flate design.
*"T" Series Pneumatic Quick Couplings unique design has been field proven as a long lasting, high performance coupling especially when used with pneumatic tools.
*"T" Series Pneumatic Quick Couplings Standard seals are Buna-N (Nitrile). See the coupling Selection and Ordering Information Guide at the beginning of Selection A and the Fluid Compatibility Chart at the end of this catalog for optional materials.

Manual couplers with 6 locking balls
Female Pipe Thread
Manual Sleeve Pneumatic Quick Connect Coupling Tru - Flate Single Shut Off

Body Size(In.)Part No.Thread Size NPTDimensions(in.) Overall LengthDimensions(in.) Hex SizeDimensions(in.) Largest Diameter
ABC
1/4TSF2-N011/8-271.830.750.88
1/4TSF2-N021/4-181.830.750.88
1/4TSF2-N033/8-181.950.810.94
3/8TSF3-N021/4-182.220.881.06
3/8TSF3-N033/8-182.280.881.06
3/8TSF3-N041/2-142.551.001.16
1/2TSF4-N033/8-182.741.001.19
1/2TSF4-N041/2-142.961.001.19
1/2TSF4-N063/4-143.191.251.44

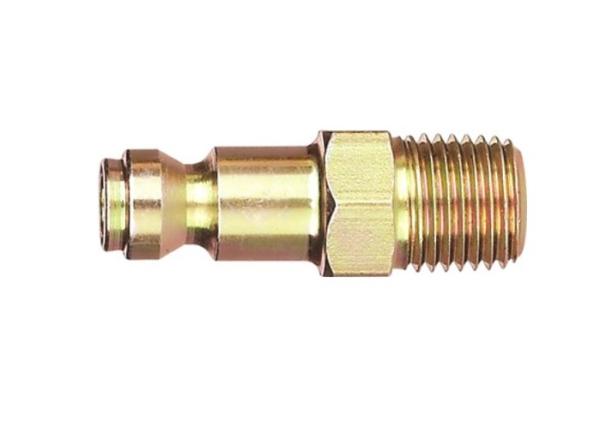

Male Pipe Thread
Manual Sleeve Pneumatic Quick Connect Coupling Tru - Flate Single Shut Off

Body Size(In.)Part No.Thread Size NPTDimensions(in.) Overall LengthDimensions(in.)
Hex Size		Dimensions(in.) Largest Diameter
ABC
1/4TSM2-N011/8-271.890.750.88
1/4TSM2-N021/4-182.050.750.88
1/4TSM2-N033/8-182.080.750.88
3/8TSM3-N021/4-182.360.881.06
3/8TSM3-N033/8-182.390.881.06
3/8TSM3-N041/2-142.550.881.06
1/2TSM4-N033/8-182.931.001.19
1/2TSM4-N041/2-143.081.001.19
1/2TSM4-N063/4-143.211.131.30

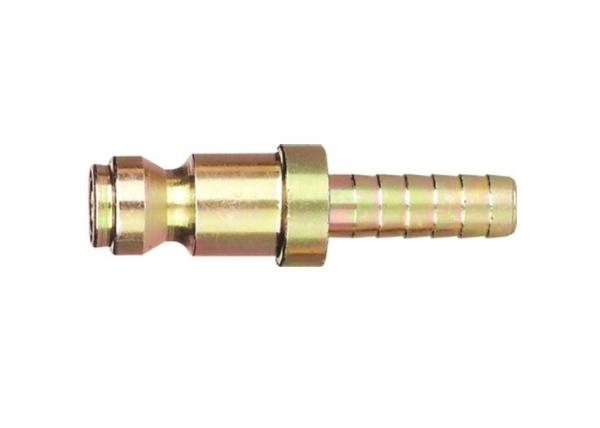

Standrad Hose Barb
Manual Sleeve Pneumatic Quick Connect Coupling Tru - Flate Single Shut Off
Body Size(In.)Part No.Hose l.d.Dimensions(in.) Overall LengthDimensions(in.)
Hex Size		Dimensions(in.)
Largest Diameter
ABC
1/4TSH2-1/41/42.490.750.88
1/4TSH2-5/165/162.490.750.88
1/4TSH2-3/83/82.490.750.88
3/8TSH3-3/83/82.860.881.06
3/8TSH3-1/21/23.080.881.06
1/2TSH4-3/83/83.371.001.19
1/2TSH4-1/21/23.621.001.19
1/2TSH4-3/43/43.961.001.19
