Heat Shrink Quick Wire Connectors / Waterproof Solder Seal Wire Connectors
Heat Shrink Quick Wire Connectors / Waterproof Solder Seal Wire Connectors
Heat Shrink Quick Wire Connectors / Waterproof Solder Seal Wire Connectors
Heat Shrink Quick Wire Connectors / Waterproof Solder Seal Wire Connectors
Specifications
Brand Name :
VSELE
Place of Origin :
China
Payment Terms :
T/T, Paypal, Western union, L/C etc.
Delivery Time :
1-2 weeks
Name :
Waterproof Heat Shrink Butt Connectors
Material :
nylon
Color :
red/blue/yellow
Type :
Heat Shrink Butt Connectors
Features :
Waterproof and flame retardant
Conductive material :
copper
MOQ :
1000pcs
Price :
0.01-1
Packaging Details :
plastic bag
Supply Ability :
100000pcs per day
Description

Heat Shrink Butt Connectors Waterproof Electrical Wire Splice Cable Crimp Terminals Solder Seal Wire Connectors

Waterproof Heat Shrink Butt Connectors

Product description

Material: nylon

Conductive material:copper

Type: Heat Shrink Butt Connectors

Features

1. Made with heat shrink material, crimp with a true plated copper core.
2. When properly heated and shrunk, they provide a seal that is resistant to water, steam, salt and other contaminants.
3. Heat shrink insulated connectors will provide improved pullout strength and strain relief.
4. The translucent heat shrink material allows visual inspection of the connection, and included almost frequently-used connectors' size.

Usage

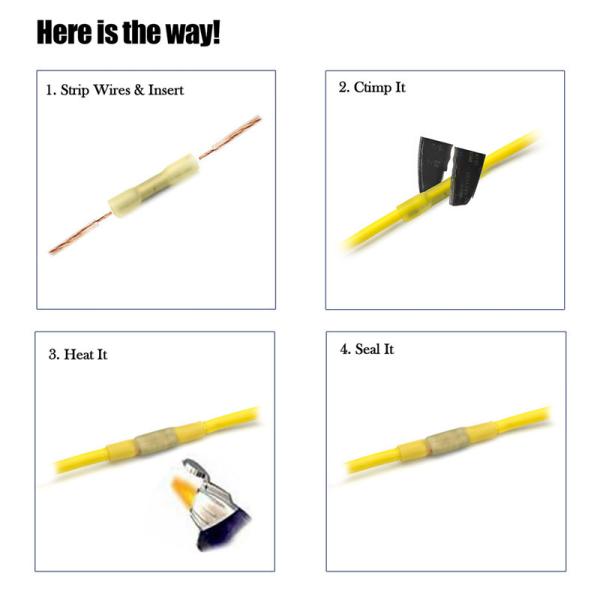

For best results, use a hot air gun until it reduces in size and the adhesive flows, filling gaps within the terminal. Continually rotate the connector when apply heat to make it evenly heated.

Function

Excellent splice for marine, automotive, outdoor, or harsh, environment use.

Heat Shrink Quick Wire Connectors / Waterproof Solder Seal Wire Connectors

Item.No Wire range Dimension Imax Color
AWG mm² I(mm) Dφ(mm) L(mm)
BHT5 12-10 4-6 42 6.93 3.6 48A yellow
BHT2 16-14 1.5-2.5 37.3 5.67 2.4 27A blue
BHT1.25 22-16 0.5-1.5 37.3 4.75 1.7 19A red
BHT0.5 22-20 0.3-0.5 26.5 3.3 1 9A yellow

Heat Shrink Quick Wire Connectors / Waterproof Solder Seal Wire Connectors
