Full Female Male Quick Wire Connectors / Insulated Bullet Connectors Electrical Crimp
Full Female Male Quick Wire Connectors / Insulated Bullet Connectors Electrical Crimp
Specifications
Brand Name :
VSELE
Place of Origin :
China
Payment Terms :
T/T, Paypal, Western union, L/C etc.
Delivery Time :
1-2 weeks
Name :
Bullet Shape Male Pre-insulation Terminal
Shell material :
PVC
Color :
Red/blue/yellow/Black/Green
Wire material :
Brass
Product process :
Surface tin plating
Imax :
10A/15A/24A
MOQ :
1000pcs
Price :
0.01-1
Packaging Details :
plastic bag
Supply Ability :
100000pcs per day
Description

Bullet Shape Male Pre-insulation Terminal

10 Female + 10 Male=20pcs yellow

10 Female + 10 Male=20pcs red

10 Female + 10 Male=20pcs green

10 Female + 10 Male=20pcs blue

10 Female + 10 Male=20pcs black

Product description

Shell material:Flame retardant PVC

Wire material:Brass

Product process:Surface tin plating

Product features

Strong toughness, small size, easy to insert and remove without deformation
The use of high-quality copper core, large load, good conductivity, low resistivity, stable and reliable wiring
The jacket adopts PVC material, flame retardant insulation, anti-aging, stable performance
Bullet-type male and female docking is stable, the female-shaped end slot design, convenient for the male head to shrink naturally

Full Female Male Quick Wire Connectors / Insulated Bullet Connectors Electrical Crimp

Cable size0.5～1.5mm2(A.W.G. 22～16) Max current:Imax=10A Material:copper
Item No
Thickness of material
Dimension(mm)
Color
dφ
Bφ
Dφ
H
L
FRD 1.25-156
0.4
4
6.3
1.7
13
24.5
red
Cable size1.5～2.5mm2(A.W.G. 16～14) Max current:Imax=15A Material:copper
Item No
Thickness of material
Dimension(mm)
Color
dφ
Bφ
Dφ
H
L
FRD 2-156
0.4
4
6.3
2.3
14
24.5
blue
FRD 2-195
0.4
5
7
2.3
14
25.5
Cable size4～6mm2(A.W.G. 12～10) Max current:Imax=24A Material:copper
Item No
Thickness of material
Dimension(mm)
Color
dφ
Bφ
Dφ
H
L
FRD 5.5-195
0.4
5
7
3.4
14
29.5
yellow

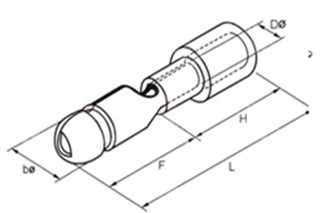

Full Female Male Quick Wire Connectors / Insulated Bullet Connectors Electrical Crimp

Cable size0.5～1.5mm2(A.W.G 22～16) Max current:Imax=10A Material:copper
Item No
Thickness of material
Dimension(mm)
Color
dφ
F
Dφ
H
L
MPD 1.25-156
0.4
4
11
1.7
10
21
red
Cable size1.5～2.5mm2(A.W.G 16～14) Max current:Imax=15A Material:copper
Item No
Thickness of material
Dimension(mm)
Color
dφ
F
Dφ
H
L
MPD 2-156
0.4
4
11
2.3
10
21
blue
　
 　 　 　 　 　 　
Cable size4～6mm2(A.W.G 12～10) Max current:Imax=24A Material:copper
Item No
Thickness of material
Dimension(mm)
Color
dφ
F
Dφ
H
L
MPD 5.5-195
0.4
5
12
3.4
13
25
Yellow

Why Choose us
1. Professional operation experience.
2. The sizes all can be customised.
3. Sample for your reference available.
4. Low MOQ, Low Price.
5. Safe packing and prompt delivery
6. Can be packaged according to customer needs
The packaging marks the customer's logo
Can be customized according to customer design and demand for new products

Payment term:
1. Payment: Paypal, Western Union, Aliexpress, T/T,Credit card, ESCROW,Alipay
2. Port of loading: Ningbo,Wenzhou or Shanghai Port
3. Discounts: offered based on order quantities
4. Delivery time: 3-10 days according to order quantities.battery cable ends
