Electrical Spade Connectors Male And Female Wiring Cable Plug Pre Insulation
Electrical Spade Connectors Male And Female Wiring Cable Plug Pre Insulation
Specifications
Brand Name :
VSELE
Place of Origin :
CHINA
Payment Terms :
T/T, Paypal, Western union, L/C etc.
Delivery Time :
5~30days According to the order quantity
Name :
Bullet Shape Female Pre-insulation Terminal
Product material :
Brass
Casing material :
Flame retardant PVC
Tin plating :
Environmentally friendly tin plating
Product features :
Good conductivity and strong corrosion resistance
Color :
red/blue/yellow
MOQ :
100pcs
Price :
0.01-2
Supply Ability :
10000pcs per day
Description

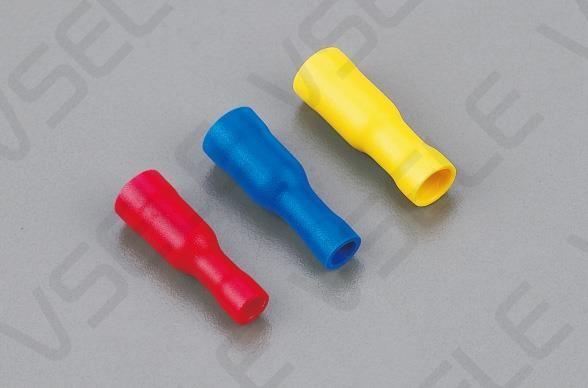

Bullet Shape Female Pre-insulation Terminal

Product parameters

Product material: brass
Casing material: flame retardant PVC
Tin plating: environmentally friendly tin plating

Features

Embedded design of female end, easy to dock with male
The joint is made of high-quality thick copper, with good conductivity, and the surface is tinned, which is bright and beautiful
Rugged and long life

The use of high-quality copper core, large load, good conductivity, low resistivity, stable and reliable wiring

Item No . Wire Range
mm ²(AWG)		 Thickness
Of Material
(mm)		 Dimension (mm) Color
bØ F DØ dØ H L
MPD 1.25-156 0.5-1.5
22-16		 0.4 4.0 16.0 2.7 1.7 13.0 24.5
MPD 2-156 1.5-2.5
16-14		 0.4 4.0 6.3 3.3 2.3 14.0 24.5
MPD 2-195 0.4 5.0 7.0 3.3 2.3 14.0 24.5
MPD 5.5-195 4-6
12-10		 0.4 5.0 7.0 4.5 3.4 14.0 29.5

Electrical Spade Connectors Male And Female Wiring Cable Plug Pre Insulation

We also can supply: High quality terminal,connector and cable lugs
Types available:
RV series, RNB series, SV series, SNB series, V series, PTV series, PTN series, MPD series, FRD series, FDD series, MDD series, FDFD series, DBV series, PBDD series, BV series, BN series, E series, TE series, EN series, SC cable lugs series, GTY series
