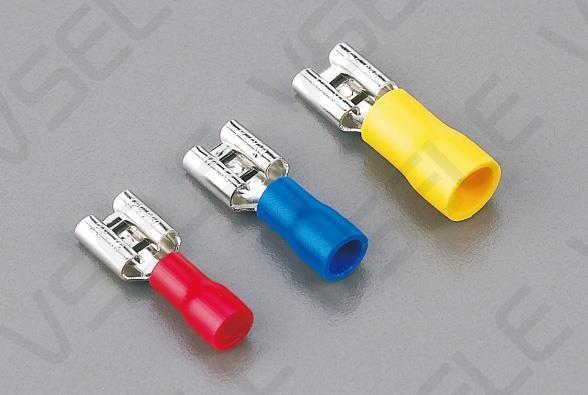

Splice Female Terminal Lugs Reed Good Conductivity Strong Corrosion Resistance
Splice Female Terminal Lugs Reed Good Conductivity Strong Corrosion Resistance
Specifications
Brand Name :
VSELE
Place of Origin :
CHINA
Payment Terms :
T/T, Paypal, Western union, L/C etc.
Delivery Time :
5~30days According to the order quantity
Name :
Female Pre-insulation Splice
Material :
Brass
Color :
red/blue/yellow
Casing material :
Flame retardant PVC
Tin plating :
environmentally friendly tin plating
Product features: :
Good conductivity and strong corrosion resistance
MOQ :
100pcs
Price :
0.01-2
Supply Ability :
10000pcs per day
Description

Female Pre-insulation Splice

Product description

Product material: brass
Casing material: flame retardant PVC
Tin plating: environmentally friendly tin plating
Product features: good conductivity and strong corrosion resistance

Features

Made of brass, good conductivity and strong stability
The casing is made of PVC material, which has the characteristics of insulation and flame retardant
Strong toughness, small size, easy to insert and remove without deformation

Item No . Wire Range
mm2 (AWG)		 NEMA
Tab		 Thickness
Of Material
(mm)		 Dimension (mm) Color
B L F H D d
FDD 1.25-110(8) 0.5-1.5
(22-16)		 0.8×2.8 0.30 3.8 19.0 6.4 10.0 3.8 1.7
FDD 1.25-187(8) 0.8×4.75 0.35 5.6 19.0 6.5
FDD 1.25-250 0.8×6.35 0.40 7.4 21.0 7.9
FDD 2-110(8) 1.5-2.5
(16-14)		 0.8×2.8 0.30 3.8 19.0 6.4 10.0 4.3 2.3
FDD 2-187(8) 0.8×4.75 0.35 5.6 19.0 6.5
FDD 2-250 0.8×6.35 0.40 7.4 21.0 7.9
FDD 5.5-250 4-6
(12-10)		 0.8×6.35 0.40 7.4 25.0 7.9 12.5 5.7 3.4
