Bullet Shaped Insulated Cable Lugs Male And Female For Soft Hard Lines
Bullet Shaped Insulated Cable Lugs Male And Female For Soft Hard Lines
Specifications
Brand Name :
VSELE
Place of Origin :
CHINA
Payment Terms :
T/T, Paypal, Western union, L/C etc.
Delivery Time :
5~30days According to the order quantity
Name :
Bullet-shaped Male And Female Full-insulation Terminal (Nylon)
Casing material :
Nylon
Core material :
Brass
Max. Current :
10A/15A
Applicable line type :
Both soft and hard lines
Color :
Red/Blue
MOQ :
100pcs
Price :
0.01-2
Supply Ability :
10000pcs per day
Description

Bullet-shaped Male And Female Full-insulation Terminal (Nylon)

product description

Casing material: nylon
Core material: brass
Clamp features: pluggable, quick replacement of failed components
Applicable line type: both soft and hard lines

Features

Bullet-shaped docking, matching male and female, can be plugged and unplugged multiple times, and can quickly replace failed components
One side of the plug (protruding connector) is the male
One side of the jack (recessed connector) is the female head
The wiring is firm, can prevent leakage, prevent rat bites, and protect the safety of the interface

● Size of cable: 0.5~1.5mm (American standard 22~16)

● Max. Current=10A

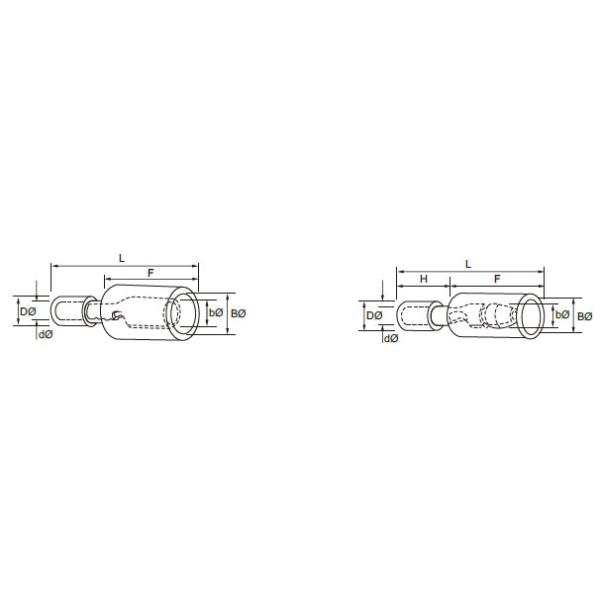

Item No . Dimension (mm) Color
BØ bØ DØ dØ L F H
FRFNY 1.25-156 6.9 3.9 3.2 1.8 26.0 15.0 11.0 Red
MRFNY 1.25-156 7.4 3.9 3.2 1.8 27.5 16.5 11.0

● Size of cable: 1.5~2.5mm (American standard 16~14)

● Max. Current=15A

Item No . Dimension (mm) Color
BØ bØ DØ dØ L F H
FRFNY 1.25-156 6.9 4.0 3.9 2..4 26.0 15.5 11.0 Blue
MRFNY 1.25-156 7.4 4.0 3.9 2.4 27.5 16.5 11.0
