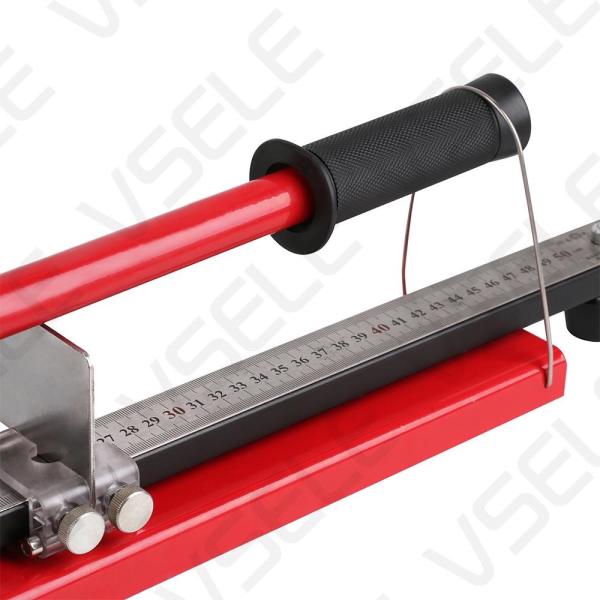

Continuous Cutting Din Rail Cutter / Cutting Guide Baffle Rotated 90 Degrees
Continuous Cutting Din Rail Cutter / Cutting Guide Baffle Rotated 90 Degrees
Continuous Cutting Din Rail Cutter / Cutting Guide Baffle Rotated 90 Degrees
Continuous Cutting Din Rail Cutter / Cutting Guide Baffle Rotated 90 Degrees
Continuous Cutting Din Rail Cutter / Cutting Guide Baffle Rotated 90 Degrees
Continuous Cutting Din Rail Cutter / Cutting Guide Baffle Rotated 90 Degrees
Specifications
Brand Name :
VSELE
Place of Origin :
CHINA
Payment Terms :
T/T, Paypal, Western union, L/C etc.
Delivery Time :
5~30days According to the order quantity
Name :
Din rial cutter R210EF
Material :
Cr12 chrome steel
Cutting Thickness :
1mm/1.4mm
Lenght Stop :
50cm
Product Usage :
Cutting guide
Features :
No deburring necessary, clean cuts
MOQ :
1pc
Price :
50-200
Packaging Details :
Box pack
Supply Ability :
10pcs per day
Description

Din rial cutter R210EF

Features

1. Hight-quality iron ,High strength,wear-resistant,Made by Cr12 chrome steel

2. Rail profile smooth,the section without burr

3. Ruler for measuring,cutting the length you want

4. Baffle can be rotated 90 degrees,convenient for continuous cutting

Instructions

1. The ruler is rotated and fixed at 90 degrees.The slider is moved the cutting length and is fixed by the screw.
2. Insert the guideway from the left and top to the fixed position of the slider.
2. Hold the handle down and cut down the guide.
4. After cutting the guide,gently release the handle and measure the length with a ruler.

Product Code R210EF
Cutting Thickness 1mm/1.4mm
Cutting Capacity Continuous Cutting Din Rail Cutter / Cutting Guide Baffle Rotated 90 DegreesContinuous Cutting Din Rail Cutter / Cutting Guide Baffle Rotated 90 Degrees
Lenght Stop 50cm
G.W/N.W 6.32Kg/5.8Kg
Dimensions(LxWxH) 670x120x130 (mm)
Packing Dimensions 700x170x130 (mm)
