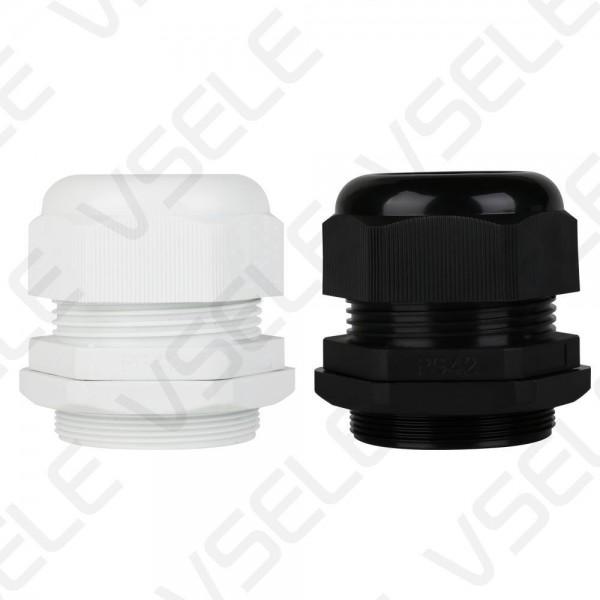

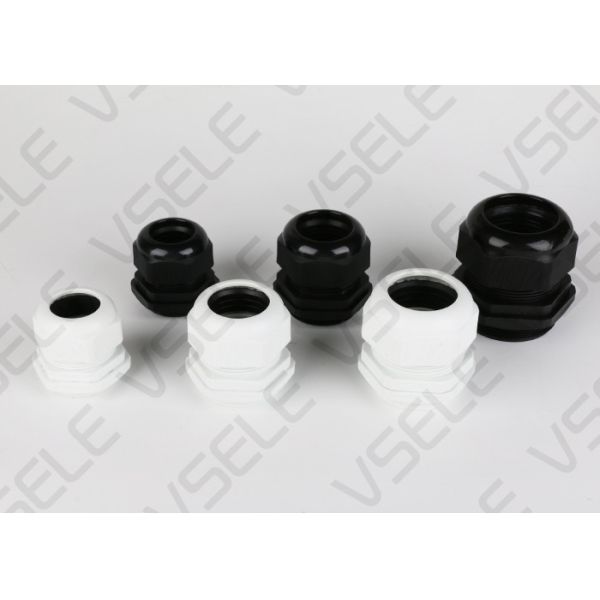

PG Gland Nylon Cable Straps Gland Connector White Black Waterproof Plastic
PG Gland Nylon Cable Straps Gland Connector White Black Waterproof Plastic
PG Gland Nylon Cable Straps Gland Connector White Black Waterproof Plastic
PG Gland Nylon Cable Straps Gland Connector White Black Waterproof Plastic
PG Gland Nylon Cable Straps Gland Connector White Black Waterproof Plastic
PG Gland Nylon Cable Straps Gland Connector White Black Waterproof Plastic
Specifications
Place of Origin :
CHINA
Brand Name :
VSELE
Delivery Time :
5~30days According to the order quantity
Payment Terms :
T/T, Paypal, Western union, L/C etc.
Name :
PG Nylon Cable Gland
Material :
PA66 to UL94 V-2 with oil resistant rubber ring
Color :
White、Black
Degree of Protection :
IP68
Temperature arrangement :
-40°C~100°C(Static State);-20°C~80°C(Dynamic State)
Features :
Waterproof, high temperature resistance, long life
MOQ :
100pcs
Price :
0.1-10
Supply Ability :
1000pcs per day
Description

PG Nylon Cable Gland

● Material: PA66 to UL94 V-2 with oil resistant rubber ring

● Color: White, Grey or black

● Degree of Protection:IP68

● Temperature arrangement:-40°C~100°C(Static State);-20°C~80°C(Dynamic State)

Features:

1. Waterproof design and Used for fixing cables.
2. Special design that don't damage to cables and devices.
3. Without disassembly, cables can be inserted through directly and then tightened

PG Gland Nylon Cable Straps Gland Connector White Black Waterproof Plastic

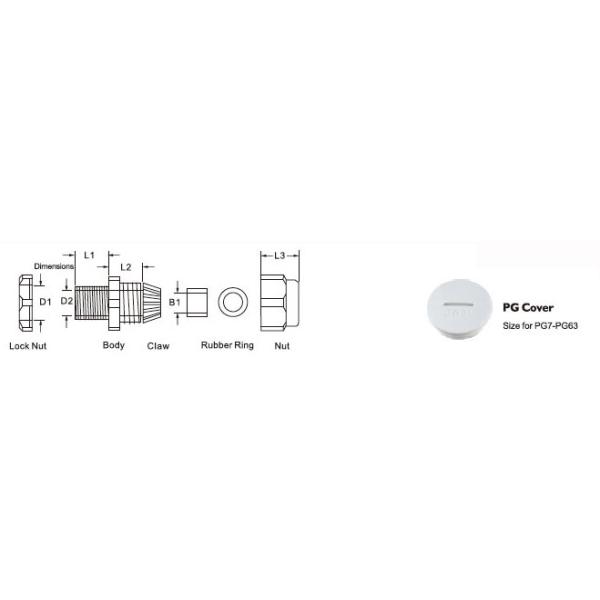

Item No . Size (mm) Suitable Cable
D1 D2 L1 L2 L3 B1
PG-7 10.9 8.1 10.4 14.5 10.5 6.4 3.5-6
PG-9 15.3 12.2 9.9 15.8 17.2 8.6 4-8
PG-11 17.9 14.6 10.6 15.5 17.5 10.7 5-10
PG-13.5 20.2 16.2 10.3 17.8 17.9 13.3 6-12
PG-16 21.3 18.3 11.2 18.5 20.5 14.3 10-14
PG-19 24.7 20.5 11.4 18.6 21.8 15.5 12-15
PG-21 26.9 21.8 11.6 18.7 23.1 16.7 13-18
PG-24 29.8 25.0 12.1 28.3 24.1 19.2 15-22
PG-29 35.1 29.8 12.4 22.6 24.8 24.8 18-25
PG-36 44.7 37.1 12.6 25.1 26.10 30.7 22-32
PG-42 50.4 43.3 17.3 25.9 30.5 35.6 30-38
PG-48 56.1 48.2 20.9 28.1 31.5 41.4 34-44

PG Gland Nylon Cable Straps Gland Connector White Black Waterproof Plastic
