Expand Nail
These often used fasteners are hammered in a hole drilled in the wall and press against the sides when a screw is inserted. They work well in hard materials, such as brick and concrete block.For best results use ribbed anchors that are split, which allows them to spread out a bit behind the wall.
Product description
●Material: PE
●Color: White or other colors.
●Operating temperature:-30°C to 85°C
Features
Insulate well and not apt to age.Its great for cable and wire assembly, household, construction industry, electronic industry.

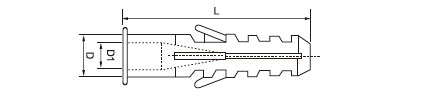

Item No . | Size(mm) | Packing(pcs/bag) | |||
L | D | D1 | |||
EN-06 | 29.8 | 6.0 | 4.9 | 100 | 1000 |
EN-08 | 38.6 | 7.9 | 5.3 | 100 | 1000 |
EN-10 | 42.7 | 9.9 | 5.8 | 100 | 500 |
EN-12 | 47.9 | 11.6 | 6.3 | 100 | 500 |
