WV 15 multi-needle quilting machine
WV 15 multi-needle quilting machine
WV 15 multi-needle quilting machine
WV 15 multi-needle quilting machine
WV 15 multi-needle quilting machine
WV 15 multi-needle quilting machine
WV 15 multi-needle quilting machine
WV 15 multi-needle quilting machine
Specifications
Brand Name :
zolytech
Model Number :
wv15
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
USD 50000-68000 PCS
Supply Ability :
30 pcs /month
Delivery Time :
30 days
Packaging Details :
wooden box
specification :
5400*1650*2050mm
weight :
5500kg
machine stitch length :
3-7mm
quilting width :
2450mm
needle distance :
25.4mm
max quilting thickness :
80mm
efficient :
80-350m/hour
needle type :
24/180 23/160 22/140
main shaft speed :
600-1500rpm
power :
11kw
Description

Function :

* Newly updated software enables quick design changing of operation

* Using air cylinder for thread cutting tail length.

* Running state detection and prompt,shows clearly the machine running state

* Automatic lubrication system ( that works on anti friction component, ball screw and linear guideway ) enables labor saving and long life of the machine.

* Optional : 0.5 inch needle distance, capable of making more patterns.

* Larger diameter of main shaft and needle bar shaft ensures the stable performance during the machine working in high speed.

* Automatic detection of machine running condition.

* Delta VFD( variable-frequency driver ) drives main shaft (Zshft) and panasonic servo driver & motor control the saddle (X shaft ) and roller

* Optional : slitting system. precisely slitting after quilting for making mattress tape.

Parts :

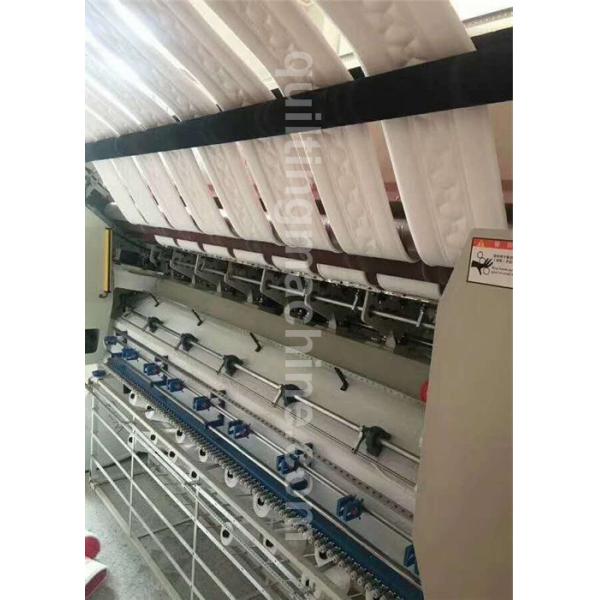

WV 15 multi-needle quilting machine Slitting system

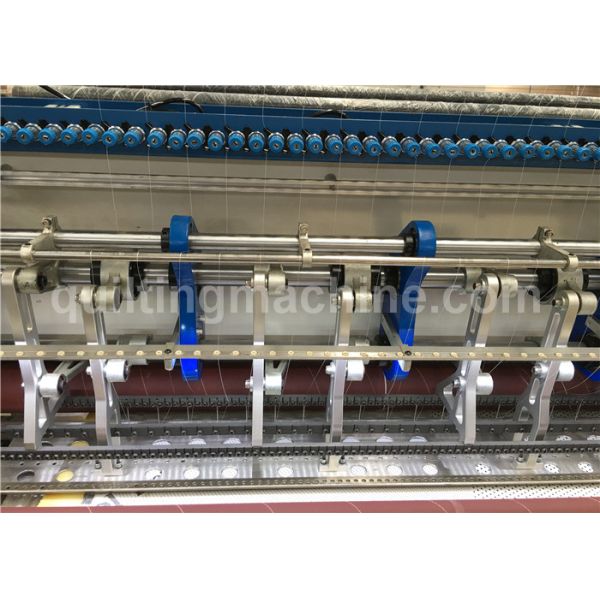

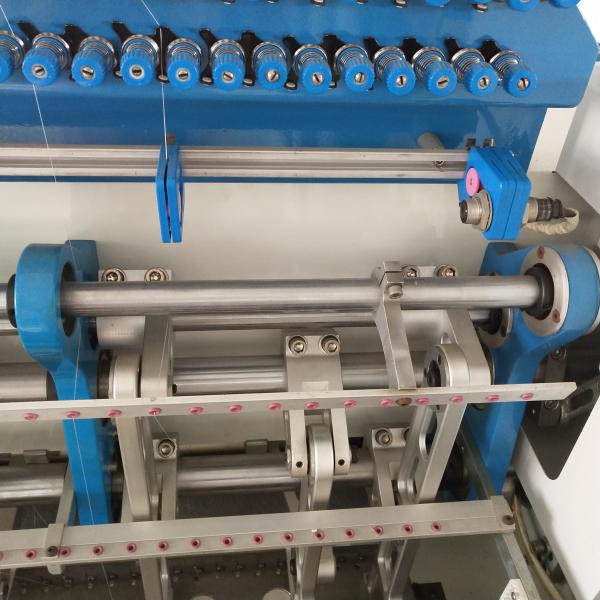

Sturdy needle row suppor WV 15 multi-needle quilting machine

WV 15 multi-needle quilting machine Independent thread break detector

patterns:

WV 15 multi-needle quilting machine WV 15 multi-needle quilting machine WV 15 multi-needle quilting machine WV 15 multi-needle quilting machine

WV 15 multi-needle quilting machine WV 15 multi-needle quilting machine WV 15 multi-needle quilting machine WV 15 multi-needle quilting machine

Application:

WV 15 multi-needle quilting machine WV 15 multi-needle quilting machineWV 15 multi-needle quilting machine

WV 15 multi-needle quilting machine WV 15 multi-needle quilting machineWV 15 multi-needle quilting machine

system parameter:

dimension 5400*1650*2050mm
weight 5500kg
quilting width 2450mm
X-axis movement displacement 304.8mm
max stitch length 7mm
power 11kw
needle type 24/80 23/160 22/140
max main shaft speed 600-1500 rpm

To meet customer's all needs, we are devoted to make customerize type, and promise high quality and good after-sales service.
