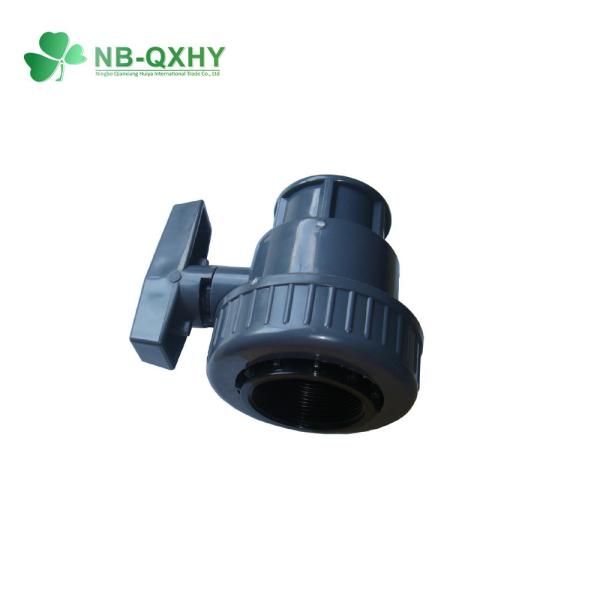

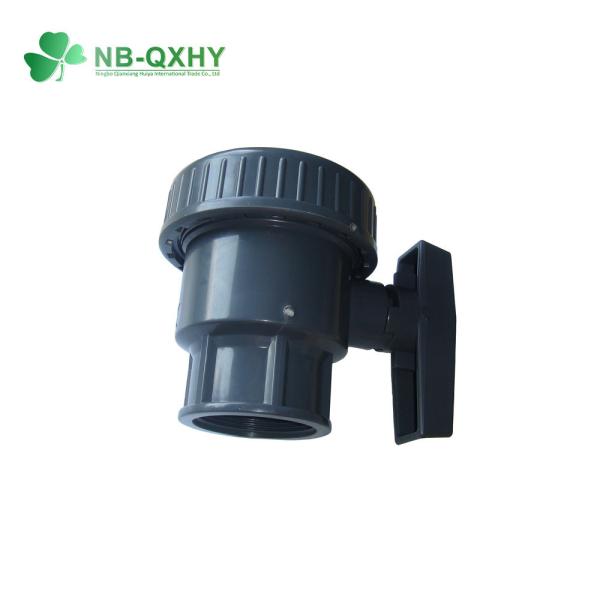

Light Gray PVC CPVC Plastic Single Union Ball Valve for Irrigation Agriculture at Best
Light Gray PVC CPVC Plastic Single Union Ball Valve for Irrigation Agriculture at Best
Light Gray PVC CPVC Plastic Single Union Ball Valve for Irrigation Agriculture at Best
Light Gray PVC CPVC Plastic Single Union Ball Valve for Irrigation Agriculture at Best
Light Gray PVC CPVC Plastic Single Union Ball Valve for Irrigation Agriculture at Best
Light Gray PVC CPVC Plastic Single Union Ball Valve for Irrigation Agriculture at Best
Light Gray PVC CPVC Plastic Single Union Ball Valve for Irrigation Agriculture at Best
Light Gray PVC CPVC Plastic Single Union Ball Valve for Irrigation Agriculture at Best
Light Gray PVC CPVC Plastic Single Union Ball Valve for Irrigation Agriculture at Best
Light Gray PVC CPVC Plastic Single Union Ball Valve for Irrigation Agriculture at Best
Light Gray PVC CPVC Plastic Single Union Ball Valve for Irrigation Agriculture at Best
Light Gray PVC CPVC Plastic Single Union Ball Valve for Irrigation Agriculture at Best
Specifications
Model NO. :
QX
Structure :
Fixed Ball Valve
Type :
Fixed Ball Valve
Function :
Shutoff
Temperature :
Normal Temperature
Application :
Industrial Usage, Water Industrial Usage, Household Usage
Color :
Light Gray, Deep Gray, Black, White
Standard Like :
DIN, BSPT, ASTM, ANSI
Quality :
EPDM Rubber+PVC Ball+PVC Handle, High Thickness
Package :
Plastic Bag Each One, Stron Export Carton
Feature :
New Fashion Handle, Easy Use, Long Service Life
Transport Package :
Carton, Polybag, Color Box or Customized
Specification :
1/2′, 3/4′, 1′, 1-1/4′, 1-1/2′, 2′, 2-1/2′, 3", 4"
Trademark :
QX
Origin :
Zhejiang, China
HS Code :
8481804090
Supply Ability :
70000 Piece /Month
Media :
Water
Material :
PVC
Connection Form :
Socket or Threaded
Driving Mode :
Manual
Nominal Pressure :
Pn10, Pn16
Channel :
Straight Through Type
Samples :
US$ 3/Piece 1 Piece(Min.Order) | Request Sample
Customization :
Available | Customized Request
MOQ :
1pc
Packaging Details :
Customized
Delivery Time :
5-8 days
Payment Terms :
L/C,T/T
Description
Specification & Dimensions:

Light Gray PVC CPVC Plastic Single Union Ball Valve for Irrigation Agriculture at Best

NO. PART Material QTY
1 Body UPVC,CPVC 1
2 Stem O-Ring EPDM,FPM (NBR) 2
3 Stem UPVC, CPVC 1
4 Ball UPVC,CPVC 1
5 Seat Seal TPE,TPV,TPO 2
6 Carrier O-Ring EPDM,FPM (NBR) 1
7 Seal Carrier UPVC CPVC 1
8 Union O-Ring EPDM,FPM (NBR) 1
9 End Connector UPVC,CPVC 1
10 Union Nut UPVC,CPVC 1
11 Handle PVC 1

SIZE DIN(MM) BS(MM) JIS(MM) ANSI(MM) NPT Thd./in BSPT Thd./in d C E A L D
DN15 (1/2") 20 22 22 21.34 14 14 15 56 79 63 76 28.8
DN20 (3/4") 25 26 26 26.67 14 14 20 60 90 72 87 35
DN25 (1") 32 34 32 33.4 11.5 11 25 69 103 75 101 43
DN32( 1 1/4") 40 42 38 42.16 11.5 11 30 80 122 85 114 52
DN40(1 1/2") 50 48 48 48.26 11.5 11 38 95 139 95 137 62
DN50 (2") 63 60 60 60.33 11.5 11 48 116 166 110 163 75.5
DN65( 21/2") 75 75 76 73.03 8 11 59 139 192 128 198 88.5
DN80 (3") 90 89 89 88.9 8 11 72 170 235 139 230 106
DN100 (4") 110 114 114 114.3 8 11 96 210 277 160 274 131


Products advantages:

No leak, positive shut off.
Pressure retaining test for each piece.
Excellent flow characteristics and flow control.
Switch test for each piece.
Standard pressure test for each piece
Steady opening and closing, lower torque, ergonmic handle.

Production process:

Each product will be done the leakage test!

Light Gray PVC CPVC Plastic Single Union Ball Valve for Irrigation Agriculture at Best

Handle options:

Various types available
Vacant and solid available

Light Gray PVC CPVC Plastic Single Union Ball Valve for Irrigation Agriculture at Best


Packing:

Light Gray PVC CPVC Plastic Single Union Ball Valve for Irrigation Agriculture at Best
Light Gray PVC CPVC Plastic Single Union Ball Valve for Irrigation Agriculture at Best

Application:

Agricultural irrigation
Swimming pool
Sewage treatment
Water treatment
Piping system
Water recycling project

Light Gray PVC CPVC Plastic Single Union Ball Valve for Irrigation Agriculture at Best

Certificate:

Light Gray PVC CPVC Plastic Single Union Ball Valve for Irrigation Agriculture at Best

Our strength:

About product:

100% new materials.
Environmental friendly product with non-toxic.
Good looking and life long service.
Quality will be strongly controlled while producing, testing and packing before leaving the factory.
Wonderful ability in chemical corrosion resistance.
Easy and fast installation, lowering the cost.
Customized.

About service:

We have full exporting experience to Southeast Asia, Africa, Middle east, North America and South America.
Different quality and thickness valves with various style offered to meet customer's need from region to region.
Free samples offered.
Each order will be carefully taken of even the order quantity is small.
After-sale will be responded and solved in short time.
OEM is available.
Quick and stable delivery time.
