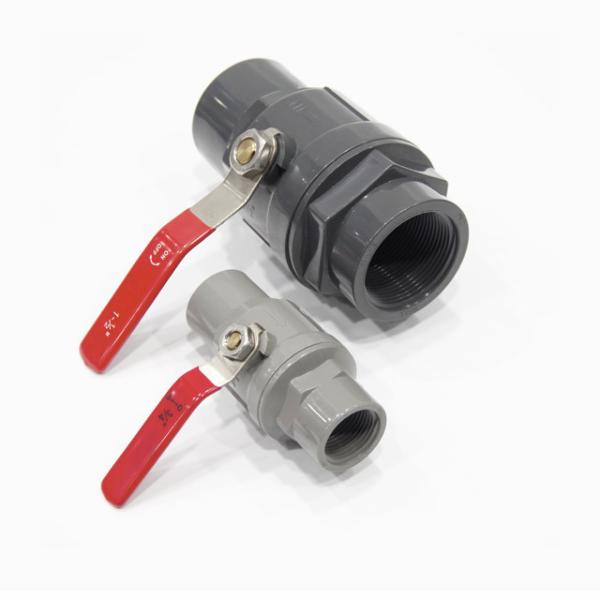

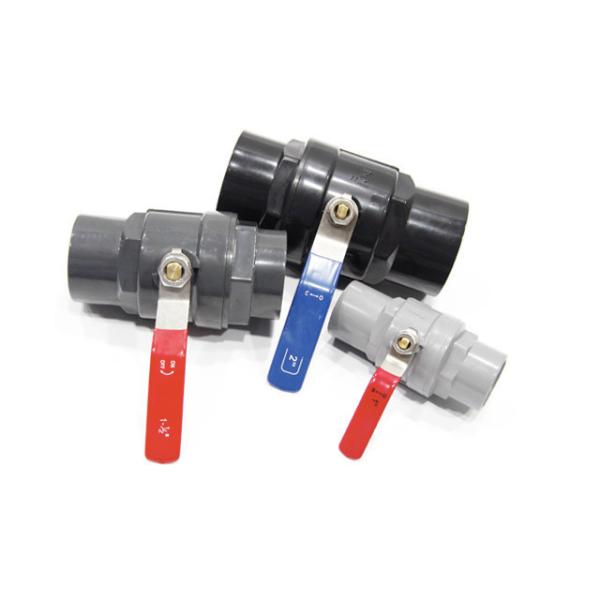

Light Grey Two Pieces Ball Valve with EPDM O-Ring and Ss Handle 11/2 Flexible Structure
Light Grey Two Pieces Ball Valve with EPDM O-Ring and Ss Handle 11/2 Flexible Structure
Light Grey Two Pieces Ball Valve with EPDM O-Ring and Ss Handle 11/2 Flexible Structure
Light Grey Two Pieces Ball Valve with EPDM O-Ring and Ss Handle 11/2 Flexible Structure
Light Grey Two Pieces Ball Valve with EPDM O-Ring and Ss Handle 11/2 Flexible Structure
Light Grey Two Pieces Ball Valve with EPDM O-Ring and Ss Handle 11/2 Flexible Structure
Light Grey Two Pieces Ball Valve with EPDM O-Ring and Ss Handle 11/2 Flexible Structure
Light Grey Two Pieces Ball Valve with EPDM O-Ring and Ss Handle 11/2 Flexible Structure
Light Grey Two Pieces Ball Valve with EPDM O-Ring and Ss Handle 11/2 Flexible Structure
Light Grey Two Pieces Ball Valve with EPDM O-Ring and Ss Handle 11/2 Flexible Structure
Light Grey Two Pieces Ball Valve with EPDM O-Ring and Ss Handle 11/2 Flexible Structure
Light Grey Two Pieces Ball Valve with EPDM O-Ring and Ss Handle 11/2 Flexible Structure
Specifications
Model NO. :
QX
Structure :
Flexible Ball Valve
Type :
Flexible Ball Valve
Function :
Blow-Down Valve, Connect Pipe Fittings
Temperature :
Normal Temperature
Standard :
DIN, NPT, ANSI ( Socket and Threaded )
Application :
Industrial Usage, Water Industrial Usage, Household Usage
Color :
Dark Gray, Light Gray, Black, White and Other
Material Quality :
Inside Ball ABS Electroplating, Ss Handle
Feature :
Easy Open and Close Very
Feature2 :
Two Parts Type New Design
Handle :
Have Ss Handle and PVC Handle Both
Transport Package :
Plastic Bag, Inside Box, Export Cartons
Specification :
1/2", 3/4", 1", 11/4", 11/2", 2", 21/2", 3", 4"
Trademark :
QX
Origin :
China(Mainland)
HS Code :
8481804090
Supply Ability :
200000 Cartons /Month
Media :
Water
Material :
PVC
Connection Form :
Glue
Driving Mode :
Manual
Nominal Pressure :
Pn10
Channel :
Straight Through Type
Samples :
US$ 1/Piece 1 Piece(Min.Order) | Request Sample
Customization :
Available | Customized Request
MOQ :
1pc
Packaging Details :
Customized
Delivery Time :
5-8 days
Payment Terms :
L/C,T/T
Description
Specification & Dimensions:

Light Grey Two Pieces Ball Valve with EPDM O-Ring and Ss Handle 11/2
NO. PART Material QTY
1 Body UPVC 1
2 Seat Seal TPE, PTFE 2
3 O-Ring EPDM, NBR 2
4 Ball ABS ELECTROPLATING 1
5 Handle SS201, PVC, ABS 1
6 Stem BRASS 1
7 Bolt SS201, PVC, ABS 1
SIZE DIN(MM) BS(MM) JIS(MM) ANSI(MM) NPT(IN) BSPT(IN)
DN15 (1/2") 20 21.5 22.11 21.6 14 14
DN20 (3/4") 25 26.9 26.13 26.9 14 14
DN25 (1") 32 33.7 32.16 33.8 11.5 11
DN32( 1 1/4") 40 42.2 38.19 42.4 11.5 11
DN40(1 1/2") 50 48.4 48.21 48.5 11.5 11
DN50 (2") 63 60.5 60.25 60.7 11.5 11
DN65( 21/2") 75 75.3 76.6 73.4 8 11
DN80 (3") 90 89 89.6 89.4 8 11
DN100 (4") 110 114.5 114.7 114.8 8 11


Products advantages:

No leak, positive shut off.
Pressure retaining test for each piece.
Excellent flow characteristics and flow control.
Switch test for each piece.
Standard pressure test for each piece
Steady opening and closing, lower torque, ergonmic handle.

Handle options:

SS handle: Size 1/2",3/4",1",1 1/4",1 1/2",2",2 1/2", 3",4" recommended
more easier to move than plastic handle

Plastic handle: Size 1/2",3/4",1",1 1/4",1 1/2",2" recommended

Light Grey Two Pieces Ball Valve with EPDM O-Ring and Ss Handle 11/2 Light Grey Two Pieces Ball Valve with EPDM O-Ring and Ss Handle 11/2

Packing:

Light Grey Two Pieces Ball Valve with EPDM O-Ring and Ss Handle 11/2
Light Grey Two Pieces Ball Valve with EPDM O-Ring and Ss Handle 11/2

Applications:

Agricultural irrigation
Swimming pool
Sewage treatment
Water treatment
Piping system
Water recycling project

Light Grey Two Pieces Ball Valve with EPDM O-Ring and Ss Handle 11/2

Certifricate:

Light Grey Two Pieces Ball Valve with EPDM O-Ring and Ss Handle 11/2


Our strength:

About product:

100% new materials.
Environmental friendly product with non-toxic.
Good looking and life long service.
Quality will be strongly controlled while producing, testing and packing before leaving the factory.
Wonderful ability in chemical corrosion resistance.
Easy and fast installation, lowering the cost.
Customized.

About service:

We have full exporting experience to Southeast Asia, Africa, Middle east, North America and South America.
Different quality and thickness valves with various style offered to meet customer's need from region to region.
Free samples offered.
Each order will be carefully taken of even the order quantity is small.
After-sale will be responded and solved in short time.
OEM is available.
Quick and stable delivery time.
