Specifications
Model NO. :
NB-QXHY
Structure :
Fixed Ball Valve
Type :
Fixed Ball Valve
Function :
Shutoff
Temperature :
Normal Temperature
Standard :
DIN, ANSI, NPT, BSPT
Application :
Industrial Usage, Water Industrial Usage, Household Usage
Color :
Light Gray, Deep Gray, Black, White
Standard Like :
DIN, BSPT, ASTM, ANSI
Quality :
EPDM Rubber+PVC Ball+PVC Handle, High Thickness
Package :
Plastic Bag Each One, Stron Export Carton
Feature :
New Fashion Handle, Easy Use, Long Service Life
Price :
Competitive Price
Certificate :
ISO9001,SGS
Transport Package :
Carton, Polybag, Color Box or Customized
Specification :
1/2′, 3/4′, 1′, 1-1/4′, 1-1/2′, 2′, 2-1/2′, 3", 4"
Trademark :
NB-QXHY
Origin :
China(Mainland)
HS Code :
0000000
Supply Ability :
70000 Piece /Month
Media :
Water
Material :
PVC
Connection Form :
Socket or Threaded
Driving Mode :
Manual
Nominal Pressure :
Pn10, Pn16
Channel :
Straight Through Type
Samples :
US$ 3/Piece 1 Piece(Min.Order) | Request Sample
Customization :
Available | Customized Request
MOQ :
1pc
Packaging Details :
Customized
Delivery Time :
5-8 days
Payment Terms :
L/C,T/T
Description
ANSI Plastic PVC Ball Valve Socket Threaded PVC Valve DIN Ture Union Ball Valve

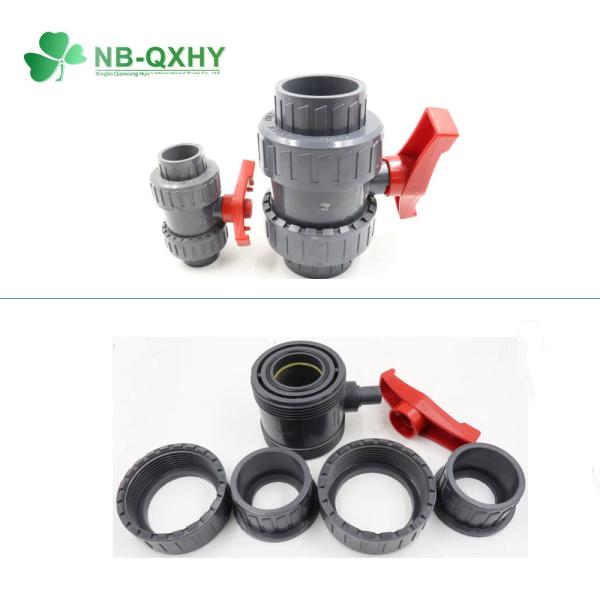

1. PVC Union Ball Valve Introduction

Our PVC union ball valve is 100% new material quality. So our products have good looking and are durable. And we support to design for body color and handle according to your requirements.

Meanwhile, our handle of PVC valve is easy to operate, and we guarantee all the products are well manufactured in every process, from start to finish. Every pieces are tested with no leakage before delivered.

What's more, we are willing to offer free samples for testing!

Long Service Life PVC Ball Valve with ISO9001 Certificate and DIN Ture Union
2. Product Specification
Long Service Life PVC Ball Valve with ISO9001 Certificate and DIN Ture Union
NO. PART Material QTY
1 Body UPVC,CPVC 1
2 Stem O-Ring EPDM,FPM (NBR) 2
3 Stem UPVC, CPVC 1
4 Ball UPVC,CPVC 1
5 Seat Seal TPE,TPV,TPO 2
6 Carrier O-Ring EPDM,FPM (NBR) 1
7 Seal Carrier UPVC CPVC 1
8 Union O-Ring EPDM,FPM (NBR) 1
9 End Connector UPVC,CPVC 1
10 Union Nut UPVC,CPVC 1
11 Handle PVC 1


SIZE DIN(MM) BS(MM) JIS(MM) ANSI(MM) NPT Thd./in BSPT Thd./in d C E A L D
DN15 (1/2") 20 22 22 21.34 14 14 15 56 79 63 76 28.8
DN20 (3/4") 25 26 26 26.67 14 14 20 60 90 72 87 35
DN25 (1") 32 34 32 33.4 11.5 11 25 69 103 75 101 43
DN32( 1 1/4") 40 42 38 42.16 11.5 11 30 80 122 85 114 52
DN40(1 1/2") 50 48 48 48.26 11.5 11 38 95 139 95 137 62
DN50 (2") 63 60 60 60.33 11.5 11 48 116 166 110 163 75.5
DN65( 21/2") 75 75 76 73.03 8 11 59 139 192 128 198 88.5
DN80 (3") 90 89 89 88.9 8 11 72 170 235 139 230 106
DN100 (4") 110 114 114 114.3 8 11 96 210 277 160 274 131

3. Products advantages:

1. Raw material, 100% testing before delivery, 99% no leakage, and wonderful torque.

2. Have cooperated with a lot of importers all over the world.

3. Professional R&D Team.

4. Pressure retaining test for each piece.

5. Excellent flow characteristics and flow control.

6. Switch test for each piece.

7. Standard pressure test for each piece

8. Steady opening and closing, lower torque, ergonomic handle.

9. Free samples could be sent by request.

4. Production Process:

Long Service Life PVC Ball Valve with ISO9001 Certificate and DIN Ture Union

5. Our Other Related Products
Long Service Life PVC Ball Valve with ISO9001 Certificate and DIN Ture Union
Long Service Life PVC Ball Valve with ISO9001 Certificate and DIN Ture Union





6. Product Packing Picture


Long Service Life PVC Ball Valve with ISO9001 Certificate and DIN Ture Union


7. Our Factory Picture

Long Service Life PVC Ball Valve with ISO9001 Certificate and DIN Ture Union

8. Our Certificate:

Long Service Life PVC Ball Valve with ISO9001 Certificate and DIN Ture Union

9. Application

(1) Agricultural irrigation (2) Swimming pool

(3) Sewage treatment (4) Water treatment

(5) Piping system (6) Water recycling project

Long Service Life PVC Ball Valve with ISO9001 Certificate and DIN Ture Union
10. About Us

Long Service Life PVC Ball Valve with ISO9001 Certificate and DIN Ture Union

11. FAQ

Our Advantages:

(1) High pressure can stand: PN10, PN16, PN35, PN40; 150psi, 235psi etc, as customers' request;

(2) Well and high quality control, within 1% leakage;

(3) Environment friendly, non-toxic, good looking and long service life;

(4) Light weight, easy to handle and transport;

(5) Soft colors and excellent design, suitable for installation either exposed or hidden;

(6) Wonderful ability in chemical corrosion resistance;

(7) Easy and fast installation, making cost minimized;

(8) Widely used in building, irrigation, industry and swimming pool;

(9) Small order acceptable;

(10) Customer's design and logo are welcome.

Why Us?

(1) We provide OEM service and submit Various styles, latest designs to our clients;

(2) We work with big customers in Southeast Asia, Africa, Middle East, North America, South America;

(3) According to the needs of customers in different regions, we match different quality and thickness valves with various styles, so that our customers are very competitive in the market!

(4) Our high quality PVC valve can be consistent with European and American national brand valves!

(5) We have great experience on providing high quality products and most professional service to clients about 10 years more!

(6) Customers choose our products, can mix and match our PVC pipe fittings, PVC butterfly valves, PP Fittings, irrigation products to buy together, so that the customer product line is more abundant, both quality and delivery time are guaranteed.

(7) We can flexible from China any port export! Welcome you inquiry us!
