PVC CPVC Pipe Fitting for Water Supply Coupling/Socket Anti-UV PVC Coupling/Socket
PVC CPVC Pipe Fitting for Water Supply Coupling/Socket Anti-UV PVC Coupling/Socket
PVC CPVC Pipe Fitting for Water Supply Coupling/Socket Anti-UV PVC Coupling/Socket
PVC CPVC Pipe Fitting for Water Supply Coupling/Socket Anti-UV PVC Coupling/Socket
PVC CPVC Pipe Fitting for Water Supply Coupling/Socket Anti-UV PVC Coupling/Socket
PVC CPVC Pipe Fitting for Water Supply Coupling/Socket Anti-UV PVC Coupling/Socket
PVC CPVC Pipe Fitting for Water Supply Coupling/Socket Anti-UV PVC Coupling/Socket
PVC CPVC Pipe Fitting for Water Supply Coupling/Socket Anti-UV PVC Coupling/Socket
PVC CPVC Pipe Fitting for Water Supply Coupling/Socket Anti-UV PVC Coupling/Socket
PVC CPVC Pipe Fitting for Water Supply Coupling/Socket Anti-UV PVC Coupling/Socket
PVC CPVC Pipe Fitting for Water Supply Coupling/Socket Anti-UV PVC Coupling/Socket
PVC CPVC Pipe Fitting for Water Supply Coupling/Socket Anti-UV PVC Coupling/Socket
Specifications
Model NO. :
QX
Wall Thickness :
SCH40
Finish :
Varnish Paint
Technics :
Forged
Pressure Rating :
Pn16
Standard :
ASTM
Certification :
ISO, CE
Color :
White, Gray, Blue
Feature :
100% New Material High Quality
Package :
Plastic Bag and Strong Export Carton
Advantage :
Anti-UV
Transport Package :
Inner Boxes and Cartons
Specification :
1/2′, 3/4′, 1′, 1-1/4′, 1-1/2′, 2′, 2-1/2′, 3", 4"
Trademark :
QX
Origin :
China(Mainland)
HS Code :
3917400000
Supply Ability :
10, 000, 000 Piece /Month
Type :
Equal, Reducer, Coupling, Tee, Cross, Cap
Connection :
Glue
Material :
PVC
Shape :
Tee, Elbow, Cross, Cap and So on
Lateral :
90°Tee
Head Code :
Round
Samples :
US$ 3/Piece 1 Piece(Min.Order) | Request Sample
Customization :
Available | Customized Request
MOQ :
1pc
Packaging Details :
Customized
Delivery Time :
5-8 days
Payment Terms :
L/C,T/T
Description
1. Basic information:
Item Name CPVC Fitting
Material CPVC
Standard ASTM
Pressure Normal/low/high pressure
Temperature Normal Temperature
Packing Carton, Polybag, Color Box or Customized
SIZE 1/2''-4''
Delivery port Ningbo by sea


2. Basic tapes available:

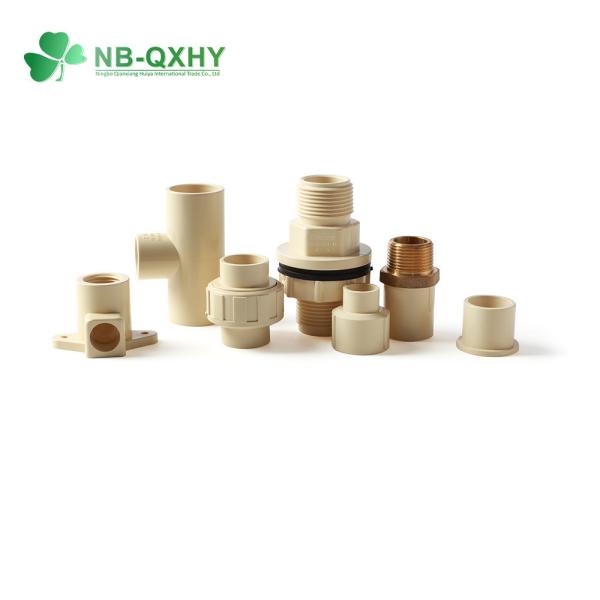

Name Model Size

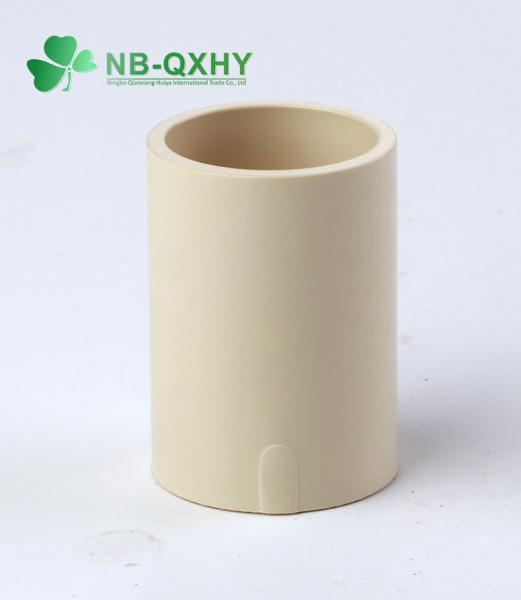

Coupling QX51 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
CAP QX52 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
TEE QX53 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"

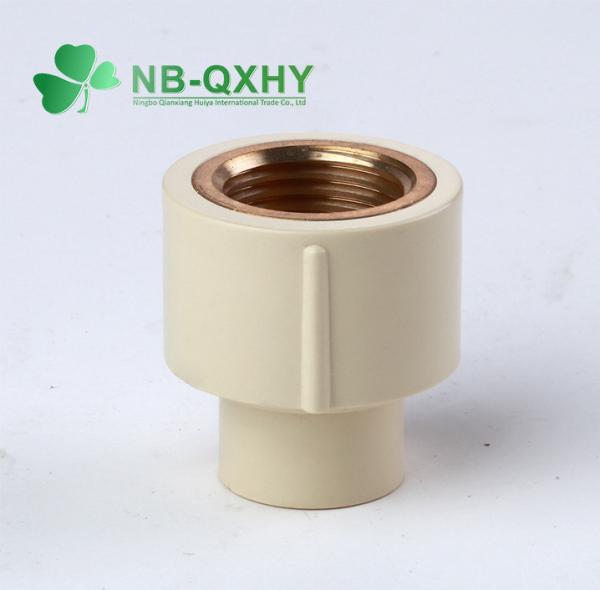

FEMALE ADAPTER QX54 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

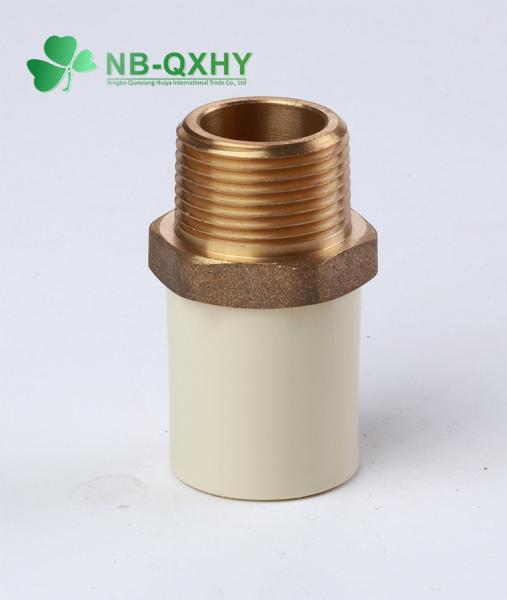

MALE ADAPTER QX55 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
90DEG ELBOW QX56 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
45DEG ELBOW QX57 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
FEMALE TEE QX58 1/2", 3/4", 1"
FEMALE ELBOW QX59 1/2", 3/4", 1"

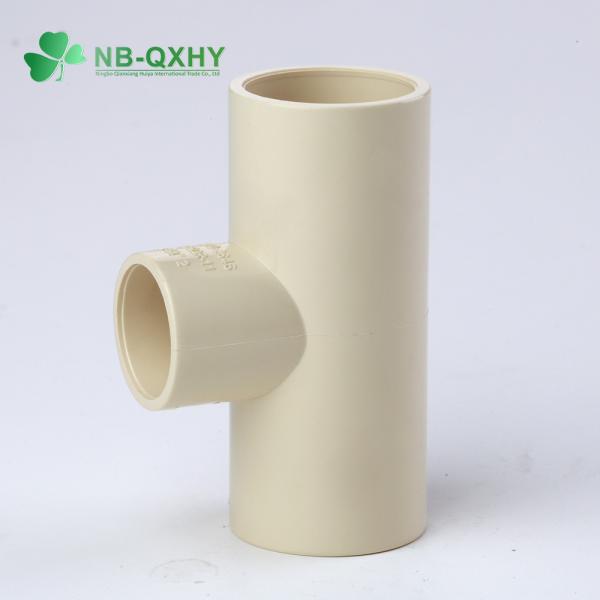

REDUCING TEE QX60 3/4"X 1/2", 1"X1/2", 1"X 3/4"
REDUCING BUSHINE QX61 3/4"X1/2", 1X 1/2", 1"X3/4", 1 1/4"X1", 1 1/2" X1", 1 1/2" X 1 1/4", 2" X 1 1/2", 2"X 4", 3"X 4", 2"X 1", 2"X1 1/4", 1 1/2" X3/4", 3"X2", 2"X 3/4"

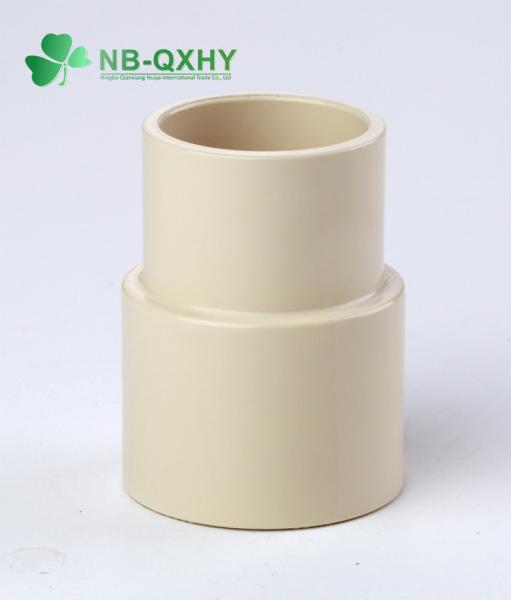

REDUCING COUPLING QX62 3/4"X1/2", 1X 1/2", 1"X3/4", 1 1/4"X1", 1 1/4" X 3/4" , 1 1/2"X 1 1/4", 1 1/2" X1", 2" X 1 1/2", 2" X 1 1/4", 2 1/2" X 2", 2 1/2"X1 1/2", 3" X 2 1/2", 3"X2", 4"X3", 4" X 2 1/2", 2"X 1"
REDUCING FEMALE ELBOW QX63 3/4" X 1/2", 1" X 1/2", 1" X 3/4"
REDUCING FEMALE TEE QX64 3/4"X1/2", 1X 1/2", 1"X3/4"
REDUCING BUSHING QX65 3/4"X1/2", 1" X1/2", 1" X3/4"
PLUG QX66 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
PIPE CLIP QX67 1/2", 3/4", 1", 1 1/4", 1 1 /2", 2", 3", 4"
COMPRESSION COUPLING QX68 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
UNION QX69 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
FEMALE ELBOW WITH BRASS QX70 1/2", 3/4"
FEMALE COUPLING WITH BRASS QX71 1/2", 3/4"
FEMALE TEE WITH BRASS QX72 1/2"


3. Advantages:

Ageing resistant and long service life.
Saving cost and accelerating the project for the easy installation.
Easy operation.
Good Material


4. Application:

Pure water plant
Drinking water plant
Food processing plant

5. Packaging:

PVC CPVC Pipe Fitting for Water Supply Coupling/Socket Anti-UV PVC Coupling/Socket

6. Certificate:

PVC CPVC Pipe Fitting for Water Supply Coupling/Socket Anti-UV PVC Coupling/Socket
7. Our strength:

About product:

100% new materials.
Environmental friendly product with non-toxic.
Good looking and life long service.
Quality will be strongly controlled while producing, testing and packing before leaving the factory.
Wonderful ability in chemical corrosion resistance.
Easy and fast installation, lowering the cost.
Customized.

About service:

We have full exporting experience to Southeast Asia, Africa, Middle east, North America and South America.
Different quality and thickness valves with various style offered to meet customer's need from region to region.
Free samples offered.
Each order will be carefully taken of even the order quantity is small.
After-sale will be responded and solved in short time.
OEM is available.
Quick and stable delivery time.



CONTACT US: THANK YOU VERY MUCH!
