Specifications
Model NO. :
QX
Transport Package :
Rolls by Plastic Film or Woven Belt for PVC Layfla
Specification :
3/4" to 16"
Trademark :
QX
Origin :
China(Mainland)
HS Code :
3917390000
Supply Ability :
25000 Meter/Meters Per Day
Standard :
DIN, ANSI
Color :
Red, HD Brown, Blue, Grey, Green
Feature :
Corrosion Resistant
Thickness :
1mm-4mm
Usage :
Watering Irrigation
Length :
30m, 50m, 100m
Samples :
US$ 0/Piece 1 Piece(Min.Order) | Request Sample
Customization :
Available | Customized Request
MOQ :
1pc
Packaging Details :
Customized
Delivery Time :
5-8 days
Payment Terms :
L/C,T/T
Description
Made in China UV-Protection High Pressure Layflat Hoseirrigation PVC Layflat Hose
Watering Irrigation Customization High Pressure Layflat Hose with UV-Protection Made

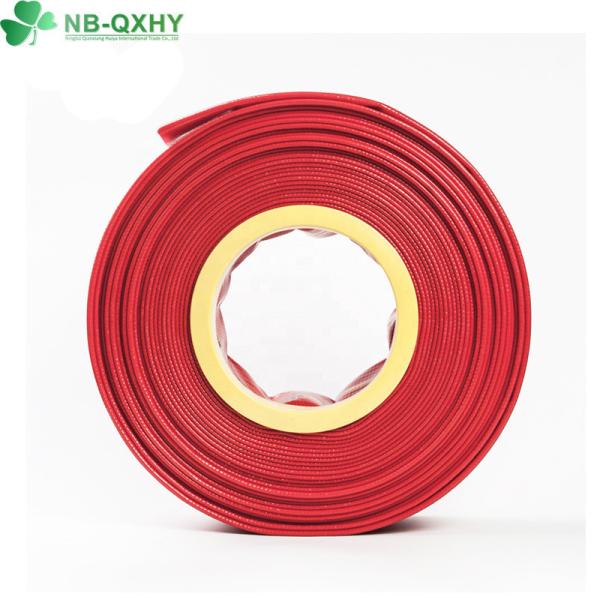

PVC layflat hose, which was made of Dacron and coated with good quality plastic, has such advantages as Anti-freezing, anti-pressure, anti-corrosion properties, Easy to move and fold etc.
This kind hose has different specifications from 0.8"to 12" and working pressure from 0.2Mpa to0.6Mpa. The hoses are suitable for use on farms, camps, oilrigs, mines, and construction sites.

Working pressure: 2Bar,4Bar,6Bar,8Bar

Temperature Range : -10ºC to +80ºC

Watering Irrigation Customization High Pressure Layflat Hose with UV-Protection Made




Watering Irrigation Customization High Pressure Layflat Hose with UV-Protection Made

Watering Irrigation Customization High Pressure Layflat Hose with UV-Protection Made
Watering Irrigation Customization High Pressure Layflat Hose with UV-Protection Made

Watering Irrigation Customization High Pressure Layflat Hose with UV-Protection Made

1, PVC LAYFLAT HOSE SPECIFICATION
Model Size Thckness (mm) Weight ( g/m) W.P(Bar) B.P(Bar)
Economic duty layflat 1" 26mm 1.3 150 4 12
1 1/4" 33mm 1.2 170 4 12
1 1/2" 41mm 1.25 205 5 15
2" 53mm 1 230 4 12
2 1/2" 66mm 1.15 320 4 12
3" 78mm 1.1 360 4 12
4" 104mm 1.3 550 4 12
5" 128mm 1.35 750 4 12
6" 155mm 1.4 900 4 12
8" 202mm 2 1785 3 9
10" 250mm 2.65 2650 2.5 7.5
12" 302mm 2.55 3100 2 6
MODEL SIZE Thckness (mm) Weight ( g/m) W.P(Bar) B.P(Bar)






Medium Duty layflat



 3/4" 20mm 1.35 112 7 21
1" 26mm 1.4 165 7 21
1 1/4" 33mm 1.3 190 7 21
1 1/2" 41mm 1.3 230 7 21
2" 53mm 1.3 300 6 18
2 1/2" 66mm 1.7 430 7 21
3" 78mm 1.45 500 6 18
4" 104mm 2.3 865 6 18
5" 128mm 2.3 1080 6 18
6" 155mm 2.4 1600 6 18
8" 202mm 2.65 2020 4 12
Model SIZE Thickness(mm) Weight (g/m) W.P ( BAR) B.P (BAR)





Heavy Duty layflat




 3/4"" 20mm 1.55 140 10.5 31.5
1" 26mm 1.7 200 10.5 31.5
1 1/4" 33mm 1.45 210 10.5 31.5
1 1/2" 41mm 1.9 290 10.5 31.5
2" 53mm 1.5 350 8 24
2 1/2" 66mm 2.2 650 10.5 31.5
3" 78mm 2.5 850 10 30
4" 104mm 2.5 1000 9 27
5" 127mm 3.1 1800 8 24
6" 155mm 3.3 2000 8 24
8" 202mm 2.95 2200 5 15
Watering Irrigation Customization High Pressure Layflat Hose with UV-Protection Made
Watering Irrigation Customization High Pressure Layflat Hose with UV-Protection Made
Watering Irrigation Customization High Pressure Layflat Hose with UV-Protection Made

Watering Irrigation Customization High Pressure Layflat Hose with UV-Protection Made


3, FAQ
A: Advantage

1.Lightweight, tough, durable and long service life.

2.Rolls up flat is easy move, retrieval and handle.

3.Resistance to abrasion, corrosion, heat and aging.

4.Easy extend to longer length with hose coupling and clamp.

5 Non-toxic, tasteless, environmental protection

B Why choose QX?

1,We can produce lay flat hose acording to your request for the length thickness and working pressure per roll.Before send you right quotation, pls kindly confirm with me.

2. About sample before order

We can supply 20-100cm free sample for your test or little longer, you just need to pay express freight or we can do freight collect.

3. MOQ

Usually our MOQ is 1000m each size, but for first cooperation we also accept little order, so any order is welcomed.

4.Shipping and delivery

We can send to you by sea/air/express according to you, ususally deliver within 15 working days after receive deposit.
