Specifications
Brand Name :
Hesen
Model Number :
DH300 R280 R290 R300 EC290 DH280LC
Certification :
ISO 9001
Place of Origin :
Fujian China
MOQ :
10 pcs
Price :
USD 22
Payment Terms :
T/T
Supply Ability :
100000 per month
Delivery Time :
5-25 days
Packaging Details :
brown carton+white sack+wooden pallet
Standard :
ISO
Material :
25 MNB
Color :
Black
Size :
600MM
Weight :
19.8 kgs
warranty :
1 year
Description

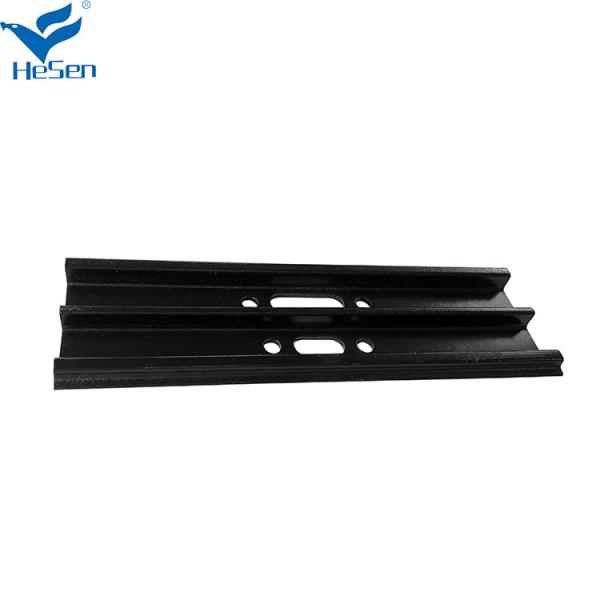

Hyundai Excavator Track Pad For DH300 R280 R290 R300 EC290 DH280LC Excavator Track Shoe

Product Name

Track shoe for Hyundai R300

Material

25MN

Colors

Black

Application

R280 R290 DH300 EC290 DH280LC

Weight

19.8 kgs a track shoe

Warranty time

6 Months

MOQ

10 pieces

Delivery Time

Within 20 days after contract established

Package

NO BOX,track shoes will be packed by wooden pallet or wooden case.

Parameter of Shoe

D1 600 MM
D2 178.4 MM
D3 138.4 MM
Thinness 11 MM
Holes Dia 20 MM
Hyundai Grouser Track Pads For DH300 R280 R290 R300 EC290 DH280LC

Packaging

Plastic bag Brown carton White sack 2 pcs White sticker Plastic belt Wooden pallet

Hyundai Grouser Track Pads For DH300 R280 R290 R300 EC290 DH280LC

More Oem Link FYI


MODEL DESCRIPTION PITCH OEM No.
PC60-3 LINK(42L)12.3mm 135 201-32-00131
PC60-6, PC75 LINK(39L)14.3mm 154 201- 32-00011
PC120-3 LINK(43L) 14.3mm 154 202- 32-00010
PC100-5 LINK(42L)16.3mm 175 203- 32-00101
PC200-5/6 LINK(45L)20.3mm 190 20Y-32-00013
LINK(49L)None Seal 190
PC200-3 LINK(46L)18.3mm 190 206- 32-00011
LINK(46L)None Seal 190
PC300-3 LINK(47L)20.0mm 203 207- 32-00050
LINK(47L)None Seal 203
PC300-5 LINK(47L)22.0mm 203 207-32-00101
PC300-6 LINK(48L) 216 207- 32-00300
PC400-3 LINK(53L)22.3mm 216 208- 32-00040
PC400-5 LINK(49L)24.3mm 216 208-32-00101
PC400-6 LINK(49L) 229 208- 32-00300
PC650 LINK(47L) 260.4 209- 32-00022
PC1000-3 LINK(51L) 260 21N-32-00013
PC1100-6/1250-7 LINK948L) 260 21N-32-00101
E70B LINK(42L) 135 0961885
E311 LINK(41L) 171.45 4I7479
CAT213/215 LINK(49L) 171.45
E110 LINK(43L) 171.45
CAT225 LINK(43L) 171.1
CAT225B LINK(46L) 175.5 5A5293
CAT225D LINK(49L) 19.3mm 190 6Y8184
CAT320 LINK(45L) 190 9W9354
CAT325 LINK(45L) 203 6Y0854
CAT330 LINK(45L) 215.9 6Y2755
CAT235 LINK(49L) 215.9 8E4274

How order goes?

1. Detailed parts info like Parts name, parts number, machine model, contact info is recommended to be given to us


2. We quote the best price according to the requirement of customers.


3.We prepare and pack the goods.


4.Customers make the payment according to the Proforma Invoice once the goods get ready for delivery.


5. We deliver the goods with the packing list, commercial invoice, B/L and other documents requested.


6.Track the transport and arrival about the goods.


7.Your feedback over the arrival of goods are recommended to be given.

FAQ

Q1. What is your terms of packing?

A: Generally, will pack in strong fumigate wooden pallet or Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.


Q2. What is your terms of payment?

A: If amount reach 5000 USD, T/T 30% as deposit, and 70% before delivery. Or need T/T 100%. We'll show you the photos of the products and packages before you pay the balance.


Q3. What is your terms of delivery?

A: FOB,CNF, CIF.


Q4. How about your delivery time?

A: Generally, If we have stock, it will take 7 to 10 days after receiving your advance payment. If not stock, it will take about 30days. The specific delivery time depends on the items and the quantity of your order.


Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds.


Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.


Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery


Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

A:2. We respect every customer as our friend and we sincerely do business and make friends with them.
