Oil Free Car Scroll Compressor Vehicle Direct Mounted
Oil Free Car Scroll Compressor Vehicle Direct Mounted
Oil Free Car Scroll Compressor Vehicle Direct Mounted
Oil Free Car Scroll Compressor Vehicle Direct Mounted
Specifications
Brand Name :
Custom
Model Number :
Custom
Place of Origin :
China
MOQ :
1 set
Price :
Contact Us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
10-30 working days
Packaging Details :
Standard Packaging
Drive way :
Direct mounted
Product Name :
Vehicle Mounted Oil-Free Scroll Air Compressor
Max. working pressure :
1.0MPa
Min working pressure :
0.6MPa
Max. discharge temperature :
70℃
Working temperature :
-25℃～+45℃
Color :
Custom
Description

Simple And Convenient Mounted Oil-Free Car Scroll Compressor

Oil free car scroll compressor working principle:

Air compression processes which is realized by the movement of rotor and stator. The air is sucked fromthe side of air-end, rotor seals the compression chamber and air is compressed gradually along with rotor movement and compression chamber become smaller. Compressed air is discharged from the center of stator. This is a continuous processes, the discharged compressed air is smooth and no fluctuation.

Technical parameters of vehicle mounted oil-free car scroll compressor

Model CMW03-1.0 CMW03-1.2
Drive way Direct mounted
F.A.D 0.25m³/min 0.24m³/min
Max. working pressure 1.0MPa
Min working pressure 0.6MPa
Motor power 3.0kW 3.0kW
Shaft power 2.2kW 2.7kW
Max. discharge temperature 70℃
Working temperature -25℃～+45℃
Cooling way Air cooling
Oil content of discharge air 0ppm
Voltage 3PH/380V/50Hz
Max. current 5.0A 6.0A
Protection level IP65
Insulation level F
Dimension mm 490×460×440mm 445×430×440mm
Connection Inner screw RC3/8’’
Weight 43kg 45kg
Noise 65dB(A) 65dB(A)
Noise 65dB(A) 65dB(A)

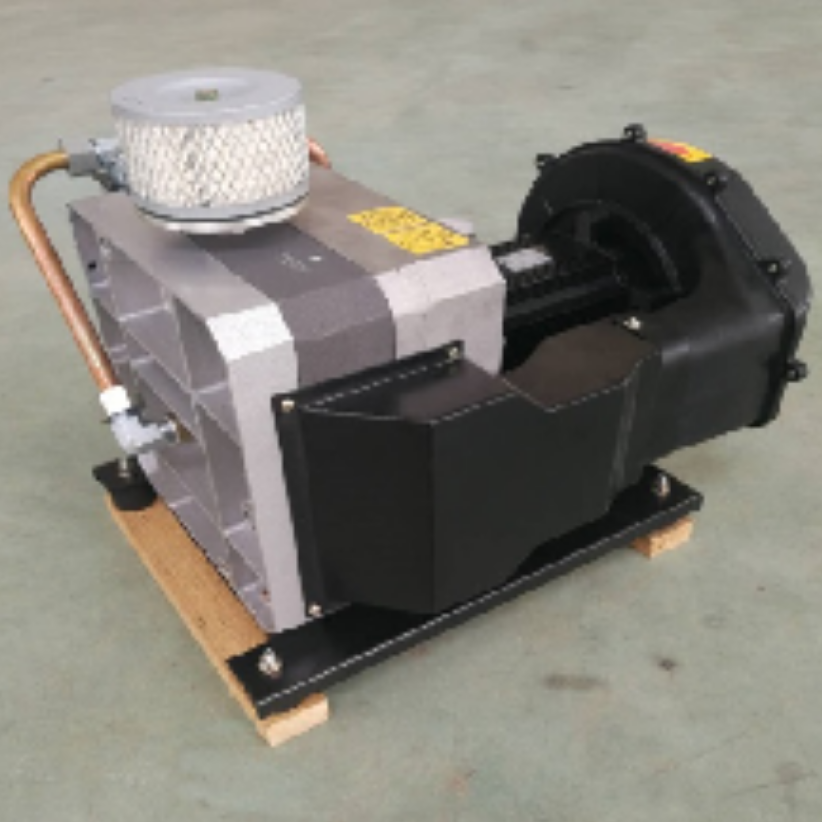

Product picture:

Oil Free Car Scroll Compressor Vehicle Direct Mounted
