Environment Protection High Pressure Oil Free Air Compressor Water Lubricated
Environment Protection High Pressure Oil Free Air Compressor Water Lubricated
Environment Protection High Pressure Oil Free Air Compressor Water Lubricated
Environment Protection High Pressure Oil Free Air Compressor Water Lubricated
Environment Protection High Pressure Oil Free Air Compressor Water Lubricated
Environment Protection High Pressure Oil Free Air Compressor Water Lubricated
Specifications
Brand Name :
Custom
Model Number :
Custom
Place of Origin :
China
MOQ :
1 set
Price :
Contact Us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
20-40 working day
Packaging Details :
According to customer's requirement
Type :
Oil-free
Product Name :
Water Lubricated Oil-Free Screw Air Compressor
Model :
A series
Feature :
Energy saving
Exhaust pressure :
Accurate
Material :
Iron/Stainless steel
Color :
Blue or custom
Mute :
Yes
Condition :
New
Configuration :
Stationary
Description

Environment protection Water Lubricated High pressure oil free Air Compressor

Product characteristics:

High efficiency and energy saving

For new machine, energy saving 15%-20% compared with piston air compressor.

After the wear of piston ring and cylinder body, energy saving 30%-40% compared with piston air compressor. The saved electric charges for 2 years operation equals to the machine’s purchase cost.

Box type design, no vibration, low noise, small size

Fewer consumable parts, less cost

Environment, oil-free design, ISO08573-1 oil-free certification

Isothermal compression, low exhaust temperature, low water content of compressed air

Technical parameters of medium pressure water-lubricated oil-free screw air compressor

Model Work pressure FAD Power Noise Weight

Cooling fan

power

 Dimension

Compressed Air

Outlet Diameter
L×W×H
MPa Psi m³/min cfm kW HP dB(A) kg T/h mm
CM75G 2.0-4.0 290-580 6.3 222 75 100 70 2100 18 2750×1250×1480 DN32
CM75GPV 2.0-4.0 290-580 2.5-6.3 88-222 37 50 70 2250 18 2000×1900×1480 DN32
37 50
CM90G 2.0-4.0 290-580 8.2 290 90 123 72 2580 21 3000×1350×1540 DN32
CM110GPV 2.0-4.0 290-580 3.3-8.2 117-290 55 75 72 2450 21 2500×2000×1550 DN32
55 75
CM110G 2.0-4.0 290-580 10.2 360 110 150 72 2630 24 3000×1350×1540 DN32
CM130GPV 2.0-3.0 290-435 5.4-13.5 191-477 55 75 75 3000 35 2500×2000×1550 DN32
75 100
CM150GPV 2.0-4.0 290-580 5.4-13.5 191-477 75 100 75 3100 35 2500×2000×1550 DN32
75 100
CM200GPV 2.0-4.0 290-580 7.1-17.8 251-629 90 120 75 3850 45 2760×2250×1670 DN32
110 150
CM242GPV 2.0-4.0 290-580 9.6-24.0 339-847 110 150 75 3950 50 2760×2250×1670 DN40
132 180
CM320GPV 2.0-4.0 290-580 12.6-31.5 445-1113 160 220 85 5100 70 3800x2100x2250 DN40

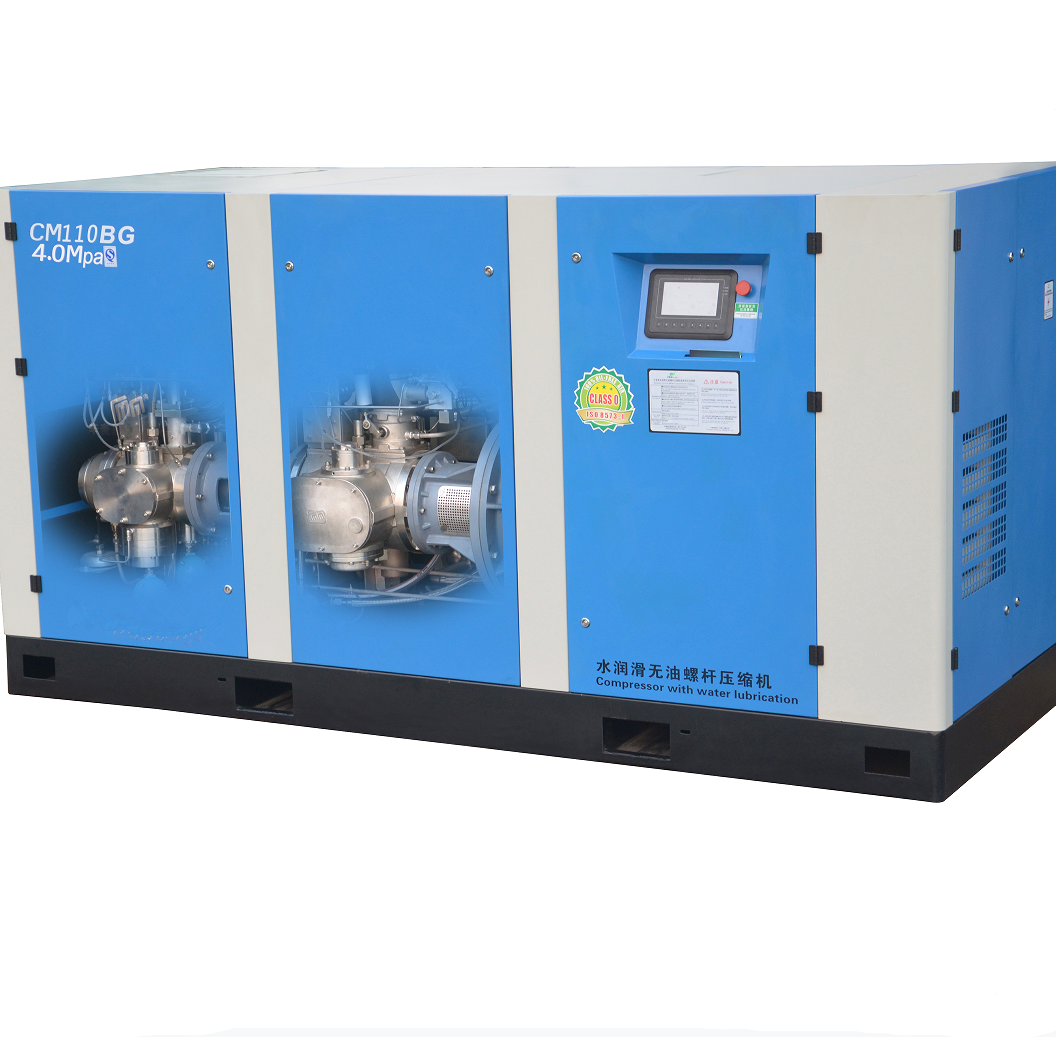

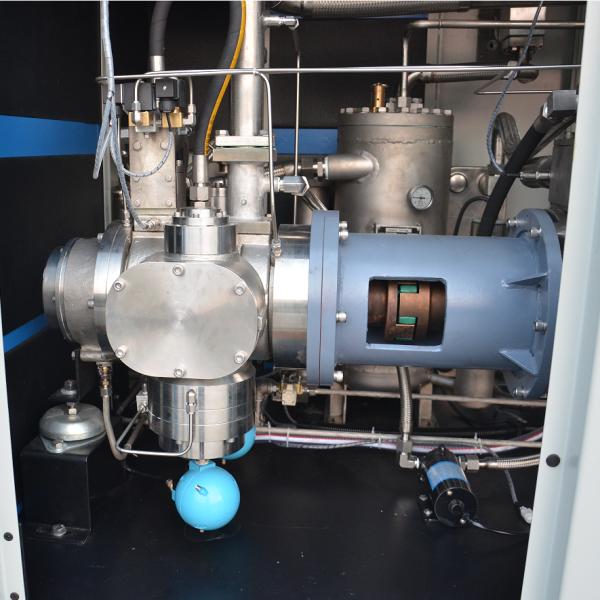

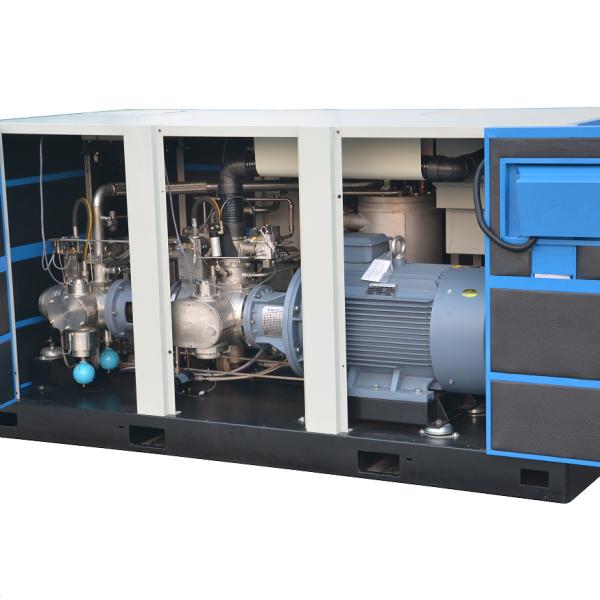

Products detailed pictures:

Environment Protection High Pressure Oil Free Air Compressor Water LubricatedEnvironment Protection High Pressure Oil Free Air Compressor Water LubricatedEnvironment Protection High Pressure Oil Free Air Compressor Water Lubricated
