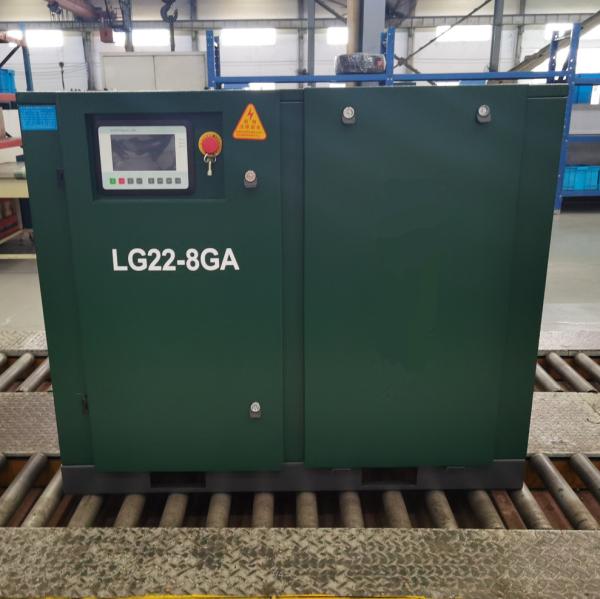

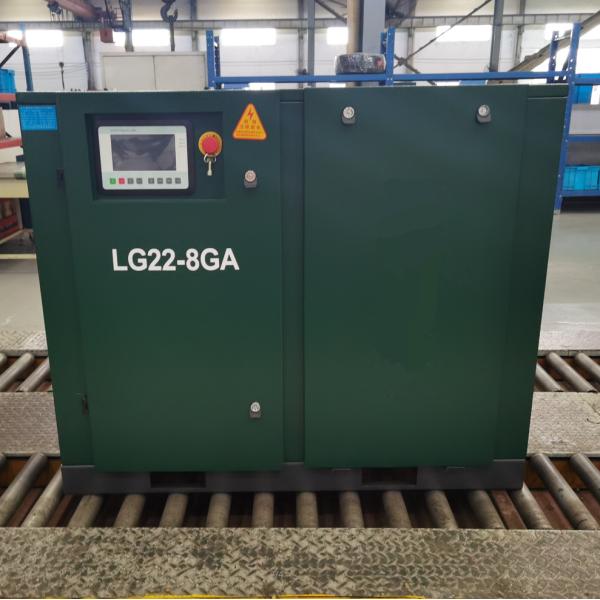

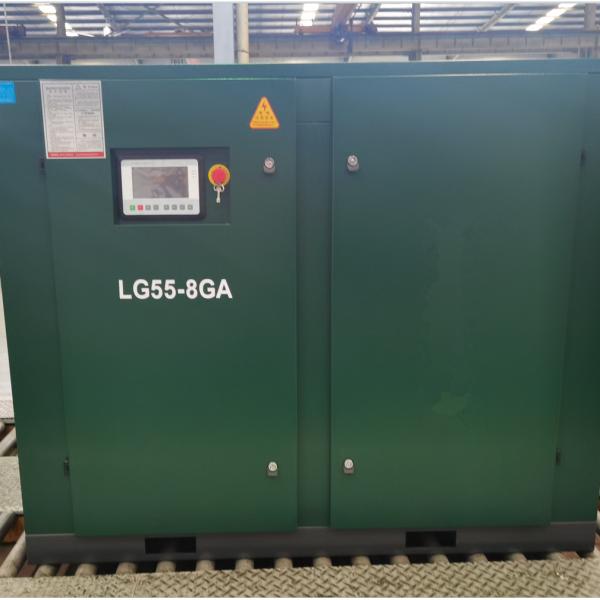

Electric Air Compressor Screw Normal Pressure Screw Industrial Air Compressor
Advantages of LG series
1.Low Cost a.The system adopts 0-100% displacement stepless regulation.
b.When the air consumption decreases, the air discharge decreases, and the current of the motor also decreases. c.Excellent energy saving effect.
2.Quality
a.Super normal cooling system design, especially suitable for Asian high temperature, high humidity environment.
b.Excellent vibration isolation technology and noise reduction measures.
3.Rotor
Our single- stage rotary screw air end is engineered for its durability. Larger rotors allows for bigger bearings, 30%-50% slower rotor speeds results in less power consumption,lower sound levels and reduced maintenance cost.
Parameters of Electric Air Compressor Screw Normal Pressure
| Mode | Pressure
MPa | Capacity
m3/min | Power
kW | Dimension
mm |
| LG-1.2/8 | 0.8 | 1.2 | 7.5 | 900×700×1040 |
| LG-1.0/10 | 1.0 | 1.0 |
| LG-0.8/13 | 1.3 | 0.8 |
| LG-1.7/7 | 0.7 | 1.7 | 11 | 1060×800×1230 |
| LG-1.7/8 | 0.8 | 1.7 |
| LG-1.5/10 | 1.0 | 1.5 |
| LG-1.2/13 | 1.3 | 1.2 |
| LG-2.4/7 | 0.7 | 2.4 | 15 | 1060×800×1230 |
| LG-2.4/8 | 0.8 | 2.4 |
| LG-2.2/10 | 1.0 | 2.2 |
| LG-1.7/13 | 1.3 | 1.7 |
| LG-3/8G | 0.8 | 3 | 18.5 | 1420×850×1110 |
| LG-3/7 | 0.7 | 3 | 1080×880×1415 |
| LG-3/8 | 0.8 | 3 |
| LG-2.7/10 | 1.0 | 2.7 |
| LG-2.3/13 | 1.3 | 2.3 |
| LG-3.6/8G | 0.8 | 3.6 | 22 | 1420×850×1110 |
| LG-3.6/7 | 0.7 | 3.6 | 1080×880×1415 |
| LG-3.6/8 | 0.8 | 3.6 |
| LG-3.2/10 | 1.0 | 3.2 |
| LG-5.2/7 | 0.7 | 5.2 | 30 | 1300×1100×1650 |
| LG-5/8 | 0.8 | 5 |
| LG-4.5/10 | 1.0 | 4.5 |
| LG-3.7/13 | 1.3 | 3.7 |
| LG-6.5/7G | 0.7 | 6.5 | 37 | 1630×910×1220 |
| LG-6.2/8G | 0.8 | 6.2 |
| LG-6.5/7 | 0.7 | 6.5 | 1300×1100×1650 |
| LG-6.2/8 | 0.8 | 6.2 |
| LG-5.6/10 | 1.0 | 5.6 |
| LG-4.8/13 | 1.3 | 4.8 |
| LGB-6.0/8 | 0.8 | 6.0 |
| LGB-5.6/10 | 1.0 | 5.6 |
| LGB-4.8/13 | 1.3 | 4.8 |
| LG-7.4/7G | 0.7 | 7.4 | 45 | 1778×1000×1300 |
| LG-7.4/7 | 0.7 | 7.4 | 1300×1100×1650 |
| LG-7.1/8 | 0.8 | 7.1 |
| LG-6.5/10 | 1.0 | 6.5 |
| LG-5.6/13 | 1.3 | 5.6 |
| LG-10.5/7G | 0.7 | 10.5 | 55 | 1950×1160×1550 |
| LG-10/8G | 0.8 | 10 |
| LG-7.5/13G | 1.3 | 7.5 |
| LG-8.7/10 | 1.0 | 8.7 | 1620×1230×1670 |
| LG-7.5/13 | 1.3 | 7.5 |
| LGB-10/8 | 0.8 | 10 | 1500X1250X1566 |
| LGB-8.5/10 | 1.0 | 8.5 |
| LG-13/8G | 0.7 | 13 | 75 | 2440×1160×1620 |
| LG-10/10G | 1.0 | 10 |
| LG-12/10G | 1.0 | 12 |
| LG-10/13 | 1.3 | 10 | 1580X1320X1646 |
| LGB-13/8 | 0.8 | 13 |
| LGB-12/10 | 1.0 | 12 |
| LG-16.5/7G | 0.7 | 16.5 | 90 | 2560×1300×1620 |
| LG-16/8G | 0.8 | 16 |
| LG-14/10G | 1.0 | 14 |
| LG-12/13G | 1.3 | 12 |
| LG-20/7G | 0.7 | 20 | 110 | 2760×1340×1710 |
| LG-20/8G | 0.8 | 20 |
| LG-16/10G | 1.0 | 16 |
| LG-13/13G | 1.3 | 13 |
| LG-22/8G | 0.8 | 22 | 132 | 2760×1340×1710 |
| LG-20/10G | 1.0 | 20 |
| LG-16/13G | 1.3 | 16 |
| LG-28/7G | 0.7 | 28 | 160 | 2860×1510×1810 |
| LG-27/8G | 0.8 | 27 |
| LG-23/10G | 1.0 | 23 |
| LG-20/13G | 1.3 | 20 |
| LG-30/8G | 0.8 | 30 | 185 | 3400×2100×2100 |
| LG-21/13G | 1.3 | 21 | 2860×1510×1810 |
| LG-35/8G | 0.8 | 35 | 200 | 3400×2100×2100 |
| LG-30/10G | 1.0 | 30 |
| LG-27/13G | 1.3 | 27 |
