Digital Automotive Tachometer LED Display 2 Inch 52mm PM Stepper Motor Gauges
Digital Automotive Tachometer LED Display 2 Inch 52mm PM Stepper Motor Gauges
Digital Automotive Tachometer LED Display 2 Inch 52mm PM Stepper Motor Gauges
Digital Automotive Tachometer LED Display 2 Inch 52mm PM Stepper Motor Gauges
Digital Automotive Tachometer LED Display 2 Inch 52mm PM Stepper Motor Gauges
Digital Automotive Tachometer LED Display 2 Inch 52mm PM Stepper Motor Gauges
Digital Automotive Tachometer LED Display 2 Inch 52mm PM Stepper Motor Gauges
Digital Automotive Tachometer LED Display 2 Inch 52mm PM Stepper Motor Gauges
Digital Automotive Tachometer LED Display 2 Inch 52mm PM Stepper Motor Gauges
Digital Automotive Tachometer LED Display 2 Inch 52mm PM Stepper Motor Gauges
Specifications
Brand Name :
SINCO TECH
Model Number :
634
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Payment Terms :
D/A, L/C, D/P, T/T, , MoneyGram,Paypal
Supply Ability :
5000 PCS PER MONTH
Delivery Time :
20

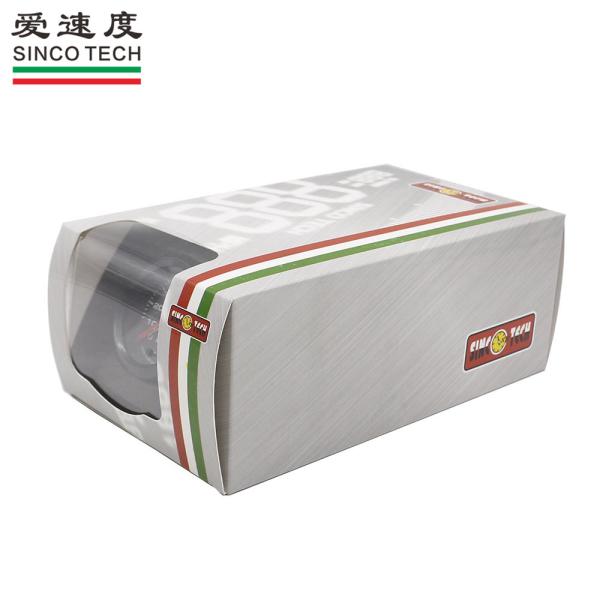

Packaging Details :
Color Box,21*9*12CM,0.5KG
Size :
52mm/2Inch
Package :
21*9*12 CM
Motor :
Stepper motor
Color :
7 Colors
Material :
ABS/Aluminum
Application :
12V Vehicle
Description

2 Inch 52mm Automoitve Race Car Gauge LED Display PM Motor Gauge

Description :

  • Brand:SINCO TECH
  • Gauge Model:RPM,Water Temp,Oil Temp,Oil Press,Boost,Volts,AFR,EXT Temp.
  • Material: ALUMINUM

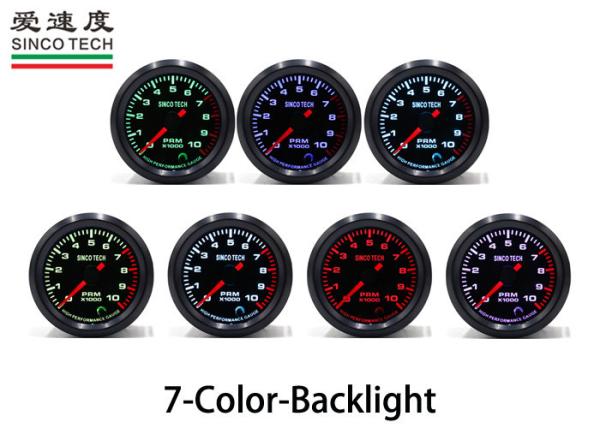

  • Backlight: White, Red, Green, Yellow, Purple, Blue, Pale blue (7-color switch)
  • Application:12V Vehicle
  • Drive Voltage:DC5V
  • Drive Current :30mA MAX
  • Drive Mode:1/64 MICROSTEP
  • Linearity: 0.5° MAX
  • Hysteresis :1.2°MAX
  • Operating Temp:-40 ℃～105℃(Humidity 20%～80%)
  • Storage Temp: -40 ℃～105℃
  • Working Angle :340 °
  • Zero Position Accuracy: CCW:-1.5°～ 0.5°
  • Holding Torque :1.0 mNm MAX
  • Pull In Torque:0.6 mNm MAX
  • Detent Torque: 0.29 mNm MAX
  • Stud Strength: 28.4 mNm MIN
  • Winding Resistance : 180x (1± 7%)Ω
  • Winding Inductance :100 mH REF
  • Insulation Resistance : 10MΩ MIN
  • Dielectric Strength : 3 mA MAX
  • Class Of Insulation: CLASS B
  • Rotor Inertia : 0.1 G* CM2 REF
  • Acoustic Noise:22dbA MAX
  • Life: 2000 hr MIN
