2.5 Inch Combination Race Car Digital Dashboard Gauges OLED Display
2.5 Inch Combination Race Car Digital Dashboard Gauges OLED Display
2.5 Inch Combination Race Car Digital Dashboard Gauges OLED Display
2.5 Inch Combination Race Car Digital Dashboard Gauges OLED Display
Specifications
Brand Name :
SINCO TECH
Model Number :
DO907
Certification :
ISO9001 / CE
Place of Origin :
Made In China
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
, MoneyGram,PAYPAL, T/T
Supply Ability :
1000 pcs per month
Delivery Time :
In 7days
Packaging Details :
SINCOTECH Color Box
product name :
advance zd dashboard
type :
harness wire
condition :
new
application :
universal
voltage :
12v
REVS range :
11000 MAX
Description

2.5 Inch Sinco Tech Combination Race Car Dashboard OLED Display Advance ZD(907)

Brand

SINCO TECH

Display

Digital

Operating Voltage

9V-16V

Application

All 12v Vehicle

Part List

Display,the Data Processing Unit,Types Of Sensors,Installation Accessories ,Instructions manual.

Package Size

23*15*12 cm

Function Display

1 Coolant Temp(℃)

2 Speed

3 The ODO

4 The TRIP

5 Engine RPM

6 Air Fuel Ratio(％)

7 EXT Temp (℃)

8 Oil Pressure (PSI)

9 Oil Temp(℃)

10 Turbo(PSI)

11 0-100KM/H,0-200KM/H Testing Mode

Characters:

1-Universal used in 12v cars
2-The lowest price with best quality
3-Australia sinco tech pty ltd “SINCO TECH” brand authorizing .

4-Standard materials according to technical drawing

5-ISO9001 , CE certificates.

6-Long lasting working life time.

7-high performance and reliability
8-Ensure QUALITY after sale
9-0-100km/h , 0-200km/h testing mode
10-Professional factory with 30 years’ producing Experience

2.5 Inch Combination Race Car Digital Dashboard Gauges OLED Display2.5 Inch Combination Race Car Digital Dashboard Gauges OLED Display2.5 Inch Combination Race Car Digital Dashboard Gauges OLED Display

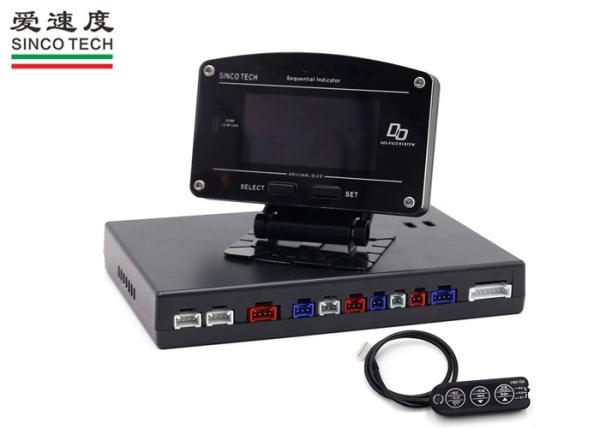

DO907 PRODUCT INTRODUCTION

A LED Light

B Screen

C Set Key

C Select Key

E Light Sensor

(1) Display

(2) Display Stand

(3) Control Key

(4) Oil Pressure Sensor

(5) Boost Sensor

(6) Water/Oil Temp Sensor

(7) Boost Pipe

(8) EXT.Temp Sensor

(9) Data Processing Unit

(10) Connection Wire


2.5 Inch Combination Race Car Digital Dashboard Gauges OLED Display

The connection from sockets 1 to 11 is respectively:

⑴ Instrument display interface

⑵ Instrument display interface

⑶ Power supply input (red～+12V black～grounding white～ACC yellow～headlight+12V)

⑷ Pressure increase sensor (red～sensor+ ,green～signal, black～sensor-)

⑸ Oil pressure sensor (red～sensor+, green～signal, black～sensor-)

⑹ Air/fuel ratio sensor (red～sensor+, green～signal, black～sensor-)

⑺ Oil temperature sensor ( green～signal, black～grounding)

⑻ Water temperature sensor ( green～signal, black～grounding)

⑼ Exhaust gas temperature sensor(green～sensor+, orange～sensor-)

⑽ Speed signal (green line) and vehicle speed sensor (orange line)

⑾ Control key interface

2.5 Inch Combination Race Car Digital Dashboard Gauges OLED Display2.5 Inch Combination Race Car Digital Dashboard Gauges OLED Display
