Precision Top Hat Roll Forming Machine Cutting Non Stop High Speed
Precision Top Hat Roll Forming Machine Cutting Non Stop High Speed
Precision Top Hat Roll Forming Machine Cutting Non Stop High Speed
Precision Top Hat Roll Forming Machine Cutting Non Stop High Speed
Specifications
Brand Name :
XIAMEN FUMING
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Delivery Time :
50 work days
Packaging Details :
Roll forming machine without outer packing, shipped by container
Cutting Tolerance :
±2mm
Cutting Type :
Hydraulic Cutting
Product Name :
Roofing Truss/Batten/Top Hat Roll Forming Machine
Transmission :
Gear/sprocket
Roller Stations :
10 Stations
Forming Speed :
40m/min
Roller Material :
45# Steel, heat treatment, hard chrome coated
Material :
GI
Description

40m/Min Non-Stop Cutting Top Hat Roll Forming Machine

Product Description:

This Roll Forming Machine is designed to produce roofing truss/batten/top hat profiles with precision and efficiency. The machine is equipped with 45# steel rollers that have been heat treated and hard chrome coated for added strength and durability. It features 10 stations for forming the profile and is powered by a 5.5KW driving motor. The cutting length is adjustable to suit different needs. With its robust construction and superior performance, this machine is the perfect choice for creating top hat profiles.

Features:

  • Product Name: Roofing Truss/Batten/Top Hat Roll Forming Machine
  • Roller Stations: 10 Stations
  • Cutting Type: Hydraulic Cutting
  • Power: 5.5KW
  • Cutting Length: Adjustable
  • Roller Material: 45# Steel, Heat Treatment, Hard Chrome Coated

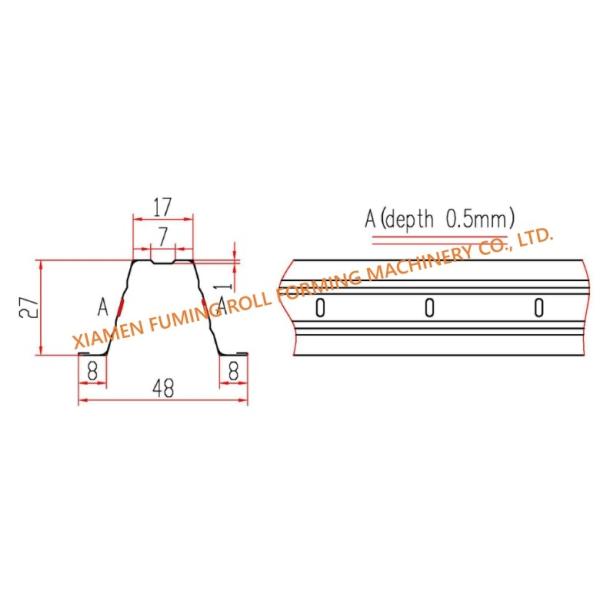

Drawing:

Precision Top Hat Roll Forming Machine Cutting Non Stop High Speed

Technical Parameters:

ROLL FORMING MACHINE FOR ROOFING TRUSS/BATTEN PROFILE
Material Specification
Thickness 0.3mm-0.6mm
Material GI
Yield Strength 450MPa~550MPa
Machine Components
Roll Forming Machine
Driving system Gear/sprocket
Forming station 11 stages to form
Roller material 45# steel, heat treatment, CNC lathes, hard chrome coated
Main motor 5.5KW, frequency speed control
Production speed Approx. 40m/min
Hydraulic Non-stop Cutting Device
Ball screw driving, linear rail guiding, servo motor to drive: 2.0KW
Cutting type No blanking cut
Cutting tool material Cr12, heat treatment
Hydraulci pump motor 5.5KW
PLC Control System
Function Control quantity and cutting length automatically
PLC Siemens
Touch screen Siemens
Inverter Delta
Encoder Omron
Cut-to-length tolerance ≤±2 mm
Control Voltage 24V

Applications:

Are you in search of a roofing truss/batten/top hat roll forming machine that can meet your requirements? Look no further than the one from XIAMEN FUMING. This roll forming machine is the ideal choice for producing high speed and high-precision roofing truss/batten/top hat.

Support and Services:

Technical Support and Service for Roofing Truss/Batten/Top Hat Roll Forming Machine

We provide comprehensive technical support and service for Roofing Truss/Batten/Top Hat Roll Forming Machine. Our team of experienced engineers and technicians can help you achieve optimal usage of the machine and maximize its performance.

  • We provide professional installation and commissioning services.
  • We provide remote and on-site technical support.
  • We provide troubleshooting services and respond to customer inquiries.
  • We provide preventive maintenance services to keep the machine running smoothly.
  • We provide spare parts supply and repair services.
  • We provide training and technical guidance.

If you have any questions or need technical support for Roofing Truss/Batten/Top Hat Roll Forming Machine, please don't hesitate to contact us. We are here to help you.

FAQ:

Q 1: How can customers be assured that XIAMEN FUMING will deliver qualified roll forming machines?

A 1: Customers can send their technician or entrust a third party to XIAMEN FUMING’s factory to do machine inspection before delivery.

XIAMEN FUMING can send their engineers to the buyer’s factory for machine installation and commissioning.

Our roll forming machine is guaranteed for one year in correct operation and maintenance.

Q 2: How does the customer install the machine when it arrives?

A 2: Our engineers will go to your factory for machine installation and commissioning once you get your machine ready(including electricity, testing material, hydraulic oil, auxiliary staff, transport and lifting device, etc.), they will instruct your technician how to operate the machine. Online supports including video call will be provided if our engineers cannot visit your place because of pandemic.

Q 3: Does XIAMEN FUMING provide customized roll forming machines?

A 3: Yes, we design and make roll forming machines according to the latest market trend and the specific requirements suggested by customers.
