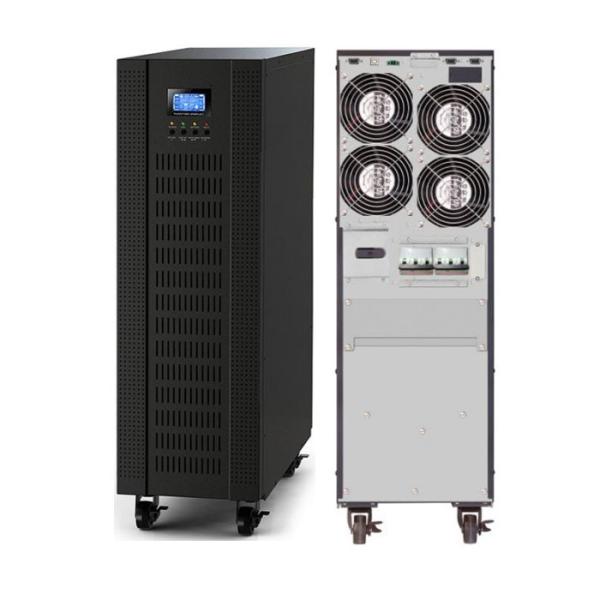

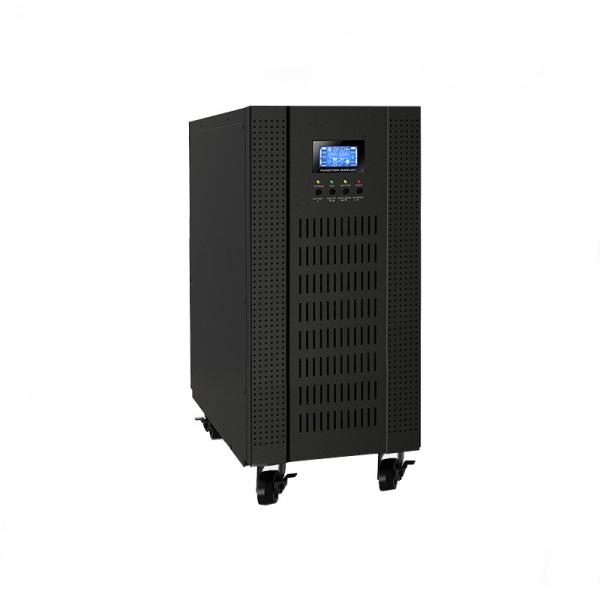

three Phase 27000W 30000VA High Frequency Online UPS Uninterruptible Power Supply
three Phase 27000W 30000VA High Frequency Online UPS Uninterruptible Power Supply
three Phase 27000W 30000VA High Frequency Online UPS Uninterruptible Power Supply
three Phase 27000W 30000VA High Frequency Online UPS Uninterruptible Power Supply
Specifications
Place of Origin :
Guangdong, China
Brand Name :
ZGD
Model Number :
ZGD33-30K (L)
Supply Ability :
10000 Piece/Pieces per Month
Price :
$400.00/Pieces 1-9 Pieces
MOQ :
1
Payment Terms :
Western Union, L/C, T/T
Delivery Time :
15-30 work days
Phase :
Three Phase
Protection :
Lightning
Weight :
164kg
Type :
On-line
Application :
COMPUTER
Product name :
Online UPS Systems
Capacity :
30KVA
Wave Form :
Pure Sine Wave
Battery Type :
Lead Acid Battery
Color :
Black
Certificate :
CE,ULRohs,GS
Input voltage :
305-478VAC
Display :
LCD
Name :
High Frequency Ups Power
Products :
Three Phase Online UPS
Port :
Shenzhen
Description
30KVA 3 Phase High Frequency Online UPS System Double-Conversion Uninterruptible Power Supply
True double-conversion
DSP technology guarantees high performance
Output power factor 0.9
Wide input voltage range (110-300 VAC)
Active power factor correction in all phases
50Hz/60Hz frequency converter mode
Eco mode operation for energy saving (ECO)
Accepts dual power inputs
Emergency power off function (EPO)
Generator compatible
SNMP+USB+RS-232 multiple communications
3-stage extendable charging design for optimized battery performance
Adjustable battery numbers
Maintenance bypass available
Optional N+X parallel redundancy
Optional isolation transformer offers full isolation and complete common mode noise rejection
MODEL GH33-30K (L)
PHASE 3 phase in / 3 phase out
CAPACITY 30000VA / 27000W
INPUT
Nominal Voltage 3 x 400 VAC (3Ph+N)
Voltage Range 305-478 VAC (3-phase) @ 100% load
190-520 VAC (3-phase) @ 50% load
Frequency Range 46~54 Hz or 56~64Hz
Power Factor ≥ 0.99 @ 100% load
OUTPUT
Output Voltage 3 x 400 VAC (3Ph+N)
AC Voltage Regulation ± 1%
Frequency Range 46~54Hz or 56~64Hz
Frequency Range 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio 3:1 (max.)
Harmonic Distortion ≤ 2 % THD (Linear Load) ≤ 5 % THD (Non-linear Load)
Transfer Time zero
Waveform (Batt. Mode) Pure Sine Wave
EFFICIENCY
AC Mode 90%
Battery Mode 89%
BATTERY
Standard Model Battery Type 12 V / 9 AH
Numbers 3*18/20 pcs
Recharge Time 9 hours recover to 90% capacity
Charging Current 4A
Charging Voltage 273 VDC ± 1%(based on 20 pcs batteries)
Long-run Model Battery Type Depending on the capacity of external batteries
Numbers
Charging Current 12A
Charging Voltage 273 VDC ± 1%(based on 20 pcs batteries)
INDICATORS
LCD Panel UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
ALARM
Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload Sounding twice every second
Fault Continuously sounding
PHYSICAL
Standard Model Dimension 815*300*1000
Net Weight 234kg
Long-run Model Dimension 815*250*826
Net Weight 64kg
ENVIRONMENT
Operation Humidity 0-95 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 65dB @ 1 Meter
MANAGEMENT
Smart RS-232/USB Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC
Optional SNMP Power management from SNMP manager and web browser
