Milling Type Orbital Double Blades Cold Saw Cut Off Machine For Large Size Pipe Cut Off
Milling Type Orbital Double Blades Cold Saw Cut Off Machine For Large Size Pipe Cut Off
Milling Type Orbital Double Blades Cold Saw Cut Off Machine For Large Size Pipe Cut Off
Milling Type Orbital Double Blades Cold Saw Cut Off Machine For Large Size Pipe Cut Off
Milling Type Orbital Double Blades Cold Saw Cut Off Machine For Large Size Pipe Cut Off
Milling Type Orbital Double Blades Cold Saw Cut Off Machine For Large Size Pipe Cut Off
Milling Type Orbital Double Blades Cold Saw Cut Off Machine For Large Size Pipe Cut Off
Milling Type Orbital Double Blades Cold Saw Cut Off Machine For Large Size Pipe Cut Off
Specifications
Brand Name :
TGMCO
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD150,000-200,000
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per year
Delivery Time :
4 months
Packaging Details :
Wood
NAME :
Steel Band Orbital Cold Saw Cut Off Machine For Tube Mill Auxiliary Equipment 45m Min
Tube Size :
Ø 60 – 762mm; □ 47 – 600mm
Thickness :
2.5-25mm
Speed :
25-45m/min
Description

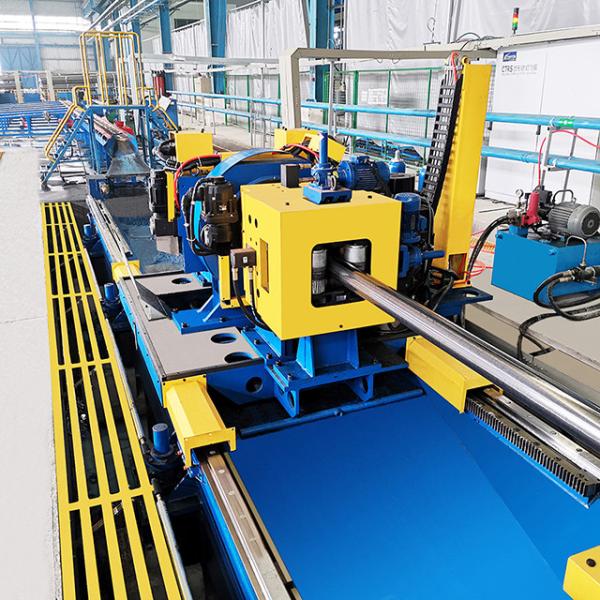

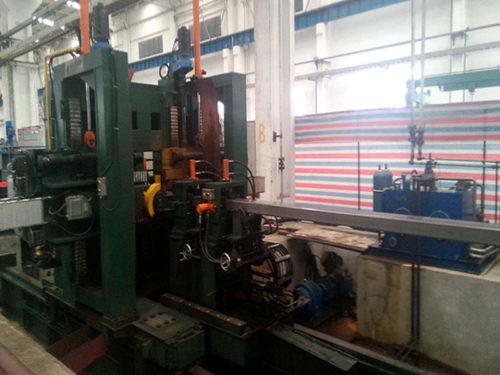

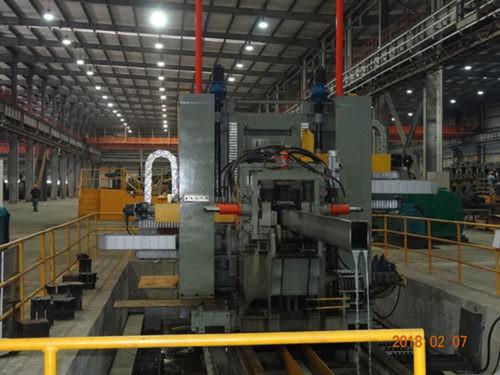

Milling Type Orbital Cold Saw Cut Off Machine for Tube Mill / Steel Pipe Making Machine

Welcome to Taicang Global Machinery Co., Ltd

At Global Machinery, we provide Tube Mill, Roll Forming Machine, Slitting & Cut to length Line and corresponding components, and meet your customized requirements. Contact us right now!

To produce medium and large sized tube and pipe, the requirements of quality of cutting surface and accuracy of joint surface are highly critical. The milling type orbital cold saw cut off machine comes to the role to meet the manufacturer highest requirements.

This state of the art solution for milling type orbital cold saw cut off that is able to cut heavy section tube, either round or shaped, in various grade of steel, by quick and effective cold saw process. Two tungsten carbide-tipped (TCT) blades are applied to ensure a clean cutting end without the need for any end facing. The orbital trajectory is obtained by combining two independent axes for each blade, like in CNC milling machine, which is simple and reliable. The cutting process of milling type orbital flying cutoff machine can be either in rectangular coordinate where the profiling curve generated in X and Y movement, or in polar coordinate where the orbital curve generated in ϕ and r dimensions. The machine is totally numerically controlled and user friendly. Once programmed, they can operate without requiring constant presence of operator at the console.

The movement of the traveling carriage is controlled by a rack and pinion accelerator that provides the necessary thrust force to perform the cutting cycle in accordance with the established performance parameters.

Milling Type Orbital Double Blades Cold Saw Cut Off Machine For Large Size Pipe Cut Off

Milling Type Orbital Double Blades Cold Saw Cut Off Machine For Large Size Pipe Cut Off

Main Specification

Highlights

  • Proved for heavy application for cutting tube, pipe, sections and rails
  • Orbital milling type cutoff for a beautiful cutting face and long lasting blades
  • Computerized length control
  • Suited well to various grade of material
  • HMI provide with real time status of operation
  • Ensure a minimum downtime and smooth production
  • Remote monitoring function enabling the on-site operation status being assessed at remote locations
  • Full automation without need for constant operator presence at control table
Model No. Tube Size (mm) Thickness (mm) Length (m) Tolerance (mm) Speed (m/min)
XFJ130 Ø 60 – 130 2.5 – 8.0 5.0 – 18.0 ≤ ±2 Max. 45
□ 47 – 102
XFJ165 Ø 89 – 165 2.5 – 10.0 5.0 – 18.0 ≤ ±2 Max. 45
□ 70 – 130
XFJ219 Ø 114 – 219 3.5 – 12.0 5.0 – 18.0 ≤ ±2 Max. 40
□ 90 – 170
XFJ273 Ø 165 – 273 4.0 – 12.7 5.0 – 18.0 ≤ ±2 Max. 38
□ 130 – 215
XFJ325 Ø 165 – 325 5.0 – 14.0 5.0 – 18.0 ≤ ±2 Max. 35
□ 130 – 255
XFJ406 Ø 219 – 406 6.0 – 16.0 5.0 – 18.0 ≤ ±2 Max. 35
□ 170 – 319
XFJ508 Ø 219 – 508 6.0 – 18.0 5.0 – 18.0 ≤ ±2 Max. 30
□ 170 – 400
XFJ630 Ø 219 – 630 6.0 – 20.0 5.0 – 18.0 ≤ ±2 Max. 30
□ 170 – 495
XFJ660 Ø 325 – 660 6.0 – 22.0 5.0 – 18.0 ≤ ±2 Max. 30
□ 255 – 520
XFJ711 Ø 325 – 711 8.0 – 22.0 5.0 – 18.0 ≤±2 Max. 25
□ 255 – 560
XFJ762 Ø 325 – 762 8.0 – 25.0 5.0 – 18.0 ≤±2 Max. 25
□ 255 – 600
