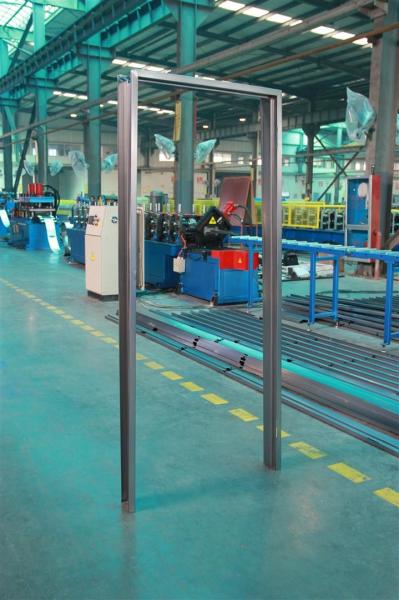

Door Frame Roll Forming Machine with Fly Saw Cutting-off Device

A. Process Flow

Decoiler--Feeding--Leveling—-Forming---Measuring & Cutting---Out table

B. Profile Drawing

C. Main Technical Parameters

1. Manual Decoiler

• Passive decoiling, manual expansion
• Coil OD: Φ1600mm
• Coil ID: Φ500-600mm
• Coil width: Max 600 mm
• Coil weight: 1.5 tons

2. Main roll forming device

• Shaft material: 45# steel, outer diameter65mm
• Roller material: GCR15 bearing steel HRC58-60°
• Flatting roller: 35
• wire-electrode cutting structure , Archway and Chain transmission
• Forming speed:3m/min
• Main motor power:15kw
• Machine weight: more than 8T
• Voltage: 380V 50Hz 3phase
• Final products used interlock design, not welding.

3. Fly sawing cutting device

4. Electrical control system

• Screen: Touch screen
• PLC: Panasonic
• Automatic length measurement
• Automatic quantity measurement
• Computer is used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved
• 7.6 Length inaccuracy can be amended easily

5. Exit table

• One out table with one support roller
• Quantity: 5

FAQ
1) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided). We have cooperated with many customers all over the world with high market reputation, no worries.
2) Q: How to choose the Tube Mill Line?
A: You have to inform us following details:
- The pipe material
- Round pipe range
- Square pipe range
- Rectangle pipe range
- Wall thickness range
- The pipe usage
3) Q: How to choose the Roll Forming Machine?
A: You have to inform us following details:
- Coil material
- Coil thickness
- Coil weight
- Cutting type
- Profiles drawings
- Other special attention
4) Q: How to choose the Slitting Line & Cut to Length line?
A: You have to inform us following details:
- Coil material
- Coil thickness
- Coil width
- Coil weight
- Finished sizes
- Other special attention
55) Q: Where is the nearest airport to your company?
A: Shanghai Putong or Hongqiao Airport.
6) Q: How about your service?
A: Before sales:
- Technical Support: TGMCO will provide detailed technical information such as technical & commercial offer, machine photos, running video, layout, operation manual, and show you working machines in our factory.
- Apply Visa: TGMCO will provide officially invitation letter to apply Visa in china embassy as authority procedures and requirements.
After sales: TGMCO provides comprehensive After Sales Support and Service to meet our customer need.
- Drawings: Provide the foundation drawing, electric scheme and wiring diagram, hydraulic drawing, pneumatic & electric pipeline drawing and other drawings requested by customer.
- Installation and commissioning: TGMCO will send our technicians to customer's workshop for supervision of installation and commission
Training of Customers' technician/workers during commission
- Breakdown Support: We offer 1 year warranty service for main crucial components except consumables
Inform immediate technical assistance and advice to customer by phone or e-mail.
Skilled and experienced engineers are capable of dealing with any type of breakdowns.
Technical service work performed in Customer's site if required.
Urgently supply mechanical or electronic components.
Fast supply of spare parts and wearing parts to cover foreseeable requirements
