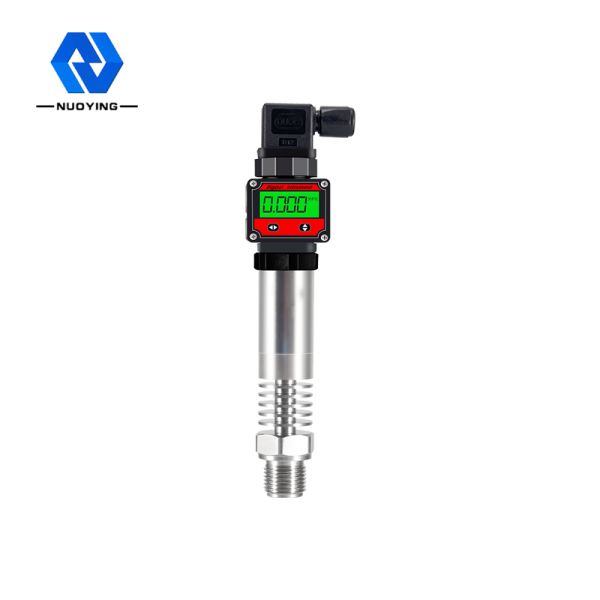

Thread 93420 Liquid Pressure Sensor Transmitter Digital Display
Thread 93420 Liquid Pressure Sensor Transmitter Digital Display
Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NP-93420-IX
Certification :
CE
Place of Origin :
Xi'an, Shaanxi,China
MOQ :
1
Price :
Please Contact Me
Payment Terms :
T/T
Supply Ability :
1000 pcs/ pre month
Delivery Time :
7-15 working days
Packaging Details :
Carton, 40cm×30cm×30cm
Typical application :
Liquid, gas, steam
Product model :
NP-93420-IX
Gauge pressure :
0~5KPa~3.5MPa
Absolute pressure :
0~20KPa~35MPa
Process connection :
Thread, flange (optional)
Overload allowed :
<2 times the rated range
Seal gauge pressure :
0~7KPa~100MPa
Description

Digital Display Type Thread 93420 Pressure Sensor Transmitter

Pressure Sensor Transmitter Design Feature

◎LED, LCD, pointer, three kinds of indicator heads, on-site reading is very convenient. They can be used to measure viscous, crystalline and corrosive media.

◎Diffusion silicon pressure transmitter is used in dangerous and explosive fields. The product has the characteristics of low current, low voltage and low power consumption. It is an intrinsically safe explosion-proof product and is equipped with an explosion-proof certificate.

◎Using stainless steel material and special protective structure, and a series of protection measures such as lightning protection, anti-interference, anti-overvoltage, and over current of the amplifier circuit, it improves the ability of reliable sealing, anti-corrosion and anti-harsh working environment, and it is completely suitable for general industrial sites measurement and control needs.

Pressure Sensor Transmitter Discription

NP93420 series diffused silicon pressure sensors are all use imported chips, a new generation of pressure sensors produced after careful structural design, signal processing and assembly, and testing in strict accordance with national standards. This series of products has stable output, high sensitivity and precision, and also has good temperature characteristics and strong anti-interference ability.

Product tags

pressure sensor with display

,

omrom pressure monitor

,

pressure gauge digital display
