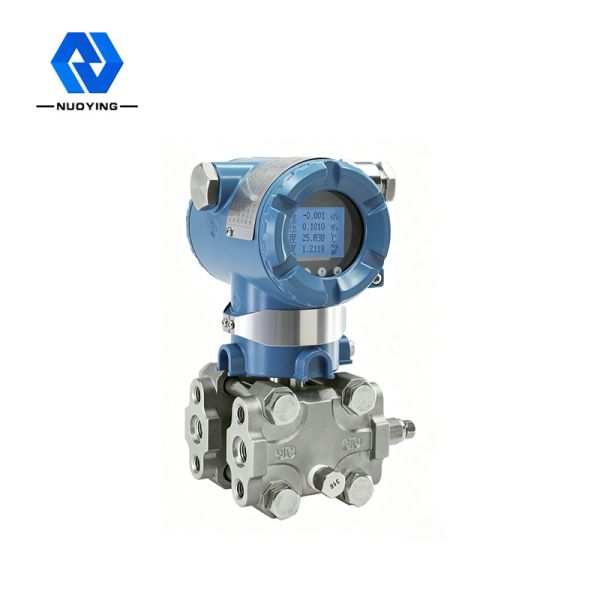

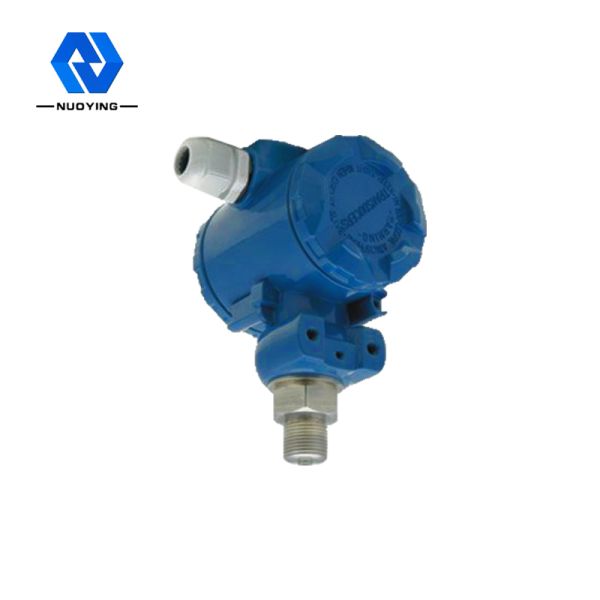

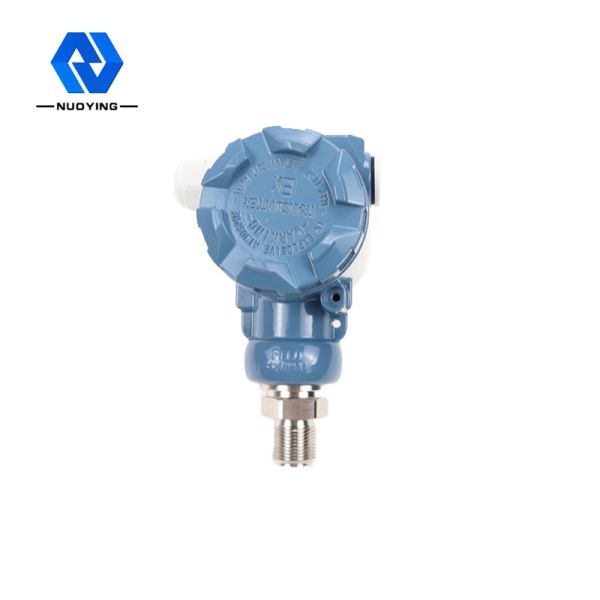

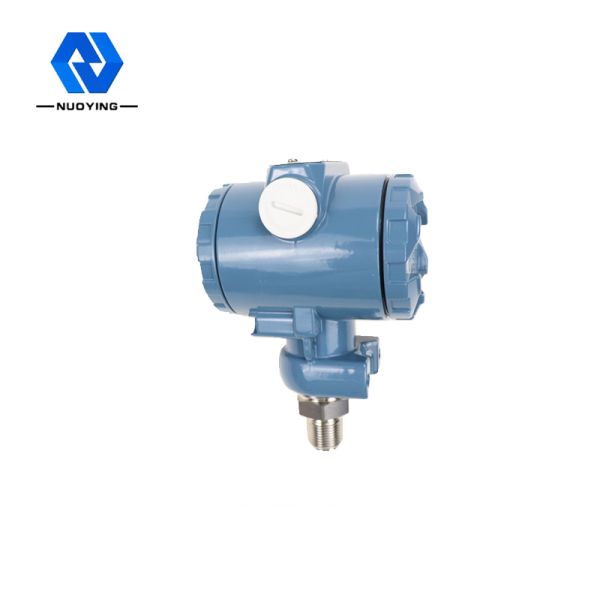

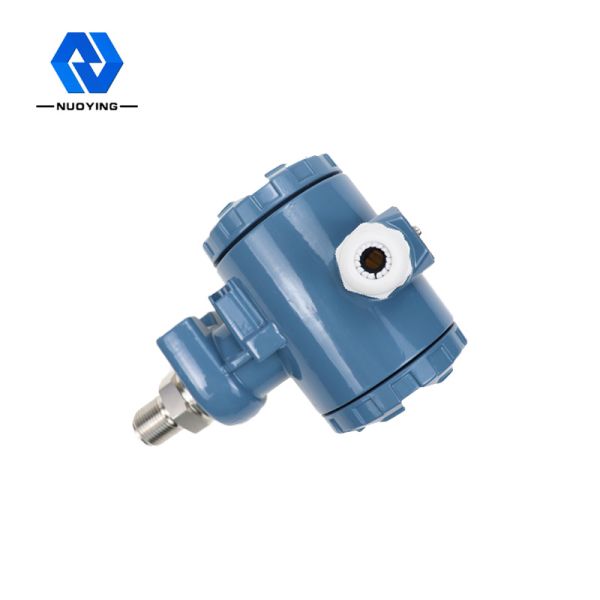

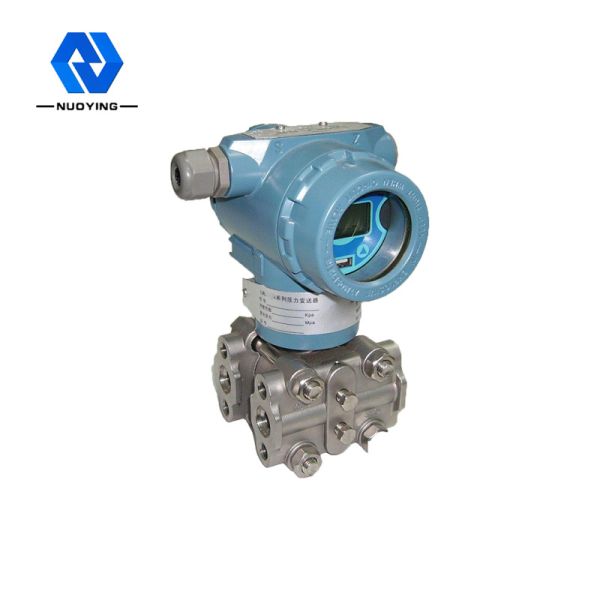

High Precision Liquid Gas Steam Pressure Transmitter 3051
High Precision Liquid Gas Steam Pressure Transmitter 3051
Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NY3051
Certification :
CE
Place of Origin :
Xi'an, Shaanxi,China
MOQ :
1
Price :
Please Contact Me
Payment Terms :
T/T
Supply Ability :
1000 pcs/ pre month
Delivery Time :
7-15 working days
Packaging Details :
carton, 60cm×30cm×30cm
Typical application :
Liquid, gas, steam
Product model :
NY3051
Filling fluid :
Silicone oil, inert oil (optional)
Diaphragm material :
316 L, Ha C alloy (customizable)
Precision grade :
Class 0.025, class 0.075, class 0.1, class 0.2
Process temperature :
-25~+125℃(> + 125 ℃ can be customized)
Ambient temperature :
-40~+85℃
Live display :
LCD optional
Description

High Precision Good Stability Liquid Gas Steam 3051 Transmitter

3051 Transmitter Working Principle

NY3051 series intelligent differential pressure/pressure transmitter has a variable capacitance sensing component, called "δ" chamber (see the figure below), and the process pressure is transmitted to the "δ" chamber through the isolation diaphragm on both sides of the "δ" chamber and the filling liquid. The central diaphragm is a tensioned elastic element, which produces a corresponding deformation displacement for the pressure difference on both sides acting on it, and this displacement is transformed into a differential capacitor formed on the capacitor plate. The differential capacitance is converted into a standard output signal by the electronic circuit.

3051 Transmitter Design Features

◎High precision and good stability;

◎With continuous self-diagnosis, linear compensation and digital fine-tuning functions;

◎It can realize on-site adjustment of zero position and span, and can also realize remote adjustment through remote hand-held communicator and computer;

◎Linear or square root output can be selected according to different applications;

◎The damping time can be set to change between 0.1~16s;

◎It can realize the conversion of pressure value units between KPa, Pa, InH2O, bar, etc.;

◎The fail-safe mode can be set by toggling the fail/safe switch;
